十吨位桥式起重机起升机构设计【全套14张CAD图纸和毕业论文】【优秀答辩资料】

收藏

压缩包内文档预览:
预览图
编号:271513    类型:共享资源    大小:1.67MB    格式:RAR    上传时间:2014-04-06 上传人:好资料QQ****51605 IP属地:江苏
45
积分
关 键 词:
10 吨位 桥式起重机 机构 设计
资源描述:

【温馨提示】 购买原稿文件请充值后自助下载。

[全部文件] 那张截图中的文件为本资料所有内容,下载后即可获得。


预览截图请勿抄袭,原稿文件完整清晰,无水印,可编辑。

有疑问可以咨询QQ:414951605或1304139763







一、题目及专题:
 1、题目  十吨位桥式起重机起升机构设计
 2、专题
二、课题来源及选题依据
   来源于生产实践。
   选题依据:工作级别M6,吊运金属工件,起重机设操作室。起重量主钩10t,跨度22.5m,起升高度16m,桥架结构材料为Q235。
三、本设计(论文或其他)应达到的要求:
   1、对以前所学知识进行检测,能不能灵活运用。
   2、深刻理解起升机构的工作原理。
   3、完成设计计算说明书(不少于10000字)。
   4、完成相关装配图,零件图(不少于3张A0图纸)。

摘 要
   起重机是用来对物料做起重、运输、装卸和安装等作业的机械设备,它可以减轻体力劳动、提高劳动生产率和在生产过程中进行某些特殊的工艺操作,实现机械化和自动化。起升机构包括电动机、制动器、减速器、卷筒和滑轮组。电动机通过减速器,带动卷筒转动,使钢丝绳绕上卷筒或从卷筒放下,以升降重物。
   本文就十吨桥式起重机起升机构做设计计算,确定起升机构传动方案,确定起升机构工作级别,对起升机构的主要部件卷筒、钢丝绳、滑轮等钢丝绳卷绕系统,电动机、联轴器、减速器等驱动装置进行设计计算,验证卷筒壁压应力,卷筒应力,确定吊钩装置构造方案,吊钩横梁,滑轮轴的计算等。对起升机构运行的过程,包括起升速度、起升和制动时间进行计算和验算。

  关键词:传动方案;卷绕系统;驱动装置;起升运行




 Abstract
   Crane is used to start heavy materials, transportation, handling and installation of machinery and equipment and other operations, which can reduce manual labor, improve labor productivity and in the production process for some special process operation, mechanization and automation. Lifting mechanism includes a motor, brake, reducer, drum and pulley. Motor through reducer, driving drum rotation, so that the wire rope around the drum or from a roll down to lift heavy loads.
   In this paper, ten tons crane hoisting mechanism to do the design calculations to determine the transmission scheme lifting mechanism, hoisting mechanism to determine the working level of the main components of the hoisting mechanism drum, wire rope, wire rope winding system pulleys, motors, United coupling, reducer drives the design calculations, validation reel wall stress, stress reel, hook device is configured to determine program, hook beams, pulley shaft calculation. Hoisting mechanism for running processes, including the lifting speed, lifting and braking time calculations and checking.

   Keywords: transmission scheme; winding system; drive; lifting operation





目录
摘 要 III
Abstract IV
目录 V
1  绪论 1
1.1 桥式起重机的简介 1
1.2 起重机械的发展 2
1.3 起重机械的特点 2
2 起升机构主要部件的设计计算 4
2.1主要参数 4

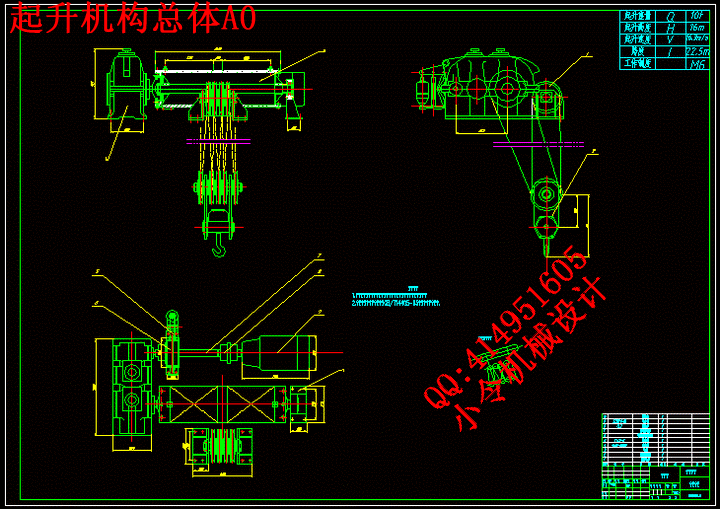

2.2确定起升机构传动方案 4
2.3 确定吊钩和滑轮组 5
2.4 钢丝绳的计算 6
2.4.1 钢丝绳所受最大拉力 6
2.4.2 钢丝绳允许的偏斜角 7

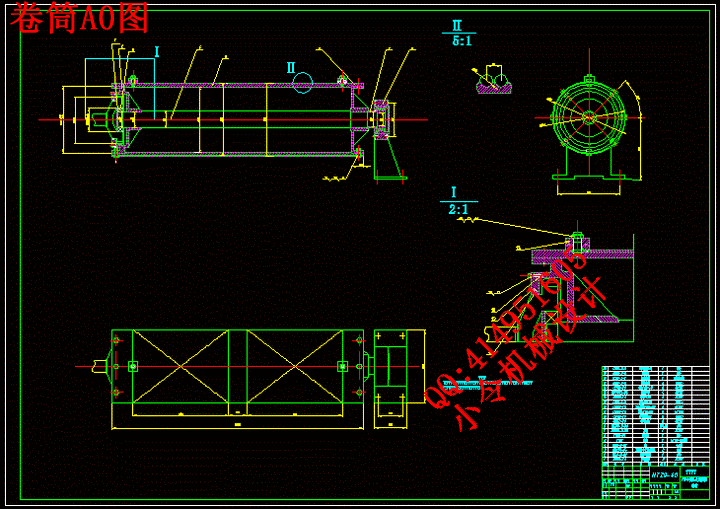

2.5 卷筒的计算 8

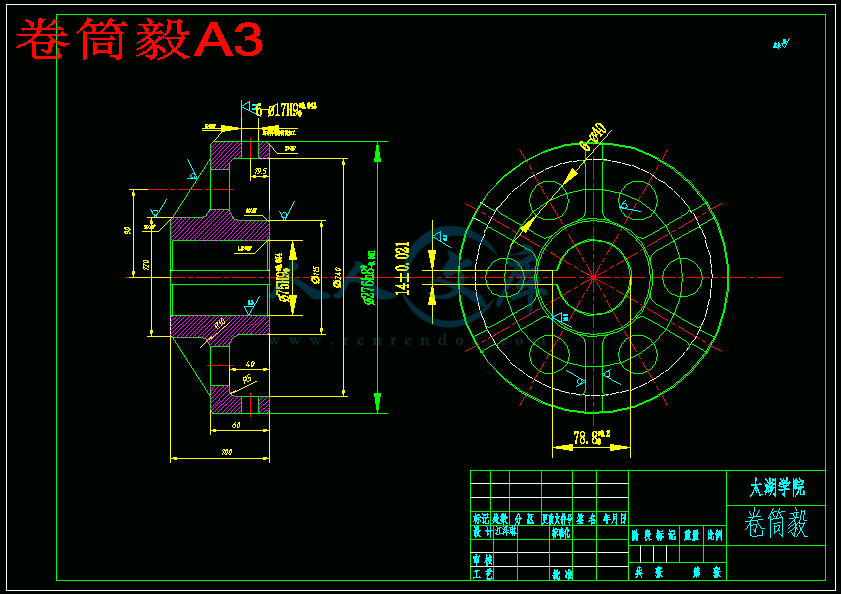

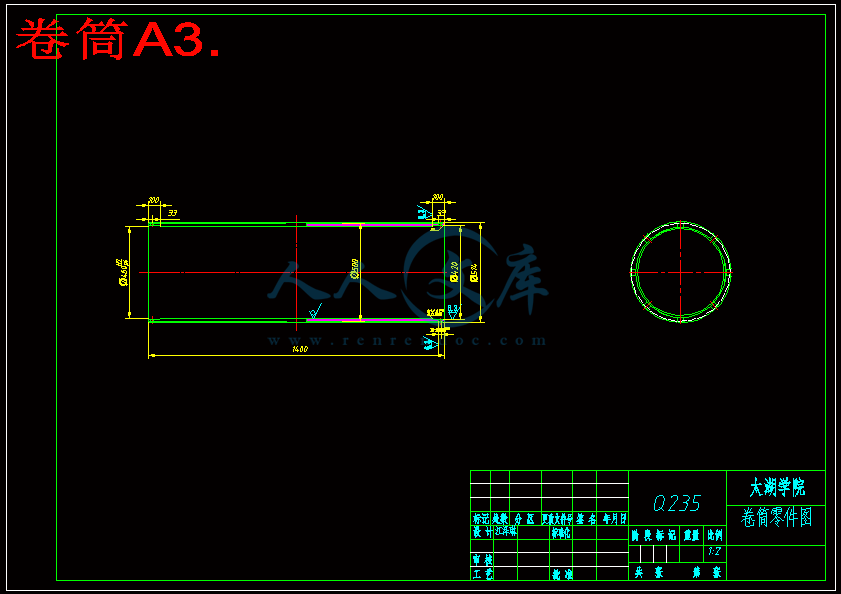

2.5.1 卷筒材料 8
2.5.2 卷筒直径计算 8
2.5.3 卷筒长度 8
2.5.4 卷筒壁压应力验算 8
2.5.5 卷筒应力验算 9
2.6 绳端固定装置的计算 10
2.7 取物装置 12
2.7.1 确定吊钩装置构造方案 12
2.7.2 吊钩主体结构的主要尺寸的计算 12
2.7.3 吊钩强度验算 13
2.7.4 吊钩弯曲部分断面A-A强度验算 13
2.7.5 吊钩弯曲部分断面B-B强度验算 14
2.7.6 推力球轴承的选择 14
2.7.7 吊钩横梁的计算 15
2.7.8 滑轮轴的计算 16
2.7.9 拉板的强度校核 17
3 起升运行机构设计 19
3.1 力矩的计算 19
3.1.1 平稳上升阶段 19
3.1.2 平稳下降阶段 20
3.1.3 上升起动阶段 20
3.1.4 下降制动阶段 22
3.2 电动机的选择 22
3.2.1 电动机的功率确定 22
3.2.2 验算电动机发热条件 23
3.3 减速器的选择 23
3.3.1 减速器传动比 23
3.3.2 减速器的选取 23
3.3.3 输出轴强度校核 23
3.4 起升速度和实际所需功率 24
3.4.1 实际速度 24
3.4.2 实际功率 24
3.5 制动器的选择 24
3.6 起升和制动时间验算 25
3.6.1 起动时间验算 25
3.6.2 制动时间验算 26
3.7.1 疲劳计算 26
3.7.2 强度验算 27
4 总结与展望 29
4.1 总结 29
4.2 展望 29
致  谢 30
参考文献 31




1  绪论
   起重机械的基本任务是垂直升降重物,并可兼使重物作短距离的水平移动,以满足重物装卸、转载、安装等作业的要求。起重机机械是现代化生产必不可少的重要机械设备,它对于减轻繁重的体力劳动、提高劳动生产率和实现生产过程的机械化、自动化及改善人民的物质、文化生活都具有重大的意义。
起重机械广泛应用于工矿企业、港口码头、车站仓库、建筑工地、海洋开发、宇宙航行等各个工业部门,可以说陆地、海洋、空中、民用、军用各个方面都有起重机械在进行着有效的工作。
   起重机械不仅可以作为辅助的生产设备,完成原料、半成品、产品的装卸、搬运,进行机电设备的安装、维修,而且它也是一些生产过程工艺操作中的必须设备,例如钢铁冶金生产中的各个环节,从炉料准备、加料到炼好的钢水浇铸成锭以及脱模取锭等。又例如原子能工业中的一些工艺操作等人所难达到之处,没有起重机械,简直无法生产。据统计,在我国冶金、煤炭部门的机械设备总台数或总重中,起重运输机械约占25%~65%。
起重机械与运输机械发展到现在,已经成为合理组织成批大量生产和机械化流水作业的基础,是现代化生产的重要标志之一。在我国四个现代化的发展和各个工业部门机械化水平、劳动生产率的提高中,起重机必将发挥更大的作用。
1.1 桥式起重机的简介
   起重机械和其它自然科学一样,是人类生产斗争经验的总结,它是随着人们的生产实践逐渐发展并不断丰富完善的。桥式起重机是桥架在高架轨道上运行的一种桥架型起重机,又称天车。
  桥式起重机是生产车间、料场、电站厂房和仓库中为实现生产过程机械化与自动化,减轻体力劳动,提高劳动生产率的重要物品搬运设备。桥式起重机安装在厂房高处两侧的吊车梁上,整机可以沿铺设在吊车梁上的轨道纵向行驶。而起重小车又可沿小车轨道横向行驶,吊钩则作升降运动。
  桥式起重机常见的类型有以下三种形式:
  通用桥式起重机:取物装置为吊钩,适用于各种物料的搬运,通用性强;抓斗式桥式起重机:取物装置是抓斗,用于大批量散粒物料的搬运;电磁桥式起重机:取物装置为电磁吸盘,为专用起重机,用于铁磁性物料的搬运。
  经过比较,选用电动双梁桥式起重机。这种起重机的各个工作机构均为电力驱动。起重小车在桥架主梁上方铺设的轨道上行驶,其桥架是双主梁结构形式。在桥架两侧的走台上,一侧用来安装大车运行机构,另一侧则安装有电气设备和给小车供电的滑线设施。
  普通桥式起重机一般由起重小车、桥架运行机构和桥架金属结构组成。起重小车又由起升机构、小车运行机构和小车架三部分组成。

1.2 起重机械的发展
  随着现代科学技术的迅速发展,工业生产规模的扩大和自动化程度的提高,起重机在现代化生产过程中应用越来越广,作用愈来愈大,对起重机的要求也越来越高。尤其是计算机技术的广泛应用,许多跨学科的先进设计方法出现,这些都促使起重机的技术进入崭新的发展阶段。起重机发展趋势轻型化和多样化。有相当批量的起重机是在通用场合使用,工作并不很繁重。这类起重机批量大、用途广,考虑综合效益,要求起重机尽量降低外形高度,简化结构,减小自重和轮压,也可使整个建筑物高度下降,建筑结构轻型化,降低造价。因此电动葫芦桥式起重机和梁式起重机会有更好的发展,并将取代大部分中小吨位的一般用途桥式起重机。
1.3 起重机械的特点
起重机械是一种间歇动作的机械,它具有重要而短暂的工作特征。起重机械在搬运物料时,通常经历着上料、运送、卸料以及回到原处的过程,各工作机构在工作时作往复周期性的运动,例如经历起升机构的工作由物品的升、降和空载取装置的升、降所组成;运行机构的工作由负载和空载时的往复运动所组成。在起重机械的每一个工作循环,即每搬运一次物品的过程中,其有关的工作机构都要作一次正向和反向的运动


内容简介:
英文翻译Traffic safety technical requirementsA hook1, should be checked regularly, at least semiannually, and clean lubrication.2, new and put into use the hook to recognize that the hook on the mark, the technical documentation of the manufacturing units and factory certification.3, before put into use by means of marking load test, allows the use of qualified before confirmation.4, are not allowed to use the casting hook. The hook should be fixed firmly rotating parts should be flexible, leptospirosis smooth surface, no cracks, spalling and any damage wire rope defects.5, leptospirosis defects shall not welding. To prevent spreader to decoupling, the hook should be set to prevent accidental decoupling safety devices.6, one of the following conditions occurs, the hook should be scrapped:(1) Surface cracks.(2) the amount of wear of the dangerous section: hook manufactured in use by industry standards, should not be greater than 10% of the original size; manufactured by GB10051.2 hook should be less than 5% of the original height.(3) the degree of opening than the original size increased by 15%.(4) The torsional deformation of more than 10 .(5) the dangerous section or hook neck plastically deformed.(6) The board hook bushing wear up to 50% of the original size, should be scrapped bushing; the board hook mandrel wear up to 5% of the original size, should be scrapped mandrel. The panel hook caulking can not be loose, the gap between the boards can not be greater than 0.30mm.Second, the spreader1, hinge parts should be checked before use leverage deformation, cracks.2, the axis of the rotating parts, off the regular inspection and lubrication. In case of large loose, wear, deformation, etc., should be timely repair and replacement.3, new and put into use the spreader should load test, after passing inspection in order to allow the use of.Third, the wheel1, check all parts of the wheel, the tread of the wheel rim and spokes cracks are found, replace the wheel.2, when the wheel rim wear amount more than 50% of the original thickness, or rim bending deformation of up to 20% of the original thickness, the wheels should be scrapped.3, runout tolerance should not be greater than the diameter of the wheel tread.Wheel tread allows repair in the following situations:(1) a cylindrical the difference the two capstan tread diameter:Wheel diameter 250-500mm and no more than 0.125 mm;The wheel diameter 600-900mm and no more than 0.30mm.(2) Poor: the two passive wheel diameter cylindrical treadWheel diameter 250-500mm, is not greater than 0.60mm;The wheel diameter 600-900mm and no more than 0.90mm.(3) conical tread diameter deviation is greater than the nominal diameter of 1/1000, should be re-processed for repair.During use, the tread strip, the scratch area is greater than 2cm2, when the depth is greater than 3mm, allowing Repair, or should be scrapped.Wheel tread thickness loss of 15% of the thickness due to wear or re-machining due to other defects, repair, when the wheel is scrapped.(4) assembly of wheels, wheel basis nose will swing shall not be greater than 0.1 mm, the wall thickness of the rim and the wheel diameter deviation should not be greater than 3 mm, the wheel assembly group should be able to hand the flexibility to rotate.Fourth, trackCheck rail, bolts, fish plates for cracks, loose and corrosion. Found that the cracks should be replaced if any other defects should be promptly repaired.2, the adjustment of the track: track joints can be made directly to the head, also can be made into a 45 inclined joint general joint gap for 1-2mm in the cold winter construction or installation should consider the temperature gap is generally 4-6mm . Joints, two rail top surface of the difference in height shall not be greater than 1 mm, side straightness is not greater than 2 mm.The same cross-section of the two rail height difference shall not be greater than 10 mm. Each track along the length 2m measuring length shall not be greater than 2 mm, total length must not exceed 15mm.Fifth, pulley block1, good lubrication of the pulley block, flexible rotation; pulley lateral pendulum shall not exceed one-thousandth of the nominal size of the pulley.2, pulley cover and other parts shall not prevent the wire rope run. Should prevent the rope to jump out of the wheel groove guards.3 pulley one of the following conditions should be scrapped:(1) there is a crack or damage the rim.(2) round slot uneven wear up to 3mm.(3) The wall thickness of the wheel groove wear up to 20% of the original wall thickness.(4) wheel groove bottom diameter of the wear volume of 50% of the rope diameter.4, the pulley has a smooth surface smooth, there should be no damage to wire rope defects.Six rolls1, the fetching means when the upper limit position, the the rope whole volume in the helical slot; extract means when the lower limit position, the end of each fixed should have safety 1.5-2 ring fixed rope groove and ring grooves.2, you should regularly check the operation status of the group of the roll.(1) Check the roll and shaft may crack, cracks were found to be scrapped update in a timely manner.(2) reel wall wear to 20% of the original wall thickness roll scrap, should be replaced immediately.(3) the reel hub without cracks, roll links should be solid, not loose.(4) fixed the end of the wire rope should be reliable, fixtures should be locking or self-tightening performance.3, roll around the skew angle of the rope for single-layer winding-up mechanism should not be greater than 3.5 for the multilayer winding institutions should not be greater than 2 .4, multi-layer winding roll ends should be flange. Flange should be higher than the outermost layer of wire rope or chain 2 times the rope diameter or width of the chain. The monolayer wound single joint roll should also meet the above requirements., An integral part of the roll group, rotating flexible roll, shall not block abnormal sound.Seven reducer1, always check the anchor bolts, shall not be loose, fall off and break.2 a day, check the gear unit housing, bearing at fever can not exceed the allowable temperature rise. When the temperature exceeds a room temperature of 40 C, the bearings should be checked for damage, improper installation or lack of grease, the load time is too long, running or without catching phenomenon.3, check the lubrication. Reducer during the initial period, should be replaced every three months the oil and clean the cabinet, remove the metal shavings, replaced every six months to a year later. The lubricating oil will not leak, the oil should be moderate.4, listening to the police gear meshing sound. Excessive noise or abnormal percussion, out of the box to check the shafts and gears for damage.5, with a magnetic or ultrasonic flaw detection gear unit housing and shaft cracks should be replaced.6, the housing shall not deformation, cracking defect.7, reducer parts of the following circumstances should be scrapped:(1) the gear cracks and broken teeth.(2) damage to the tooth surface pitting of the engagement surface 30% or 10% of the depth up to the original tooth thickness.(3) Hoisting mechanism at every level gear to wear up 10% of the original tooth thickness, the other engages level up to the original tooth thickness of 20% should be scrapped: other institutions meshing gear tooth thickness wear up to 15%, the tooth thickness wear of the original tooth thickness of the engagement level of 25% should be scrapped; open gear drive gear tooth thickness wear of the original tooth thickness of 30% of the gear scrapped.(4) the reducer housing severe deformation, cracks and fix the value of the end-of-life.Eight coupling1, the rotating coupling runout or face runout is beyond the limit.2, the bond between the coupling and connector availability of loose, deformed, or out of the slot; keyway for cracks and deformation, with or without scroll keys. Connected to the coupling with the order of the shear bolt, the bolt of the availability of loose, fall off and break, when the above situation, stop the treatment.3, a lubricating device coupling sealing device should be intact.4, gear couplings for cracks, broken teeth or from the lifting mechanism and the non-equilibrium luffing mechanism gear tooth thickness wear volume of the original tooth thickness of 15% and 20% of other agencies gear tooth thickness wear volume of the original tooth thickness associated The axis is no longer available.The use of lifting mechanism brake wheel coupling, heat pad should be added.Nine, brakeBrake frame hinge point by the wear and tear caused Songkuang, resulting backlash over tic drive 10% of the working stroke of the device, the response to the hinge point for repair.2, the hinge pin having a diameter exceeding 5% of the original diameter of more than 0.5mm or ovality, shall replace the pin. The replacement pin hole should be trimmed to restore the roundness, and then the preparation of a new pin according to the aperture. Shaft hole diameter wear more than 5% of the original diameter, should be re-trimmed shaft hole, the preparation of a new pin.(3) on the brake pad lining wear more than 50% of the original thickness, defects and cracks should be scrapped, the replacement of the friction plate. Replacement, a rivet embedded in the brake lining attempt should be more than 1/2 of the original thickness.4, the parts of the braking device cracks should be scrapped.5 should be replaced, the brake spring plastic deformation occurs.6, from the lifting mechanism and luffing mechanism brake wheel, when the wear of the rim thickness up to 40% of the original thickness, should be scrapped. Other bodies of the brake wheel, the wear of the rim thickness up to 50% of the original thickness, should be scrapped.7, brake wheel shaft hole with the drive shaft connected to key loose, replace the tic wheel and drive shaft.8, the brake wheel uneven degrees of 1.5mm, allowing Repair. Flange thickness shall comply with the requirements of section 6 of the repair can continue to use, or should be scrapped.中文翻译行车安全技术要求一、吊钩1、应定期检查,至少每半年检查一次,并进行清洗润滑。2、新投入使用的吊钩要认明钩件上的标记、制造单位的技术文件和出厂合格证。3、投入正式使用前应根据标记进行负荷试验,确认合格后才允许使用。4、不准使用铸造吊钩。吊钩应固定牢靠,转动部位应灵活,钩体表面光洁,无裂纹、剥裂及任何有损伤钢丝绳的缺陷。5、钩体上的缺陷不得补焊。为防止吊具自行脱钩,吊钩上应设置防止意外脱钩的安全装置。6、出现下述情况之一时,吊钩应报废:(1)表面有裂纹。(2)危险断面磨损量:按行业沿用标准制造的吊钩,应不大于原尺寸的10%;按GB10051.2制造的吊钩,应不大于原高度的5%。(3)开口度比原尺寸增加15%。(4)扭转变形超过10。(5)危险断面或吊钩颈部产生塑性变形。(6)板钩衬套磨损达原尺寸的50%时,应报废衬套;板钩芯轴磨损达原尺寸的5%时,应报废芯轴。板钩的铆接不得松动,板间的间隙不得大于0.30mm。二、吊具1、使用前应检查铰接部位的杠杆有无变形、裂纹。2、对转动部位的轴、销进行定期检查和润滑。如有较大的松动、磨损、变形等,应及时予以修理和更换。3、新投入使用的吊具应进行负载试验,经检验合格后才能允许使用。三、车轮1、检查车轮各个部位,车轮的踏面、轮缘和轮辐发现裂纹时,应更换车轮。2、车轮轮缘磨损量超过原厚度的50%时,或轮缘弯曲变形达原厚度的20%时,车轮应报废。3、车轮踏面的径向跳动不应大于直径的公差。车轮踏面在下列情况时允许修理:(1)圆柱形踏面的两主动轮的直径差:车轮直径250500mm时,不大于0.125mm;车轮直径600900mm时,不大于0.30mm。(2)圆柱形踏面的两被动轮的直径差:车轮直径250500mm时,不大于0.60mm;车轮直径600900mm时,不大于0.90mm。(3)圆锥形踏面直径偏差大于名义直径的1/1000时,应重新加工修理。在使用过程中,踏面剥离、擦伤的面积大于2cm2,深度大于3mm时,允许修理,否则应报废。车轮由于磨损或因其他缺陷,重新加工修理,踏面厚度损失达厚度的15%时,车轮报废。(4)装配后的车轮组,车轮基准端面摆辐不得大于0.1mm,轮缘及轮径的壁厚偏差不应大于3mm,装配后的车轮组,应能用手灵活地转动。四、轨道1、检查钢轨、螺栓,鱼尾板有无裂纹,松脱和腐蚀。发现裂纹应及时更换,如有其他缺陷应及时修理。2、轨道的调整:轨道的接头可做成直接头,也可以做成45斜接头,一般接头的缝隙为12mm,在寒冷地区冬季施工或安装时应考虑温度缝隙一般为46mm。接头处,两轨顶面高度差不得大于1mm,侧面直线度不大于2mm。两轨道同一截面高度差不得大于10mm。每根轨道沿长度方向,每2m测量长度不得大于2mm,全长上不得超过15mm。五、滑轮组1、滑轮组润滑良好,转动灵活;滑轮侧向摆不得超过滑轮名义尺寸的千分之一。2、滑轮罩及其他零部件不得妨碍钢丝绳运行。应有防止钢丝绳跳出轮槽的防护装置。3、滑轮有以下情况之一时,应报废:(1)有裂纹或轮缘破损。(2)轮槽不均匀磨损达3mm时。(3)轮槽壁厚磨损达原壁厚的20%时。(4)轮槽底部直径磨损量达钢丝绳直径的50%时。4、滑轮轮槽表面光洁平滑,不应有损伤钢丝绳的缺陷。六、卷筒1、取物装置在上极限位置时,钢丝绳全卷在螺旋槽中;取物装置在下极限位置时,每端固定处都应有1.52圈固定钢丝绳用槽和2圈以上的安全槽。2、应定期检查卷筒组的运转状态。(1)检查卷筒和轴不得有裂纹,如发现裂纹要及时报废更新。(2)卷筒壁磨损至原壁厚的20%时卷筒报废,应立即更换。(3)卷筒毂上不得有裂纹,与卷筒联结就应坚固,不得松动。(4)钢丝绳尾端的固定应可靠,固定装置应有防松或自紧性能。3、卷筒与绕出的钢丝绳的偏斜角对于单层缠绕机构不应大于3.5,对于多层缠绕机构不应大于2。4、多层缠绕的卷筒,端部应有凸缘。凸缘应比最外层钢丝绳或链条高出2倍的钢丝绳直径或链条的宽度。单层缠绕的单联卷筒也应满足上述要求。5、组成卷筒组的零件齐全,卷筒转动灵活,不得有阻滞现象及异常声响。七、减速器1、经常检查地脚螺栓,不得有松动、脱落和折断。2、每天检查减速器箱体,轴承处的发热不能超过允许温度升高值。当温度超过室温40时,应检查轴承是否损坏,是否安装不当或缺少润滑油脂,负荷时间是否过长,运行有无卡滞现象等。3、检查润滑部位。减速器使用初期,应每三个月更换一次润滑油,并清洗箱体,去除金属屑,以后半年至一年更换一次。润滑油不得泄漏,同时油量要适中。4、听察齿轮啮合声响。噪声过高或有异常撞击声时,要开箱检查轴和齿轮有无损坏。5、用磁力或超声波探伤检查减速器箱体和轴,发现裂纹应及时更换。6、壳体不得有变形、开裂缺损现象。7、减速器零件中有下列情形之一时,应予以报废:(1)齿轮有裂纹和断齿。(2)齿面点蚀损坏达啮合面30%或深度达原齿厚的10%时。(3)起升机构每一级啮合齿轮磨损达原齿厚的10%,其他啮合级达原齿厚的20%时应报废:其他机构第一级啮合齿轮原齿厚磨损达15%,其他啮合级齿厚磨损达原齿厚的25%时应报废;开式齿轮传动中的齿轮齿厚磨损达原齿厚的30%时,该齿轮报废。(4)减速器壳体严重变形、裂纹,且无修复价值时,该件报废。八、联轴器1、转动中的联轴器径向跳动或端面跳动是否超出极限。2、联轴器与被连接件间的键有无松动、变形或出槽;键槽有无裂痕和变形,有无滚键。用承剪螺栓连接的联轴器,其螺栓有无松动、脱落和折断,当出现上述情况时,应停机处理。3、带有润滑装置的联轴器的密封装置应完好。4、齿轮联轴器有裂痕、断齿或起升机构和非平衡变幅机构齿轮齿厚磨损量达原齿厚的15%,其他机构齿轮齿厚磨损量达原齿厚的20%,联轴器不能再使用。5、起升机构使用的制动轮联轴器,应加设隔热垫。九、制动器1、制动器架各铰接点经磨损造成松旷,导致无效行程超过抽动驱动装置工作行程的10%时,应对各铰接点进行修理。2、各铰链处的销轴,其直径超过原直径的5%或椭圆度超过0.5mm时,均应更换销轴。更换时,应修整销轴孔,恢复圆度,然后根据孔径配制新的销轴。轴孔直径磨损超过原直径5%时,也应重新修整轴孔,配制新的销轴。3、制动瓦块上摩擦片的磨损超过原厚度的50%,或有缺损和裂纹时,应报废更换新的摩擦片。更换时,铆钉埋入制动摩擦片的尝试应超过原厚度的1/2。4、制动装置的零件出现裂纹时应报废。5、制动弹簧出现塑性变形时应更换。6、起升机构和变幅机构的制动轮,当轮缘厚度磨损达原厚度的40%时,应报废。其他机构的制动轮,轮缘厚度磨损达原厚度的50%时,应报废。7、制动轮的轴孔与传动轴连接的键出现松动时,应更换抽动轮和传动轴。8、制动轮凹凸不平度达1.5mm时,允许修理。修复后轮缘厚度应符合上述第6条的要求时可继
