资源描述：

【温馨提示】购买原稿文件请充值后自助下载。

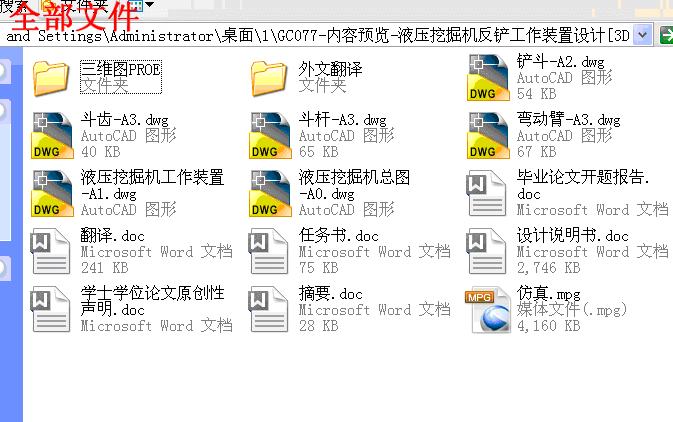

[全部文件] 那张截图中的文件为本资料所有内容，下载后即可获得。

预览截图请勿抄袭，原稿文件完整清晰，无水印，可编辑。

有疑问可以咨询QQ：414951605或1304139763










摘要

本次设计的题目是液压挖掘机反铲装置机构。与其它类型的挖掘机相比，这种类型的挖掘机因有良好通过性能应用最广，对松软地面或沼泽地带还可采用加宽、加长以及浮式履带来降低接地比压。

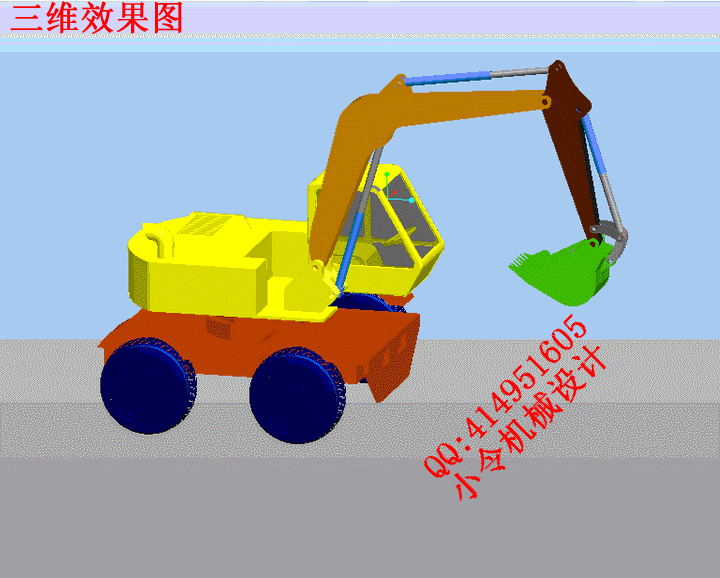

液压挖掘机反铲装置的主要特点为：反铲是中小型液压挖掘机的主要工作装置。液压挖掘机的反铲装置由动臂，斗杆铲斗，以及动臂油缸，斗杆油缸，铲斗油缸和连杆机构组成。其构造特点是各部件之间的连接全部采用铰接，通过油缸的伸缩来实现挖掘工作中的各种动作。动臂的小铰点与回转平台铰接，并以动臂油缸来支撑和改变动臂的倾角，通过动臂油缸的伸缩可使动臂绕小铰点转动而升降。斗杆铰接于动臂的上端，斗杆与动臂的相对位置由斗杆油缸来控制，当斗杆油缸伸缩时，斗杆便可绕动臂上焦铰点转动。本次设计的主要参数是斗容量0.2m3,它属于中小型液压挖掘机，主要设计挖掘机的工作装置。
在设计中，采用了轮胎式行走装置，来满足要求。上部转台是全回转式，因此它可在一个更大的范围内工作。又因采用液压传动控制而使整机性能得以改善。与机械式挖掘机相比，其挖掘力提高到2～3倍，整机质量约为5吨，挖掘力约为30kN，最大卸载高度约为2.65m，最大挖掘深度4.2m，最大挖掘半径约为5.728m，从中可以看出整机作业能力有了很大的改进，不仅挖掘力大，且机器重量轻，传动平稳，作业效率高，结构紧凑。另外，还对挖掘机的工作装置提出基于结构推理的机构方案创新设计方法。
关键词：液压挖掘机；反铲机构；设计

ABSTRACT

This designed topic is the marchinghydraulic excavatorexcavational organization. Compared with other types excavators, thiskind of type excavator used very universal that because has good through theperformance, also may use tolengthenswidens as well as the floating type caterpillar bandto reduce pressure for the soft ground or the bogregion.
The hydraulic excavator main characteristic is: The small and medium-sized hydraulic excavator shovel is the main work device. Hydraulic excavator shovel device by the arm, dou stem bucket, and arm oil cylinder, dou rod oil cylinders, the bucket of cylinder and linkage mechanism. Its structure feature is between components All adopt the connection by oil cylinder hinged adjustable to realize the various movements excavation. Moving arm little hinge point and rotary platform, and with hinged arm oil cylinder to support and change the dip Angle, through arm arm Oil cylinder telescopic can make moving arm around small hinge point lifting rotation. Dou lever arm hinged on the upper arm, dou rod and the relative By dou pole position to control oil cylinder, when dou rod oil cylinder telescopic, dou lever arm can be around the upper energizer hinge point rotation. This designed main parameter is scoop capacity 0.2m3, it is long to themiddle and small scale hydraulic excavator, mainly design the excavator，s the work installment and the hydraulic transmissionprinciple.
In the design, used marching walked the installment to satisfied request. Upside the turnplate is the entire rotation , thereof it may work in a greater scope. And further because uses the hydraulicsteering to enable the entire machine performance to improve. Compared with the mechanical type excavator, its excavation strength enhance to 2 ~ 3 times, the entire machine weight approximately is 5 tons,the excavation strength approximately is 30kN, the biggest unloadinghigh approximately is 2.65m, biggest digging depth is 4.2m, the biggestexcavation radius approximately is 5.728m, thus can see theentire machine work ability to have the very big improvement, not onlyexcavation strength big, but also machine weight light, transmissionsteadyly, work efficiency is high, the structure is compact. Moreover, butalso proposes to the excavator work installment based on the structureinference organization plan innovation design method.
Key word：Hydraulic pressure excavator；Excavation organization　；Hydraulic system　；Innovation design

1　绪论1
1.1液压挖掘机的工作特点和基本类型1
1.1.1液压挖掘机的主要优点1
1.1.2液压挖掘机的基本类型及主要特点2
1.2反铲装置的工作原理2
2　总体设计方案4
2.1工作装置设计方案原则4
2.2液压系统设计方案原则（总体）4
2.2.1对液压系统作业动作要求4
2.2.2对液压系统基本的要求5
3挖掘机工作装置设计.............................6
3.1确定动臂的结构形式………………………………………………………………………..6
3.2动臂、铲斗机构参数的选择…………………………………………………………...6
3.2.1反铲装置总体方案的选择………………………………………………………….6
3.2.2铲斗参数的选择7
3.2.3动臂机构参数的选择8
4液压挖掘机工作装置运动仿真13
4.1模型建立………………………………………………………………………………..13
4.2构件运动配装……………………………………………………………………..……15
4.3构件运动仿真………………………………………………………………………17
结论………………………………………………………………………………………………21
致谢………………………………………………………………………………………………22
参考文献…………………………………………………………………………………………23

1　绪论

液压挖掘机是在机械传动挖掘机的基础上发展起来的。它的工作过程是以铲斗的切削刃切削土壤，铲斗装满后提升、回转至卸土位置，卸空后的铲斗再回到挖掘位置并开始下一次的作业。因此，液压挖掘机是一种周期作业的土方机械。
　　液压挖掘机与机械传动挖掘机一样，在工业与民用建筑、交通运输、水利施工、露天采矿及现代化军事工程中都有着广泛的应用，是各种土石方施工中不可缺少的一种重要机械设备。
　　在建筑工程中，可用来挖掘苦坑、排水沟，拆除旧有建筑物，平整场地等。更换工作装置后，可进行装卸、安装、打桩和拔除树根等作业。
　　在水利施工中，可用来开挖水库、运河、水电站堤坝的基坑、排水或灌溉的沟渠，疏浚和挖深原有河道等。
　　在铁路、公路建设中，用来挖掘土方、建筑路基、平整地面和开挖路旁排水沟等。
　　在石油、电力、通信业的基础建设及市政建设中，用来挖掘电缆沟和管道等。
　　在露天采矿场上，可用来剥离矿石或煤，也可用来进行堆弃、装载和钻孔等作业。
所以，液压挖掘机作为工程机械的一个重要品种，对于减轻工人繁重的体力劳动，提高施工机械化水平，加快施工进度，促进各项建设事业的发展，都　起着很大的作用。据建筑施工部门统计，一台斗容量1.0m3的液压挖掘机挖掘Ⅰ～Ⅳ级土壤埋，每班生产率大约相当于300～400个工人一天的工作量。因此，大力发展液压挖掘机，对于提高劳动生产率和加速国民经济的发展具有重要意义。
1.1液压挖掘机的工作特点和基本类型

1.1.1液压挖掘机的主要优点

液压挖掘机在动力装置之间采用容积式液压静压传动，即靠液体的压力能进行工作。液压传动与机械传动相比有许多优点。
①能无级调速且调速范围大，例如液压马达的最高转速与最低转速之比可达1000∶1。
②能得到较低的稳定转速，例如柱塞式液压马达的稳定转速可低达1r/min.
③快速作用时，液压元件产生的运动惯性小，加速性能好，并可作调整反转。例如电动机在启动时的惯性力矩比其平稳盍时的驱动力矩大50%，而液压马达则不大于5%，加速中等功率电动机需1s到数秒，而加速液压马达只需0.1s。
④传动平稳，结构简单，可吸收冲击和振动，操纵省力，易实现自动化控制。
⑤易于实现标准化、系列化、通用化。　
基于液压传动的上述优点，液压挖掘机与机械传动挖掘机相比，具有下列主要特点。
①大大改善了挖掘机的技术性能，挖掘力大、牵引力大，机器重量，传动平稳，作用效率高，结构紧凑。液压挖掘机与同级机械传动挖掘机相比，挖掘力约高30%，例如1.0m液压挖掘机铲斗挖掘力120～150KN，而同级机械传动挖掘机只有100KN左右。
挖掘机在工作时的主要动作包括行走、转台回转和工作装置的作业动作，其中动作最频繁的是回转和工作装置的循环往复运动。这种入选运动一般速度不高，而所需作用力却很大，要求在短时间内通过变速或换向来完成各种复杂动作。机械传动挖掘机完成上述运动需通过磨擦离合器、减速器、制动器、逆转机构、提升和推压机构等配合来完成。因此，机械传动挖掘力不仅结构复杂，而且还要产生很大的惯性力和冲击载荷。而液压挖掘机则不需要庞大和复杂的蹭传动，大大简化了结构，也减少了易损件。由于结构简化，液压挖掘机的质量大约比相同斗容量的机械传动挖掘机轻30%，不仅节省了钢材，而且降低了接地比压。液压挖掘机上的各种液压元件可相对独立布置，使整机结构紧凑、外形美观，同时也易于改进或变型。
②液压挖掘机的液压系统有防止过载的能力，所以使用安全可靠，操纵简便。由于可采用液压先导控制，无论驱动功率多大，操纵均很灵活、省力，司机的工作条件得到改善。更换工作装置时，由于不牵连转台上部的其他机构，因此更换工作装置容易，而机械式挖掘机则受到提升机构和推压机构的牵连和限制。

内容简介：: MINING MECHANIZATION AND AUTOMATION GEOMETRY OF THE WORKING PART OF AN EXCAVATOR TOOTH V. A. Polovinko and A. I. Fedulov UDC 621.879.3 Studies of excavator tooth wear kinetics conducted earlier by the present authors 1, 2 showed that the main factor controlling wear platform dynamics is the physical-mechanical property of the rock. Wear platforms evolve in two stages. Tooth wear acquired during the critical stage 2 has no significant influence on excavator performance in the mining and geologic conditions typical for the northeastern regions of Russia. Cutting elements can continue to be used up to the maximum permissible wear level specified by the manufacturer. In this respect, intensive wear during initial stages apparently reflects some design imperfection rather than the effects of the work adjustment process. Investigators have studied the causes and consequences of intense wear of excavator teeth, but there are still no basic criteria upon which to formulate general principles so as to improve the wear resistance of cutting elements as determined by their design 3-5. An efficient way to raise the wear resistance of an excavator tooth is to devise the design parameters of the working component so as to ensure classical single-stage wear, bypassing the critical (pseudoadjustment) phase. We developed a new excavator tooth design which features heightened wear resistance. The outline of the working component of the tooth and its dimensions were developed with due regard for the main characteristic points of the wear resistance curves of mass-produced wedge-shaped teeth. To attain a linear behavior for the wear process of such teeth with a rate equal to or less than what is observed during the second stage of wear with mass- produced teeth, we specified the design parameters corresponding to the beginning of the second phase, where the specific pressure from the standard force of the thrust mechanism drops to 10-12 MPa. Figure 1 plots pressure variations on the wear platforms of teeth of buckets used in common quarry excavators according to the following expression: P1 where Up is the width of the wear platform; P1 is the rated force of the thrust mechanism; D and i are the length of the tooth cutting edge and the number of teeth on the bucket, respectively. The curves show that there are certain pressure regions on wear platforms where rock resistance to teeth is equal to or greater than the force developed by the thrust mechanism. This loading pattern for cutting elements is observed on monolithic strong (e.g., permafrost) rocks. On the other hand, some materials resist cutting with a much weaker strength than the force developed by this thrust mechanism. To estimate the specific pressures formed when cutting elements interact with these materials, we plotted curves 1-4 by computing the pressure on the wear platforms of an tKG-5A excavator tooth at 0.8, 0.4, 0.2, and 0.1 of the rated thrust force. On weak rocks the pressure variation pattern on the wear platform is the same, but the pressures and dimensions for the worn portion of teeth after the beginning of the second stage may be much smaller (sometimes by a considerable factor). This is clearly seen in Fig. 1. Zone I, crossing the curves, defines the parameters of the onset of the second stage of wear for teeth of different excavators and for different rock strengths (curves 1-4). For IKG-5A excavator teeth the starting point of the second wear stage obtained experimentally lies in zone I and corresponds to a pressure of P = 10-12 MPa and a wear platform width of Utc r = 45 mm. Institute of Mining, Siberian Branch, Russian Academy of Sciences, Novosibirsk. Translated from Fiziko- Tekhnicheskie Problemy Razrabotki Poleznykh Iskopaemykh, No. 2, pp. 16-23, March-April, 1993. Original article submit- ted November 4, 1992. 1062-7391/93/2902-0115512.50 1993 Plenum Publishing Corporation 115 0 MPa tl/( . O EKG-20 EKG-12,5 EKG-$I 5A Up Up, mm Fig. 1 Fig. 2 Fig. 1. Pressure variation as a function of wear platform size (1-4 - theoretical pressure curves on an 1KG- 5A excavator tooth wear platform when working rocks with resistance 0.8, 0.4, 0.2, and 0.1 of standard thrust force). Fig. 2. Working part of a cutting element with wedge angle 180 (1 cutting edge with area So; b - edge width; D - length; 2 - wear platform surface area Sp2; 1, - wear platform slope angle. At a given size of the working part of the tool, the stage of critical wear or pseudoadjustment is virtually absent on rocks and grounds with low strength, while tools experience intense two-stage wear on strong/hard rocks. In different mining and geologic conditions, it is obviously convenient to work with interchangeable tools. It is currently impossible to control the force parameters on the working element of an excavator. The operator observes the work of the machine visually, watching its motion and bucket filling. The loads acting upon working elements and teeth thus depend not only on rock resistance to cutting, but largely on operator skill and experience. Art efficient and rational approach to devising working tooth component parameters is to consider the power of excavator drives. The area of the cutting edge for a rectangular cutting profile with a 180 sharpening can be calculated from the pressure on the wear platform (see Fig. 2) corresponding to the onset of the second wear stage: P = PI Sp2. i where P is the pressure on the wear platform when platform dimensions correspond to the beginning of the second stage; P1 is the rated thrust force of the excavator (vertical component of the cutting force); Sp2 is the wear platform area at the second stage onset; i is the number of teeth on the excavator bucket. The wear platform is defined in terms of the cutting edge area as S O SP2 = sinT where 3 is the wear platform slope angle relative to the back facet of the cutting profile; S o is cutting edge area. The pressure on the wear platform can be expressed as p = .Px sin ? So- The area of the cutting edge which provides the desired wear pattern for the cutting element is defined from the same formula: So - P1 sin 7 P-i 116 / 2? -7 r j U, mm Ve z1V j I V, 1,000 m 3 Fig. 3 Fig. 4 Fig. 3. Cutting elements with heightened wear resistance (Ucr - linear wear corresponding to first critical stage; b b and D b - basic width and length of cutting edge of wedge tooth; D - calculated length of cutting edge). Fig. 4. Design-controlled wear resistance of wedge-shaped cutting elements (1, 2 varia- tion of linear wear for a tooth with an expanded part and a standard tooth, respectively; Umax - maximum permissible wear; &V - increased operation resource of new tooth design. Considering that the cutting edge area is linked to the wear platform by the preceding relation, we can formulate simple technological conditions for improving the design of the working component of standard wedge-shaped teeth in terms of optimal length of the tooth cutting edge as D = Sp2.s_ni ? b where D is the optimal cutting edge length which provides steady single-stage wear of cutting elements; b is the actual (basic) width of the cutting edge of mass-produced wedge teeth; Sp2 is the area of the platform corresponding to the onset of steady wear; and 3 is the angle of the slope of the wear platform with respect to tooth longitudinal axis. Figure 3 offers technological concepts for reduction of cutting element wear dynamics based on mass-produced wedge-shaped teeth. The length of the expanded part of a tooth (D) should be not less than critical linear wear Ucr. After the expanded part is worn off, a tooth acquires the natural size of the platform corresponding to the second stage of steady wear. This design wears according to a linear relationship (Fig. 4) with an intensity equal to *._hat of the second stage of wear of mass-produced teeth (parallel portions of plots). After attaining maximum wear, teeth would have extended service life, expressed in an increased volume of excavated rock (AV). We should pay special attention to creating teeth with heightened wear resistance without modifying the basic dimensions or shape of the working component. This is important, because this form is easier and less expensive to manufac- ture. We developed the universal geometry for the working part of an excavator tooth based on calculations of the optimal width of the cutting edge while retaining the main dimensions of standard teeth designs.* The tooth with the new working component geometry (Fig. 5) has cutting edge 1, linear segment of back face 2, and curvilinear part 3. The front face is formed of two linear segments 4 and 5. The linear segment of back face 2 is parallel to tooth longitudinal axis 6, situated at distance I from the axis 6. The plane of the cutting edge is situated at an angle greater than 90 to the cutting plane. This helps form a steady compaction core on the plane Of the cutting edge, which partly protects it from wear. The cutting edge width is found from an empiric relationship: *We took the tooth design developed by the Institute of Heavy Machinery (Uralmash Production Association) for the basic prototype. !17 7 7 6 Fig. 5. Design of the working part of a tooth with optimal parameters (1 - cutting edge; 2 - linear portion of the back facet; 3 - curvilinear back facet; 4, 5 - segments of the front facet; 6 - longitudinal tooth axis; 7- wear platform; b = cuing edge width; a 1 = initial cutting angle; / = wedge angle; f = distance between wedge angle vertex and cutting edge; A and B = dimensions of linear segments of front and back facets, respectively; I = displacement of back facet segment from tooth axis; r = wear platform slope angle. b PI sin P,D. where b is an efficient width of the cutting edge; P1 is the excavator thrust force, which consists of the weight of bucket and the stick, and the force developed by the thrust mechanism; 3 is the slope angle of the wear platform relative to the tooth axis (or the linear segment of the back facet); D is the length of the cutting edge; P is the pressure on the wear platform at the beginning of the second stage; and i is the number of the teeth on the bucket. Cutting edge 1 should be at distance PI sin from the vertex of the wedge angle, where is the wedge angle of the working part of the tooth. Literary data indicate that a change of the cutting angle (more precisely, the back angle, which depends on the cutting angle) greatly affects the intrusion force of cutting elements. When the back angle of a tooth is increased, the energy capacity of its intrusion into the ground tends to decrease 7. We formulated the new tooth geometry taking this factor into account. Accordingly, linear segment 2 or back facet 3 is parallel to tooth axis 6, which allowed us to increase the back angle by a factor of 2.0-2.5 compared with the mass-produced model. To reduce the wear of the horizontal component of the cutting parameter of the excavator bucket, we shifted segment 2 of the back facet (and thus cutting edge 1) by value F from the tooth axis. This position of the elements of the tooth working component relative to the bucket cutting edge reduces the rate of wear because the distance between the tooth cutting plane and the bucket edge cutting plane is increased by 70-80% for a given length of the working tooth part protruding beyond the bucket. For this tooth design, we defined the relationship which can be used to calculate the dimensions of the working elements (Table 1). The length of the cutting edge (D) and the number of teeth (i)are chosen depending on the design of the excavator working element and the general machine specifications. Figure 6 shows theoretical curves of the formation of wear platform dimensions as a function of linear wear for an tKG-5A excavator. We can see that at zero wear the design with efficient parameters has a wear platform of = 50 ram. The design produced by the Uralmash Production Association attains the desired dimensions only after significant linear wear Ucr. With further wear (Fig. 6, zone II) the wear platform evolves less rapidly and the wear rate is approximately equal to that of 118 TABLE 1 Dimensions of working Calcualted parameters of IKG-5A Parameter component dements excavator tooth (4, 6) Cutting edge width : b = 28 mm Distance between vertex of tooth wedge angle and cutting edge Wedge angle of working part of tooth Wear platform slope angle Length of linear segment of back facet Length of linear segment of front facet Displacement of linear segment of back facet from tooth axis P-sin ? b- P.D.i P, .sin ? 1- P-D.i.tg = 33 . 37 7=40 . 45 . B= (4,5-5,8)b A= (3,0-4,0)b F= (2,0-3,5)b /-40 mm 13 = 35 ? = 40 B = t50 mm A = 100 :ram I = 70 mm the tooth made by Uralmash. In other words, during wear stages, wear resistance in zones I and II accumulates a certain reserve because the wear platform of a new tooth develops more rapidly in the initial stages (up to 50 mm). Subsequently, a change in wear platform size has no significant influence on wear rate. The principles for working component development and parameter evaluation which make it possible to predict and control the wear dynamics of cutting elements were tested in real industrial conditions. The Orotukan Mining Machine Factory of the Severovostokzoloto Gold Mining Production Association manufactured a test batch of excavator teeth follow- ing the new design. They were tested at the Yagodnin, Berelekh, and other mining enterprises. Valuable test results were obtained at the Korba facility at the Burkandya Mine (Berelekh Enterprise), where teeth were used to excavate highly abrasive frozen rocks consisting of granite, sandstone, and clay schist fragments at surrounding air temperatures of -45 C. Analysis of the design-related wear resistance of these experimental teeth indicated that, with the new working component geometry they experience single-stage wear with a resistance at least 40% higher than that of standard wedge teeth (Fig. 7). Experimental data were analyzed to define linear wear U as a function of work output V (thousand m 3) for new teeth. It was expressed by a first-degree regression equation: U = 8.57 + 5.g2V with a correlation coefficient of 0.980. The test confirmed the basic design principles of cutting elements based on an empiric relationship of the working element geometry with pressure on the wear platform expressed in terms of the force characteris- tics of excavator working components. Cutting edge width can be defined from b = Up= -sin,?, (1) where . is the wear is the wear platform for the onset of steady-state tooth wear, which is defined from a chart (see Fig. 1); 3 is the wear platform slope angle. Using the empiric relationship (see Table 1) and rearranging it with substitution of numeric values of P based on tests, we can estimate the cutting edge width as zD 1 b = 0,0536 D.i (2) which guarantees single-stage wear in any operation conditions. This is achieved because the expression contains a constant coefficient (pressure P = 12 MPa) which serves as the main criterion. At the beginning of linear wear, a specific pressure of 12 MPa operates on the wear platform of a cutting element designed according to this formula. This analytic technique is simple and reliable because it provides a wear resistance margin. This is important for excavator teeth used to cut bedrock, which are usually rapidly blunted. The sharpness of teeth in this case is of little practical importance because the wear intensity is extremely high. A similar positive effect of this method can be expected for teeth used to cut frozen rocks, which are characterized by strong resistance to intrusion leading to back facet wear and formation of a wear platform that sharpens the teeth (reduces cutting edge). 119 U, U 160 .m :00- a b 80- !- ee o/ o o 4 do 120 , mill 1 7 80- 40- -& lk g4 jk 7 X l,O00 m 3 Fig. 6 Fig. 7 Fig. 6. Variation of wear platform dimensions as a function of linear wear (a - formation of wear platform of cutting element with improved parame- ters of working part; b - formation of wear platform of Uralmash tooth design; I, II - development zones of wear platform before onset of linear wear (I) and during linear wear (II). Fig. 7. Design-controlled wear resistance of KG-5A excavator tooth (wear dynamics of new tooth design (a) and standard wedge tooth (b); 1, 2 - linear wear and wear platform formation, respectively). TABLE 2 Characteristic Excavator parameters: thurst mechansm force, MN weight of bucket with stick, tons total pressure force, MN number of teeth per bucket, units . Conventional teeth: basic length 0f. e2tt.iflg.-edge_, mm basic width of cutting edge, ram wedge-shaped teeth with yedge angle 20-30 teeth with curved back and front facets New design: calculated width of cutting edge, mm according to (i) according to (2) KG:5A(4,6) 0,205 20,0 0,405 Excavator EKG4I gKG-12,5 0,37 0,60 26,5 45,0 0,635 1,05 IKG-20 0,70 8i,5 i,565 t50 i2 (t6) 28 28 180 6(0) 34 37 t80 20 44 63 220 45, * 44 64, *Wedge angle of working component 38 . The teeth parameters formulated with our method and experimentally tested can be compared with currently used models on quarry excavators (Table 2). 120 The data in Table 2 dearly show that most current designs do not meet the needs of frozen rock excavation. Our studies and calculations confirm this observation. Standard teeth with increased cutting edge dimensions (given in parenthe-
