　　　摘要：冷冲模包括冲孔模、落料模、弯曲模、拉深模等，其运用较为广泛。冷冲压具有成本低，产品质量稳定，能加工多种性能、状态的零件。但是它的应用和普及也受到模具寿命和生产安全等方面的制约。本文作者从工艺的合理性出发，分析了电源外壳的结构、精度特点，以及在加工过程中的控制点，然后在满足加工精度的基础上，充分考虑节约成本，确定了电源外壳最优化的冲裁加工工序；紧接着通过分析各类模具的加工特点及内部结构，完成模具总体结构分析；随后作者完成毛坯尺寸、排样、工序尺寸、冲压压力、压力中心、模具工作部分尺寸等工艺计算，力争以最好的性价比设计了模具各零件的结构及装配关系，在此基础上确定模具了的外形，完成了装配图和非标准的零件图。最后确定压力机类型及主要参数。

　　　通过合理的设计，本模具满足生产与应用的要求。

关键词：冲孔模落料模弯曲模排样冲压压力压力机

　　　随着冲压工艺的广泛应用于国民经济中，再加上随着数控技术和机械CAD/CAM的发展，冷冲模的发展和迅速。它以生产率高、成本相对低廉被广泛应用。外国的冲压模发展水平相当高，无论是设计还是制造，都达到了较高的水平。

　　　冷冲模的设计包括冲裁模设计、弯曲模设计、拉伸、胀形等模具的设计。冷冲模的设计也用到材料学、机械设计、工程材料、特种加工等方面的知识。因此它是一门综合性很强的学科。

　　　经过了三个多月的学习，设计，绘图，我学会了冲裁的机理，冲压的基本理论；理解了冲裁力，卸料力等工艺参数的确定；熟悉了冲裁模的结构，内部的结构零件及其设计的控制点；同时对于弯曲模、冲孔模、拉深模、落料模的结构能够熟悉了解。

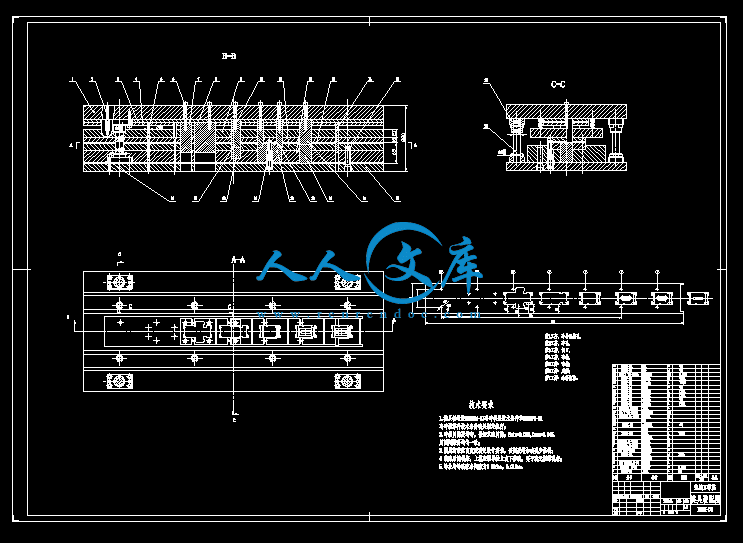

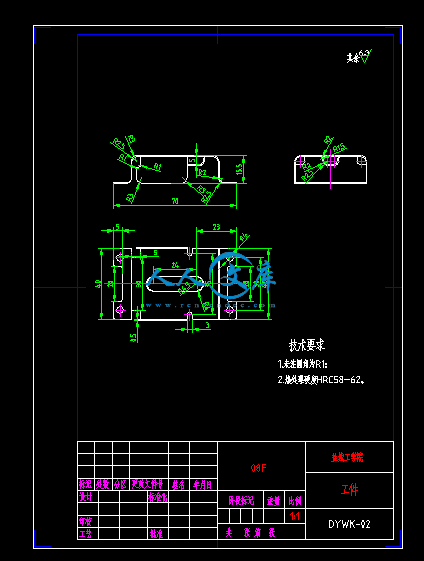

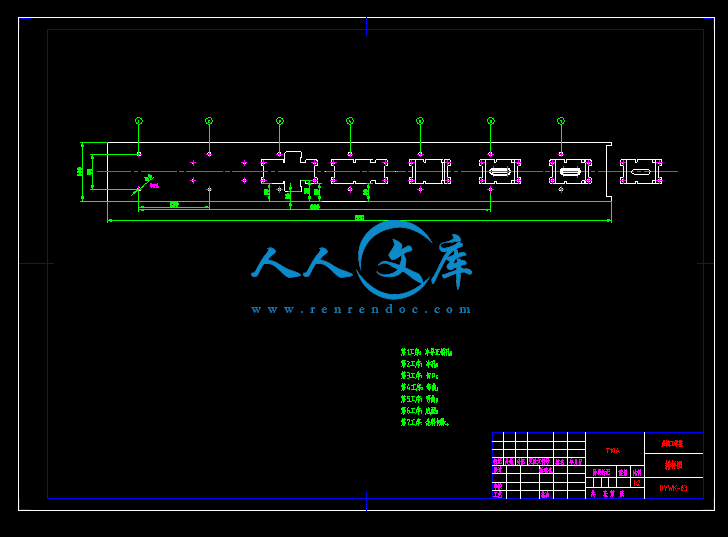

　　　电源外壳的加工包括了冲孔、落料、和弯曲的加工。通过对冲孔模、落料模、弯曲模的学习，分析和比较了各加工工艺方案，完成了模具总体的结构分析，进行毛坯尺寸、排样、工序尺寸、冲压压力、压力中心、模具工作部分尺寸等工艺计算。绘制了装配草图并进行零部件初步选用设计,然后确定外形尺寸,选择冲压设备,绘制总的装配图和非标准的零件图。

　　　落料和冲孔都属于冲裁模。冲裁模是从条料、带料或半成品上使材料延规定的轮廓产生分离的模具，随着科学技术的发展，冲压技术也向高速化、自动化、精密化的方向发展。冲裁模一般分为简单模、级进模、和复合模。简单模在国内应用比较广泛，它是在压力机的冲压行程中完成一次冲裁工艺。简单模也分为无导向简单模、导板式简单模，和导柱式简单模；级进模是在单工序冲模基础上发展的一种多工序、高效率冲模。在压力机一次冲程中，级进模在其有规律排列的几个工位上分别完成一部分冲裁工艺，在最后工位冲出完整的工件。由于级进模是连续冲压，因此生产效率高，适用于大规模生产，但是因为其结构复杂，定位要求比较严格，因此说制造成本高。复合模是指在压力机的一次冲压行程中，经一次送料定位，在模具的同一部位可以同时完成几道冲裁工序的模具称为复合模。复合模同连续模一样，也是在简单模的基础上发展的一种较先进的模具。与连续模相比，冲裁模冲裁件的位置精度高，对条料的定位精度要求低，复合模的轮廓尺寸较小。复合模虽然生产效率高，冲压件精度高，但模具结构复杂，制造精度要求高，适用于生产批量大，精度要求高，内外形尺寸差较大的冲裁件。

　　　在冲压模的设计过程中，还必须考虑到模具的成本，因此在进行选材，结构设计时，必须尽量不去设计形状复杂的结构，同时采用镶嵌式代替整体式的结构。针对模具的定位要求高的特点，在零件的设计中必须要有比较高的加工精度要求。总的一句话，必须在有高的模具寿命和满足加工精度要求的基础上，尽量降低模具材料的成本，简化模具的结构，这样才能有利于这个行业在我国的发展。




内容简介：: 仿真加工结果粗加工刀路图精加工刀具路线图仿真加工NC的程序% O0100 T02 G90 G80 G00 G17 G40 M23 G43 H02 Z15. S1000 M03 G00 X-13. Y1.5 Z15. M09 Z4.501 G01 Z2.501 F500 Z2.001 F150 Z-0.599 F200 X13. F500 G00 Z15. X-13. Z3.501 G01 Z1.501 F500 Z-0.599 F150 X-14. Y0.0 F200 X14. F500 G00 Z15. X-13. Z3.501 G01 Z1.501 F500 Z-0.599 F150 Y-1.5 F200 X13. F500 G00 Z15. X10.4 Z4.501 G01 Z2.501 F500 Z2.001 F150 Z-0.599 F200 X10.556 Y-1.797 X10.758 Y-2.065 X11.001 Y-2.296 X11.278 Y-2.486 X11.582 Y-2.627 X11.905 Y-2.718 X12.238 Y-2.755 X12.573 Y-2.737 X12.901 Y-2.665 X13.213 Y-2.541 X13.5 Y-2.368 X13.751 Y-2.188 F500 X13.981 Y-1.981 X14.188 Y-1.751 X14.368 Y-1.5 X14.5 Y-1.265 X14.584 Y-1.084 X14.657 Y-0.892 X14.715 Y-0.698 X14.758 Y-0.5 X14.791 Y-0.251 X14.803 Y0.0 X14.791 Y0.251 X14.758 Y0.5 X14.715 Y0.698 X14.657 Y0.892 X14.584 Y1.084 X14.5 Y1.265 X14.368 Y1.5 X14.188 Y1.751 X13.981 Y1.981 X13.751 Y2.188 X13.5 Y2.368 X13.265 Y2.5 X13.084 Y2.584 X12.892 Y2.657 X12.698 Y2.715 X12.5 Y2.758 X12.251 Y2.791 X12.001 Y2.803 X11.5 Y2.804 X-11.5 X-12.001 Y2.803 X-12.251 Y2.791 X-12.5 Y2.758 X-12.698 Y2.715 X-12.892 Y2.657 X-13.084 Y2.584 X-13.265 Y2.5 X-13.5 Y2.368 X-13.751 Y2.188 X-13.981 Y1.981 X-14.188 Y1.751 X-14.368 Y1.5 X-14.5 Y1.265 X-14.584 Y1.084 X-14.657 Y0.892 X-14.715 Y0.698 X-14.758 Y0.5 X-14.791 Y0.251 X-14.803 Y0.0 X-14.791 Y-0.251 X-14.758 Y-0.5 X-14.715 Y-0.698 X-14.657 Y-0.892 X-14.584 Y-1.084 X-14.5 Y-1.265 X-14.368 Y-1.5 X-14.188 Y-1.751 X-13.981 Y-1.981 X-13.751 Y-2.188 X-13.5 Y-2.368 X-13.265 Y-2.5 X-13.084 Y-2.584 X-12.892 Y-2.657 X-12.698 Y-2.715 X-12.5 Y-2.758 X-12.251 Y-2.791 X-12.001 Y-2.803 X-11.5 Y-2.804 X11.5 X12.001 Y-2.803 X12.251 Y-2.791 X12.5 Y-2.758 X12.698 Y-2.715 X12.892 Y-2.657 X13.084 Y-2.584 X13.265 Y-2.5 X13.5 Y-2.368 X13.599 Y-2.29 Z-0.553 X13.684 Y-2.197 Z-0.507 X13.754 Y-2.093 Z-0.462 X13.807 Y-1.978 Z-0.416 X13.841 Y-1.857 Z-0.37 G00 Z15. X-13.5 Y0.8 Z2.901 G01 Z0.901 F500 Z0.401 F150 Z-2.199 F200 X13.5 F500 G00 Z15. X-13. Z1.901 G01 Z-0.099 F500 Z-2.199 F150 Y-0.8 F200 X13. F500 G00 Z15. Z2.901 G01 Z0.901 F500 Z0.401 F150 Z-2.199 F200 X13.997 Y-1.5 X14.144 Y-1.282 F500 X14.277 Y-1.025 X14.377 Y-0.769 X14.447 Y-0.5 X14.485 Y-0.251 X14.497 Y0.0 X14.485 Y0.251 X14.447 Y0.5 X14.377 Y0.769 X14.277 Y1.025 X14.144 Y1.282 X13.997 Y1.5 X13.886 Y1.637 X13.766 Y1.766 X13.637 Y1.886 X13.5 Y1.997 X13.281 Y2.144 X13.025 Y2.278 X12.769 Y2.376 X12.5 Y2.448 X12.252 Y2.485 X12.001 Y2.499 X11.5 Y2.5 X-11.5 X-12.001 Y2.499 X-12.252 Y2.485 X-12.5 Y2.448 X-12.769 Y2.376 X-13.025 Y2.278 X-13.281 Y2.144 X-13.5 Y1.997 X-13.637 Y1.886 X-13.766 Y1.766 X-13.886 Y1.637 X-13.997 Y1.5 X-14.144 Y1.282 X-14.277 Y1.025 X-14.377 Y0.769 X-14.447 Y0.5 X-14.485 Y0.251 X-14.497 Y0.0 X-14.485 Y-0.251 X-14.447 Y-0.5 X-14.377 Y-0.769 X-14.277 Y-1.025 X-14.144 Y-1.282 X-13.997 Y-1.5 X-13.886 Y-1.637 X-13.766 Y-1.766 X-13.637 Y-1.886 X-13.5 Y-1.997 X-13.281 Y-2.144 X-13.025 Y-2.278 X-12.769 Y-2.376 X-12.5 Y-2.448 X-12.252 Y-2.485 X-12.001 Y-2.499 X-11.5 Y-2.5 X11.5 X12.001 Y-2.499 X12.252 Y-2.485 X12.5 Y-2.448 X12.769 Y-2.376 X13.025 Y-2.278 X13.281 Y-2.144 X13.5 Y-1.997 X13.637 Y-1.886 X13.766 Y-1.766 X13.886 Y-1.637 X13.997 Y-1.5 X14.06 Y-1.391 Z-2.153 X14.105 Y-1.273 Z-2.107 X14.131 Y-1.15 Z-2.062 X14.137 Y-1.024 Z-2.016 X14.124 Y-0.899 Z-1.97 G00 Z15. X-13. Y0.7 Z1.301 G01 Z-0.699 F500 Z-1.199 F150 Z-3.799 F200 X13. F500 G00 Z15. X-12.5 Z0.301 G01 Z-1.699 F500 Z-3.799 F150 Y-0.7 F200 X12.5 F500 G00 Z15. Z1.301 G01 Z-0.699 F500 Z-1.199 F150 Z-3.799 F200 X13.278 Y-1.709 X13.517 Y-1.5 F500 X13.702 Y-1.287 X13.857 Y-1.05 X13.985 Y-0.783 X14.074 Y-0.5 X14.119 Y-0.252 X14.134 Y0.0 X14.119 Y0.252 X14.074 Y0.5 X13.987 Y0.777 X13.862 Y1.04 X13.706 Y1.282 X13.517 Y1.5 X13.287 Y1.702 X13.05 Y1.857 X12.783 Y1.985 X12.5 Y2.074 X12.253 Y2.118 X12.002 Y2.134 X11.5 Y2.135 X-11.5 X-12.002 Y2.134 X-12.253 Y2.119 X-12.5 Y2.074 X-12.773 Y1.989 X-13.031 Y1.868 X-13.278 Y1.709 X-13.517 Y1.5 X-13.702 Y1.287 X-13.857 Y1.05 X-13.985 Y0.783 X-14.074 Y0.5 X-14.119 Y0.252 X-14.134 Y0.0 X-14.119 Y-0.252 X-14.074 Y-0.5 X-13.989 Y-0.773 X-13.868 Y-1.031 X-13.709 Y-1.278 X-13.517 Y-1.5 X-13.287 Y-1.702 X-13.05 Y-1.857 X-12.783 Y-1.985 X-12.5 Y-2.074 X-12.253 Y-2.118 X-12.002 Y-2.134 X-11.5 Y-2.135 X11.5 X12.002 Y-2.134 X12.253 Y-2.119 X12.5 Y-2.074 X12.773 Y-1.989 X13.031 Y-1.868 X13.278 Y-1.709 X13.372 Y-1.625 Z-3.753 X13.451 Y-1.527 Z-3.707 X13.515 Y-1.418 Z-3.662 X13.56 Y-1.301 Z-3.616 X13.587 Y-1.178 Z-3.57 G00 Z15. X-23.5 Y-11.5 Z4.501 G01 Z2.501 F500 Z2.001 F150 Z-0.599 F200 X-22.606 Y-11.276 X-22.48 Y-11.233 X-22.364 Y-11.171 X-22.259 Y-11.089 X-22.169 Y-10.992 X-22.097 Y-10.881 X-22.044 Y-10.76 X-22.011 Y-10.632 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-0.553 X-22.059 Y-10.256 Z-0.507 X-22.116 Y-10.144 Z-0.462 X-22.19 Y-10.042 Z-0.416 X-22.279 Y-9.953 Z-0.37 G00 Z15. X-22.5 Y12.5 Z5.1 G01 Z3.1 F500 Z2.6 F150 Z0.0 F200 X-21.436 Y11.577 X-21. Y11.447 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y9.921 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y8.395 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y6.868 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y5.342 F200 X21. F500 G00 Z15. X14. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y3.816 F200 X21. F500 G00 Z15. X15.5 Z4.1 G01 Z2.1 F500 Z0.0 F150 Y2.289 F200 X21. F500 G00 Z15. X16.5 Z4.1 G01 Z2.1 F500 Z0.0 F150 Y0.763 F200 X21. F500 G00 Z15. X16.5 Z4.1 G01 Z2.1 F500 Z0.0 F150 X16. Y-0.763 F200 X21. F500 G00 Z15. X16. Z4.1 G01 Z2.1 F500 Z0.0 F150 X15. Y-2.289 F200 X21. F500 G00 Z15. X15. Z4.1 G01 Z2.1 F500 Z0.0 F150 X13. Y-3.816 F200 X21. F500 G00 Z15. X-21. Y5.342 Z4.1 G01 Z2.1 F500 Z0.0 F150 Y3.816 F200 X-14. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y2.289 F200 X-15.5 F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y0.763 F200 X-16.5 F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-0.763 F200 X-16. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-2.289 F200 X-15. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-3.816 F200 X-13. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-5.342 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-6.868 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-8.395 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-9.921 F200 X21. F500 G00 Z15. X-21. Z4.1 G01 Z2.1 F500 Z0.0 F150 Y-11.447 F200 X21. F500 G00 Z15. Y-14. Z5.1 G01 Z3.1 F500 Z2.6 F150 Z0.0 F200 X21.527 Y-13.88 X21.656 Y-13.839 X21.775 Y-13.778 X21.883 Y-13.697 X21.975 Y-13.599 X22.05 Y-13.487 X22.105 Y-13.364 X22.139 Y-13.234 X22.15 Y-13.1 Y-7.5 F500 Y13.1 X22.1 Y13.15 X-22.1 X-22.15 Y13.1 F200 Y-12.5 Y-13.1 F500 X-22.1 Y-13.15 X22.1 X22.125 Y-13.125 X22.15 Y-13.1 X22.009 Y-12.959 Z0.073 G00 Z15. X13. Y-1.5 Z5.1 G01 Z3.1 F500 Z2.6 F150 Z0.0 F200 X13.78 Y-1.893 X13.837 Y-1.928 X13.887 Y-1.972 X13.93 Y-2.023 X13.963 Y-2.081 X13.986 Y-2.144 X13.998 Y-2.21 X13.999 Y-2.276 X13.989 Y-2.342 X13.968 Y-2.406 X13.937 Y-2.465 X13.897 Y-2.518 X13.848 Y-2.564 X13.792 Y-2.601 X13.731 Y-2.628 X13.667 Y-2.644 X13.6 Y-2.65 X13.5 F500 X12.342 Y-3.35 X12.2 X12.156 Y-3.394 X11.85 Y-3.5 X11.5 Y-3.65 X11.369 Y-3.681 X11.3 Y-3.75 X10.884 X10.5 Y-3.85 X-10.5 X-11.5 Y-3.65 X-11.6 X-11.67 Y-3.58 X-11.85 Y-3.5 X-12.5 Y-3.25 X-13.75 Y-2.5 X-14.125 Y-2.125 X-14.5 Y-1.65 X-14.65 Y-1.5 X-14.91 Y-1.14 X-15.125 Y-0.825 X-15.178 Y-0.672 X-15.25 Y-0.6 Y-0.5 X-15.45 Y0.0 Y0.2 X-15.379 Y0.271 X-15.25 Y0.5 X-14.65 Y1.5 X-14.5 Y1.65 X-14.125 Y2.125 X-13.75 Y2.5 X-13.5 Y2.65 X-13.2 Y2.95 X-13. X-12.7 Y3.25 X-12.5 X-12.342 Y3.35 X-12.2 X-12.156 Y3.394 X-11.85 Y3.5 X-11.67 Y3.58 X-11.6 Y3.65 X-11.5 X-10.5 Y3.85 X10.5 X11.5 Y3.65 X11.657 Y3.55 X11.8 X11.85 Y3.5 X12.5 Y3.25 X13.75 Y2.5 X14.125 Y2.125 X14.5 Y1.65 X14.65 Y1.5 X14.892 Y1.158 X15.063 Y0.787 X15.25 Y0.6 Y0.5 X15.45 Y0.0 Y-0.2 X15.379 Y-0.271 X15.25 Y-0.5 X14.65 Y-1.5 X14.5 Y-1.65 X14.125 Y-2.125 X13.6 Y-2.65 X13.526 Y-2.752 Z0.046 X13.469 Y-2.864 Z0.092 X13.43 Y-2.984 Z0.137 X13.41 Y-3.108 Z0.183 Y-3.234 Z0.229 G00 Z15. X-23.5 Y-11. Z0.801 G01 Z-1.199 F500 Z-1.699 F150 Z-2.199 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-2.153 X-22.059 Y-10.256 Z-2.107 X-22.116 Y-10.144 Z-2.062 X-22.19 Y-10.042 Z-2.016 X-22.279 Y-9.953 Z-1.97 G00 Z15. X-23.5 Y-11. Z-0.799 G01 Z-2.799 F500 Z-3.299 F150 Z-3.799 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-3.753 X-22.059 Y-10.256 Z-3.707 X-22.116 Y-10.144 Z-3.662 X-22.19 Y-10.042 Z-3.616 X-22.279 Y-9.953 Z-3.57 G00 Z15. X-23.5 Y-11. Z-2.399 G01 Z-4.399 F500 Z-4.899 F150 Z-5.399 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-5.353 X-22.059 Y-10.256 Z-5.307 X-22.116 Y-10.144 Z-5.262 X-22.19 Y-10.042 Z-5.216 X-22.279 Y-9.953 Z-5.17 G00 Z15. X-23.5 Y-11. Z-3.999 G01 Z-5.999 F500 Z-6.499 F150 Z-6.999 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-6.953 X-22.059 Y-10.256 Z-6.907 X-22.116 Y-10.144 Z-6.862 X-22.19 Y-10.042 Z-6.816 X-22.279 Y-9.953 Z-6.77 G00 Z15. X-23.5 Y-11. Z-5.599 G01 Z-7.599 F500 Z-8.099 F150 Z-8.599 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-8.553 X-22.059 Y-10.256 Z-8.507 X-22.116 Y-10.144 Z-8.462 X-22.19 Y-10.042 Z-8.416 X-22.279 Y-9.953 Z-8.37 G00 Z15. X-23.5 Y-11. Z-7.199 G01 Z-9.199 F500 Z-9.699 F150 Z-10.199 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-10.153 X-22.059 Y-10.256 Z-10.107 X-22.116 Y-10.144 Z-10.062 X-22.19 Y-10.042 Z-10.016 X-22.279 Y-9.953 Z-9.97 G00 Z15. X-23.5 Y-11. Z-8.799 G01 Z-10.799 F500 Z-11.299 F150 Z-11.799 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-11.753 X-22.059 Y-10.256 Z-11.707 X-22.116 Y-10.144 Z-11.662 X-22.19 Y-10.042 Z-11.616 X-22.279 Y-9.953 Z-11.57 G00 Z15. X-23.5 Y-11. Z-10.399 G01 Z-12.399 F500 Z-12.899 F150 Z-13.399 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-13.353 X-22.059 Y-10.256 Z-13.307 X-22.116 Y-10.144 Z-13.262 X-22.19 Y-10.042 Z-13.216 X-22.279 Y-9.953 Z-13.17 G00 Z15. X-23.5 Y-11. Z-11.999 G01 Z-13.999 F500 Z-14.499 F150 Z-14.999 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-14.953 X-22.059 Y-10.256 Z-14.907 X-22.116 Y-10.144 Z-14.862 X-22.19 Y-10.042 Z-14.816 X-22.279 Y-9.953 Z-14.77 G00 Z15. X-23.5 Y-11. Z-13.599 G01 Z-15.599 F500 Z-16.099 F150 Z-16.599 F200 X-22.547 Y-10.858 X-22. Y-10.5 Y11.002 F500 X-21.984 Y11.253 X-21.936 Y11.5 X-21.865 Y11.724 X-21.767 Y11.937 X-21.645 Y12.138 X-21.5 Y12.323 X-21.323 Y12.5 X-21.138 Y12.645 X-20.937 Y12.767 X-20.724 Y12.865 X-20.5 Y12.936 X-20.253 Y12.984 X-20.002 Y13. X20.002 X20.253 Y12.984 X20.5 Y12.936 X20.724 Y12.865 X20.937 Y12.767 X21.138 Y12.645 X21.323 Y12.5 X21.5 Y12.323 X21.645 Y12.138 X21.767 Y11.937 X21.865 Y11.724 X21.936 Y11.5 X21.984 Y11.253 X22. Y11.002 Y-11.002 X21.984 Y-11.253 X21.936 Y-11.5 X21.865 Y-11.724 X21.767 Y-11.937 X21.645 Y-12.138 X21.5 Y-12.323 X21.323 Y-12.5 X21.138 Y-12.645 X20.937 Y-12.767 X20.724 Y-12.865 X20.5 Y-12.936 X20.253 Y-12.984 X20.002 Y-13. X-20.002 X-20.253 Y-12.984 X-20.5 Y-12.936 X-20.724 Y-12.865 X-20.937 Y-12.767 X-21.138 Y-12.645 X-21.323 Y-12.5 X-21.5 Y-12.323 X-21.645 Y-12.138 X-21.767 Y-11.937 X-21.865 Y-11.724 X-21.936 Y-11.5 X-21.984 Y-11.253 X-22. Y-11.002 Y-10.5 X-22.02 Y-10.376 Z-16.553 X-22.059 Y-10.256 Z-16.507 X-22.116 Y-10.144 Z-16.462 X-22.19 Y-10.042 Z-16.416 X-22.279 Y-9.953 Z-16.37 G00 Z15. X-23.5 Y-11. Z-15.199 G01 Z-1
