abaqus单元属性大总结

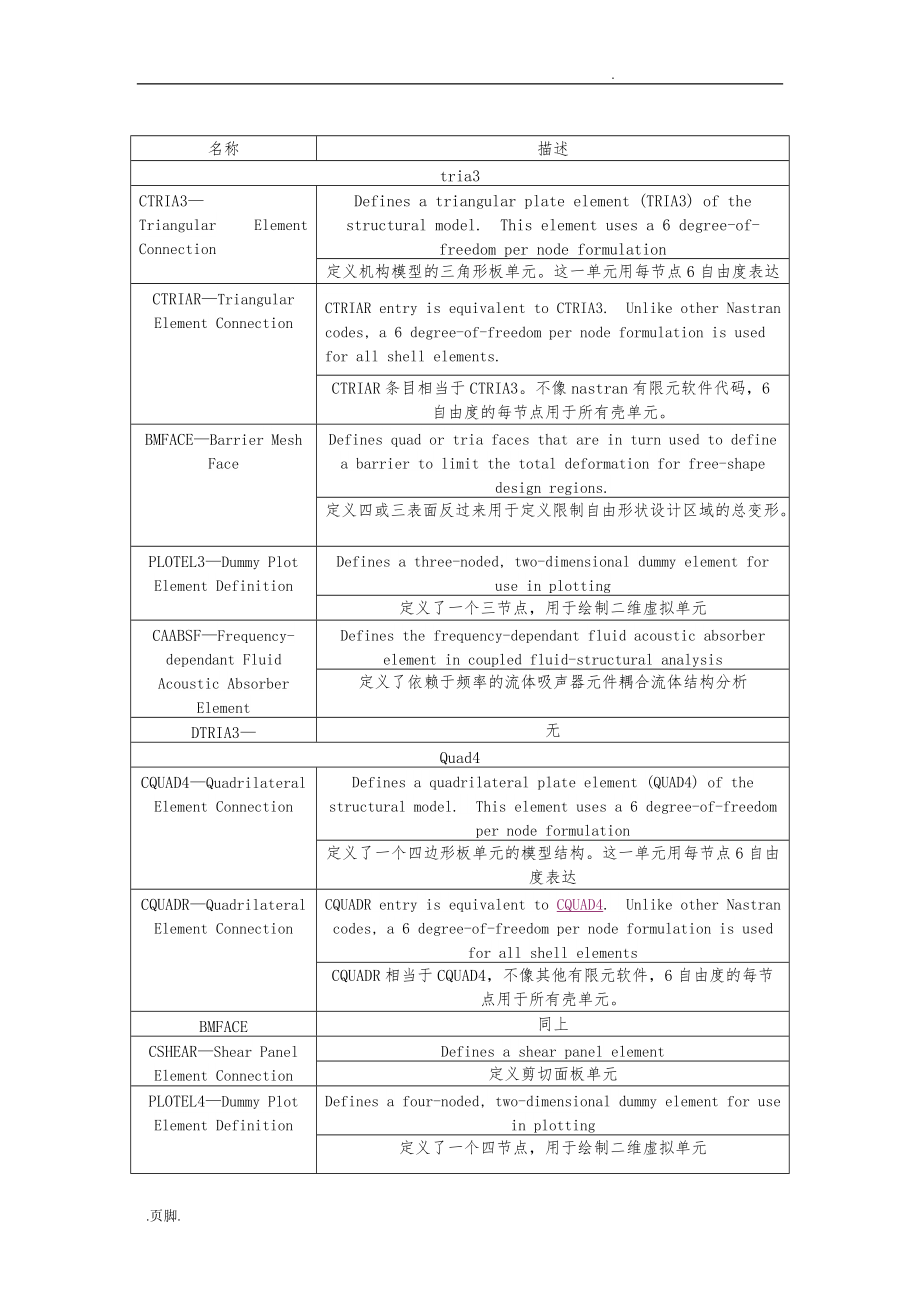

1、 .名称描述tria3CTRIA3Triangular Element ConnectionDefines a triangular plate element (TRIA3) of the structural model. This element uses a 6 degree-of-freedom per node formulation定义机构模型的三角形板单元。这一单元用每节点6自由度表达CTRIARTriangular Element ConnectionCTRIAR entry is equivalent to CTRIA3. Unlike other Nastran code

2、s, a 6 degree-of-freedom per node formulation is used for all shell elements.CTRIAR条目相当于CTRIA3。不像nastran有限元软件代码，6自由度的每节点用于所有壳单元。BMFACEBarrier Mesh FaceDefines quad or tria faces that are in turn used to define a barrier to limit the total deformation for free-shape design regions.定义四或三表面反过来用于定义限制自由形

3、状设计区域的总变形。PLOTEL3Dummy Plot Element DefinitionDefines a three-noded, two-dimensional dummy element for use in plotting定义了一个三节点，用于绘制二维虚拟单元CAABSFFrequency-dependant Fluid Acoustic Absorber ElementDefines the frequency-dependant fluid acoustic absorber element in coupled fluid-structural analysis定义了依赖于

4、频率的流体吸声器元件耦合流体结构分析DTRIA3无Quad4CQUAD4Quadrilateral Element ConnectionDefines a quadrilateral plate element (QUAD4) of the structural model. This element uses a 6 degree-of-freedom per node formulation定义了一个四边形板单元的模型结构。这一单元用每节点6自由度表达CQUADRQuadrilateral Element ConnectionCQUADR entry is equivalent toCQU

5、AD4. Unlike otherNastran codes, a 6 degree-of-freedom per node formulation is used for all shell elementsCQUADR相当于CQUAD4，不像其他有限元软件，6自由度的每节点用于所有壳单元。BMFACE同上CSHEARShear Panel Element ConnectionDefines a shear panel element定义剪切面板单元PLOTEL4Dummy Plot Element DefinitionDefines a four-noded, two-dimensiona

6、l dummy element for use in plotting定义了一个四节点，用于绘制二维虚拟单元CAABSF同上DQUAD4无Tetra4CTETRAFour-sided Solid Element with four or ten grid pointsDefines the connections of the CTETRA element定义了CTETRA单元的连接DTETRA4无Pyramid5CPYRA_S3/S3R 单元可以作为通用壳单元使用。由于单元中的常应变近似，需要划分较细的网格来模拟弯曲变形或高应变梯度。S4R 单元性能稳定，适用范围很广对于复合材料，为模拟剪切

7、变形的影响，应使用适于厚壳的单元（例如S4、S4R、S3、S3R、S8R），并要注意检查截面是否保持平面。对于几何非线性分析，在ABAQUS/Standard中的小应变壳单元（S4R5, S8R, S8R5, S8RT, S9R5, STRI3, 和 STRI65）使用总体拉格朗日应变算法，应力应变可以相对于参考构型的材料方向改定。垫片单元是小应变小位移单元，默认情况下其应力应变值也是以初始参考构型定义的行为方向输出。对于有限膜应变单元（所有的膜单元以及S3/S3R, S4, S4R, SAX,和 SAXA单元）和在ABAQUS/Explicit中的小应变单元，其材料方向是随着曲面的平均刚性旋

8、转运动而变以形成当前构型的材料方向。此时这些单元的应力应变则是根据当前的参考构型中的材料方向给出的。（更详细地说明可以参考ABAQUS相关手册）。用户可以决定与*section print和*section file相关的局部坐标系统是固定不动还是随着曲面的平均刚性运动而旋转。Tria3S33-node triangular general-purpose shell, finite membrane strains (identical toelement S3R)三节点三角形通用壳，有限莫应变（相当于S3R特性）DS33-nodeheattransfertriangularshell三节点

9、传热三角形壳STRI33-nodetriangularfacetthinshell三节点三角形面薄壳S3R3-nodetriangulargeneral-purposeshell,finitemembranestrains(identicaltoelementS3)3节点三角形通用壳，有限膜应变（与S3特性相同）M3D33-nodetriangularmembrane3节点三角形膜S3RT3-nodethermallycoupledtriangulargeneral-purposeshell,finitemembranestrains(identicaltoelementS3T)3节点热耦合三

10、角通用壳，有限膜应变（与S3T单元相同）SFM3D33-nodetriangularsurfaceelement三节点三角形面单元F3D3R3D33-node3Drigidtriangularfacet三节点三维刚性三角切面ACIN3D33-nodelinear3Dacousticinfiniteelement三节点的线性三维声无限元Quad4S44-nodegeneral-purposeshell,finitemembranestrains4节点的通用壳，有限膜应变S4R54-nodethinshell,reducedintegration,hourglasscontrol,usingfiv

11、edegreesoffreedompernode4节点壳薄，缩减积分，沙漏控制，每个节点使用5个自由度M3D44-nodequadrilateralmembrane4节点四边形膜M3D4R4-nodequadrilateralmembrane,reducedintegration,hourglasscontrol4节点四边形膜，缩减积分，沙漏控制SFM3D44-nodequadrilateralsurfaceelement4节点四边形面单元SFM3D4R4-nodequadrilateralsurfaceelement,reducedintegration4节点四边形曲面单元，缩减积分R3D4

12、4-node3Dbilinearrigidquadrilateral4节点三维双线性刚性四边形DS44-nodeheattransferquadrilateralshell4节点传热四边形壳F3D4ACIN3D44-nodelinear3Dacousticinfiniteelement4节点线性三维声无限元S4R4-nodegeneral-purposeshell,reducedintegration,hourglasscontrol,finitemembranestrains4节点的通用外壳，缩减积分，沙漏控制，有限膜应变S4RT4-nodethermallycoupledgeneral-p

13、urposeshell,reducedintegration,hourglasscontrol,finitemembranestrains4节点热耦合通用外壳，缩减积分，沙漏控制，有限膜应变GK3D4L4-nodethree-dimensionallinegasketelement4节点三维线密封单元GK3D4LN4-nodethree-dimensionallinegasketelementwiththickness-directionbehavioronly只有厚度方向反应的4节点三维线密封单元Tetra4C3D44-nodelineartetrahedron4节点线性四面体C3D4H4-

14、nodelineartetrahedron,hybrid,linearpressure4节点线性四面体，混合，线压力DC3D44-nodelinearheattransfertetrahedron4节点的线性传热四面体C3D4E4-nodelinearpiezoelectrictetrahedron4节点线性压电四面体DC3D4E4-nodelinearcoupledthermal-electricaltetrahedron4节点的线性耦合热电四面体AC3D44-nodelinearacoustictetrahedron4节点线性声学四面体Pyramid5C3D88-nodelinearbri

15、ck8节点线性实体C3D8T8-nodethermallycoupledbrick,trilineardisplacementandtemperature8节点热耦合实体，三线性位移和温度C3D8H8-nodelinearbrick,hybrid,constantpressure8节点线性实体，混合，恒压C3D8HT8-nodethermallycoupledbrick,trilineardisplacementandtemperature,hybrid,constantpressure8节点热耦合实体，三线性位移和温度，混合，恒压C3D8I8-nodelinearbrick,incompat

16、iblemodes8节点线性实体，非协调模式C3D8IH8-nodelinearbrick,hybrid,linearpressure,incompatiblemodes8节点线性实体，混合，线压力，非协调模型C3D8R8-nodelinearbrick,reducedintegration,hourglasscontrol8节点线性实体，缩减积分，沙漏控制C3D8RH8-nodelinearbrick,hybrid,constantpressure,reducedintegration,hourglasscontrol8节点线性实体，混合，恒压，缩减积分，沙漏控制C3D8E8-nodelin

17、earpiezoelectricbrick8节点线性压电实体C3D66-nodelineartriangularprism6节点线性三角形棱柱C3D6H6-nodelineartriangularprism,hybrid,constantpressure6节点线性三角形棱柱，混合，恒定压力C3D6E6-nodelinearpiezoelectrictriangularprism6节点线性压电三角形棱柱C3D8RT8-nodethermallycoupledbrick,trilineardisplacementandtemperature,reducedintegration,hourglass

18、control8节点热耦合实体，三线性位移和温度，缩减积分，沙漏控制C3D8RHT8-nodethermallycoupledbrick,trilineardisplacementandtemperature,reducedintegration,hourglasscontrol,hybrid,constantpressure8节点热耦合实体，三线性位移和温度，缩减积分，沙漏控制，混合动力，恒定压力Penta6AC3D6 6-nodelinearacoustictriangularprism6节点线性声学三角形棱柱C3D66-nodelineartriangularprism6节点线性三角形棱

19、柱C3D6H6-nodelineartriangularprism,hybrid,constantpressure6节点线性三角形棱柱，混合动力，恒定压力DC3D66-nodelinearheattransfertriangularprism6节点线性传热三角形棱柱C3D6E6-nodelinearpiezoelectrictriangularprism6节点线性压电三角形棱柱DC3D6E6-nodelinearcoupledthermal-electricaltriangularprism6节点线性耦合热电三角形棱柱SC6R6-nodetriangularin-planecontinuums

20、hellwedge,general-purposecontinuumshell,finitemembranestrains6节点三角形平面内的连续体壳楔，通用的连续体壳，有限膜应变COH3D66-nodethree-dimensionalcohesiveelement6节点三维粘性单元GK3D66-nodethree-dimensionalgasketelement6节点三维衬垫单元GK3D6N6-nodethree-dimensionalgasketelementwiththickness-directionbehavioronly6节点三维衬垫单元只有厚度方向特性SC6RT6-nodeli

21、neardisplacementandtemperature,triangularin-planecontinuumshellwedge,general-purposecontinuumshell,finitemembranestrains6节点的直线位移和温度，三角形平面内的连续体楔，通用连续体壳，有限膜应变Hex8C3D8I8-nodelinearbrick,incompatiblemodes8节点线性实体，非协调模型C3D88-nodelinearbrick8节点线性实体C3D8T8-nodethermallycoupledbrick,trilineardisplacementandte

22、mperature8节点热耦合实体，三线位移和温度C3D8H8-nodelinearbrick,hybrid,constantpressure8节点的线性实体，混合动力，恒定压力C3D8HT8-nodethermallycoupledbrick,trilineardisplacementandtemperature,hybrid,constantpressure8节点热耦合实体，三线性位移和温度，混合动力，恒定压力C3D8IH8-nodelinearbrick,hybrid,linearpressure,incompatiblemodes8节点的线性实体，混合动力，线压力，非协调模型C3D8R

23、8-nodelinearbrick,reducedintegration,hourglasscontrol8节点的线性实体，缩减积分，沙漏控制C3D8RH8-nodelinearbrick,hybrid,constantpressure,reducedintegration,hourglasscontrol8节点的线性实体，混合动力，恒定压力，缩减积分，沙漏控制C3D8E8-nodelinearpiezoelectricbrick8节点线性压电实体DC3D8 8-nodelinearheattransferbrick8节点线性传热实体AC3D88-nodelinearacousticbrick

24、8节点线性声学实体DC3D8E8-nodelinearcoupledthermal-electricalbrick8节点线性耦合热电实体DCC3D88-nodeconvection/diffusionbrick8节点传递/扩散实体DCC3D8D8-nodeconvection/diffusionbrick,dispersioncontrol8节点传递/扩散实体，扩散性控制SC8R8-nodequadrilateralin-planegeneral-purposecontinuumshell,reducedintegrationwithhourglasscontrol,finitemembran

25、estrains8节点四边形平面内通用连续外壳，具有沙漏控制和缩减积分，有限膜应变COH3D88-nodethree-dimensionalcohesiveelement8节点三维粘性单元GK3D88-nodethree-dimensionalgasketelement8节点三维衬垫单元GK3D8N8-nodethree-dimensionalgasketelementwiththickness-directionbehavioronly8节点三维衬垫单元只有厚度方向的特性C3D8P8-nodebrick,trilineardisplacement,trilinearporepressure8

26、节点实体，三线位移，三线孔压C3D8PH8-nodebrick,trilineardisplacement,trilinearporepressure,hybrid,constantpressure8节点实体，三线位移，三线孔压，混合动力，恒定压力C3D8RP8-nodebrick,trilineardisplacement,trilinearporepressure,reducedintegration8节点实体，三线位移，三线孔隙压力，缩减积分C3D8RPH8-nodebrick,trilineardisplacement,trilinearporepressure,reducedinte

27、gration,hybrid,constantpressure8节点实体，三线位移，三线孔隙压力，缩减积分，混合动力，恒定压力C3D8RT8-nodethermallycoupledbrick,trilineardisplacementandtemperature,reducedintegration,hourglasscontrol8节点热耦合实体，三线位移和温度，缩减积分，沙漏控制C3D8RHT8-nodethermallycoupledbrick,trilineardisplacementandtemperature,reducedintegration,hourglasscontrol

28、,hybrid,constantpressure8节点热耦合实体，三线位移和温度，缩减积分，沙漏控制，混合动力，恒定压力SC8RT8-nodelineardisplacementandtemperature,quadrilateralin-planegeneral-purposecontinuumshell,reducedintegrationwithhourglasscontrol,finitemembranestrains8节点的线性位移和温度，四边形平面内通用的连续体外壳，具有沙漏控制和缩减积分，有限膜应变CCL1212-nodecylindricalbrick12节点的圆柱形实体Tri

29、a6STRI656-nodetriangularthinshell,usingfivedegreesoffreedompernode6节点三角形薄壳，每个节点有五个自由度DS66-nodeheattransfertriangularshell6节点传热三角形壳M3D6 6-nodetriangularmembrane6节点三角形膜SFM3D6 6-nodetriangularsurfaceelement6节点三角形面单元Quad8S8R8-nodedoublycurvedthickshell,reducedintegration8节点双重弯曲厚壳，缩减积分S8R58-nodedoublycur

30、vedthinshell,reducedintegration,usingfivedegreesoffreedompernode8节点双重弯曲厚壳，缩减积分，每节点有五个自由度S8RT8-nodethermallycoupledquadrilateralgeneralthickshell,biquadraticdisplacement,bilineartemperatureintheshellsurface8节点热耦合四边形通用厚壳，四次位移，外壳表面的线性位移DS88-nodeheattransferquadrilateralshell8节点传热四边形壳M3D88-nodequadrilat

31、eralmembrane8节点四边形膜M3D8R8-nodequadrilateralmembrane,reducedintegration8节点四边形膜，缩减积分SFM3D8 8-nodequadrilateralsurfaceelement8节点四边形面单元SFM3D8R8-nodequadrilateralsurfaceelement,reducedintegration8节点四边形曲面单元，缩减积分Tetra10C3D1010-nodequadratictetrahedron10节点二次四面体C3D10H10-nodequadratictetrahedron,hybrid,consta

32、ntpressure10节点二次四面体，混合动力，恒定压力C3D10M10-nodemodifiedtetrahedron,hourglasscontrol10节点修饰四面体，沙漏控制C3D10MH10-nodemodifiedquadratictetrahedron,hybrid,linearpressure,hourglasscontrol10节点修饰四面体，混合动力，线压力，沙漏控制DC3D1010-nodequadraticheattransfertetrahedron10节点二次传热四面体C3D10E10-nodequadraticpiezoelectrictetrahedron10

33、节点二次压电四面体DC3D10E10-nodequadraticcoupledthermal-electricaltetrahedron10节点二次热电耦合四面体AC3D1010-nodequadraticacoustictetrahedron10节点二次声学四面体C3D10MP10-nodemodifieddisplacementandporepressuretetrahedron,hourglasscontrol10节点修饰位移和孔隙压力四面体，沙漏控制C3D10MPH10-nodemodifieddisplacementandporepressuretetrahedron,hybrid,

34、linearpressure,hourglasscontrol10节点修饰位移和孔隙压力四面体，混合动力，线压力，沙漏控制C3D10MT10-nodethermallycoupledmodifiedquadratictetrahedron,hourglasscontrol10节点热耦合修饰二次四面体，沙漏控制C3D10I10-nodegeneral-purposequadratictetrahedron,improvedsurfacestressvisualization10节点的通用二次四面体，提高表面应力形象化Pyramid13C3D2020-nodequadraticbrick20节点二

35、次实体C3D20H20-nodequadraticbrick,hybrid,linearpressure20节点二次实体，混合动力，线压力C3D20R20-nodequadraticbrick,reducedintegration20节点二次实体，缩减积分C3D20RH20-nodequadraticbrick,hybrid,linearpressure,reducedintegration20节点二次实体，混合动力，线压力，缩减积分C3D20E20-nodequadraticpiezoelectricbrick20节点二次压电实体C3D20RE20-nodequadraticpiezoele

36、ctricbrick,reducedintegration20节点二次压电实，缩减积分C3D20T20-nodethermallycoupledbrick,triquadraticdisplacement,trilineartemperature20节点热耦合实体，三重二次位移，三线性温度C3D20HT20-nodethermallycoupledbrick,triquadraticdisplacement,trilineartemperature,hybrid,linearpressure20节点热耦合实体，三重二次位移，三线温度，混合动力，线压力C3D20RT20-nodethermall

37、ycoupledbrick,triquadraticdisplacement,trilineartemperature,reducedintegration20节点热耦合实体，三重二次位移，三线温度，缩减积分C3D20RHT20-nodethermallycoupledbrick,triquadraticdisplacement,trilineartemperature,hybrid,linearpressure,reducedintegration20节点热耦合实体，三重二次位移，三线温度，混合动力，线压力，缩减积分C3D1515-nodequadratictriangularprism15

38、节点二次三角形棱柱C3D15H15-nodequadratictriangularprism,hybrid,linearpressure15节点二次三角形棱柱，混合动力，线压力C3D15E15-nodequadraticpiezoelectrictriangularprism15节点二次压电三角形棱柱Penta15C3D1515-nodequadratictriangularprism15节点二次三角形棱柱C3D15H15-nodequadratictriangularprism,hybrid,linearpressure15节点二次三角形棱柱，混合动力，线压力DC3D1515-nodequa

39、draticheattransfertriangularprism15节点二次传热三角形棱柱C3D15E15-nodequadraticpiezoelectrictriangularprism15节点二次压电三角形棱柱DC3D15E15-nodequadraticcoupledthermal-electricaltriangularprism15节点二次耦合热电三角形棱柱AC3D1515-nodequadraticacoustictriangularprism15节点二次声学三角形棱柱Hex20C3D2020-nodequadraticbrick20节点二次实体C3D20H20-nodequadraticbrick,hybrid,linearpressure20节点二次实体，混合动力，线压力C3D20R20-nodequadraticbrick,reducedintegration20节点二次实体，缩减积分C3D20RH20-nodequadraticbrick,hybrid,
