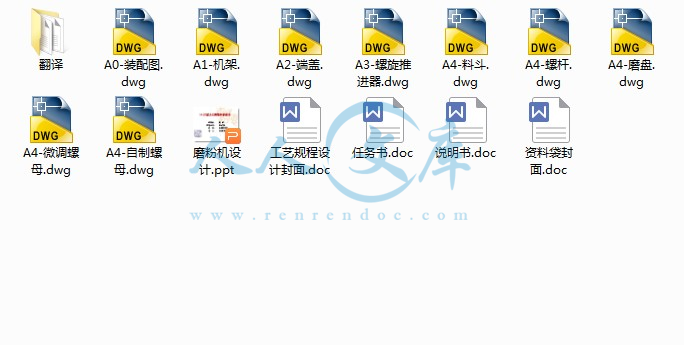

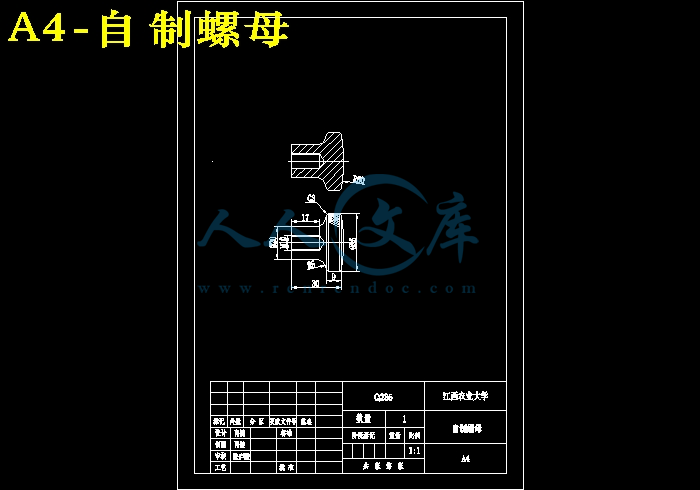

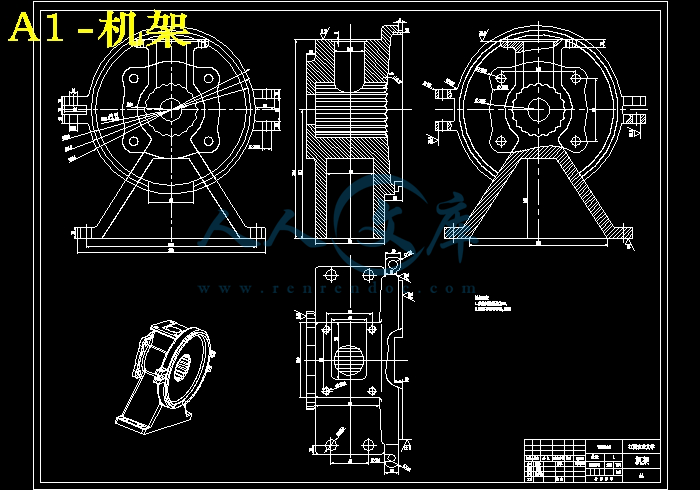

以下预览截图到的都有源文件,图纸是CAD，文档是WORD，下载后即可获得，所见即所得。

预览截图请勿抄袭，原稿文件完整清晰，无水印，可编辑。

有疑问可以咨询QQ：12401814





内容简介：

外文翻译MME新型磨粉机设计【摘要】就MME新型磨粉机的特点,如外观布局、铸铁底座、磨辊组自承研磨力、弹性张紧结构、变频喂料系统、刮刀清理等进行了简要说明和分析。【关键词】磨粉机磨辊变频喂料系统1MME型磨粉机的介绍MME磨粉机是2005年推出的一种新机型，该机是在MDDK磨粉机近十年的实践基础之上，吸收国内外的先进经验，开发的一种新型磨粉机，较MDDK磨粉机有如下特点1外观合乎人机工程学原理，门式外置开启，在工作中检查、更换元件方便，省力。铸铁底座综合性能优良2观察筒成椭圆锥形。椭圆形观察筒不仅外形美观，而且没有死角，改进存料条件，不易粘料。3轧距调节省力、容易。调节原理不同，改变了受力点，在开机状态下，容易调节到理想状态。4轧距调节机构气动锁紧。目前国内外磨粉机几乎全部为机械锁紧，MME磨粉机实现为气动锁紧，操作方便，绝对锁紧。5独特的弹性自动补偿齿楔带张紧装置。该装置能自动补偿带长度的微量变化提高带的使用寿命。6刮刀清理自动分离机构。当磨粉机磨辊离轧时，刮刀与磨辊自动分离，杜绝刮刀与磨辊在无料情况下直接磨擦，保护磨辊，提高刮刀使用寿命。7简捷的喂料辊清理单元。喂料辊不须外移就能很方便地清理喂料辊后的积垢，活动清理单元，改善了磨粉机内卫生状况，降低了装配和维修难度。2独特的外形设计1磨粉机外形磨粉机的机体高度、磨辊中心高度、微调手轮中心高度、外罩分体高度、机体过渡半径、外罩圆弧半径及整体外形比例分配等技术参数分别是通过形象设计进行的该机的外观设计获国家专利,专利号为ZL0134997216。2进料筒进料筒为椭圆锥形,采用优质有机玻璃板整体模压成型,不仅外形美观、便于观察,而且能更好地使物料均匀自流地分布到喂料辊的全长上。3旋转护罩磨粉机两侧护罩采用旋转开门式结构,只需反转拉手即可打开,关上后靠磁性自动吸附在机体上,不需要任何辅助工具即可实现快速开关护罩,操作灵活方便,防护效果更好。4铸铁底座该机采用铸铁底座,与钢板底座相比,具有结构坚固、不变形、减震和抑制噪声等优点机体采用上下剖分式结构,上部侧机架采用优质钢板焊接而成,上下部分用螺丝联接,中间有减震垫,整机无论从功能、寿命、美观、操作和维护等方面都进行了优化设计,具有优越的综合性能。3磨粉机结构设计1）磨辊组21磨辊组自承研磨力结构单独承受应力磨辊组结构简单、操作灵敏。快辊轴承座6固定在支撑横梁13上,慢辊轴承座8骑跨在支撑横梁上,与偏心轮12配合,气缸14的活塞杆伸出与缩回使转臂15旋转,同时偏心轮转动,使慢辊轴承座相对快辊中心平动,完成磨辊离合闸动作,见图2。22粗调轧距调整粗调螺母5,通过拉杆7带动预压碟形弹簧组10、慢辊轴承座8绕偏心轮12转动,使慢辊中心相对快辊中心前后移动,使轧距得到调整。23微调轧距转动微调手轮1,微调螺杆3驱使微调杠杆4绕支点旋转,驱使气缸移动,使转臂15旋转,带动偏心轮、慢辊轴承座移动,使慢辊中心与快辊中心产生相对位置的改变。由于杠杆比较大,轧距调整准确,更为省力。2）辊间传动24三轮系传动结构MME新型磨粉机的辊间采用三轮系传动结构,布局合理、结构紧凑,并选用齿楔带传递动力。该齿楔带具有轴向定位功能,在传递过程中不跑偏、不跳齿。该齿楔带采用了性能优良的新型材料,抗拉体采用强度高、延伸率小的进口玻璃纤维和钢丝绳,本体层为综合性能优良的氯丁橡胶,齿楔带表面覆盖的尼龙织物具有低摩擦和高耐磨性,因此齿楔带是目前磨粉机辊间传动的最佳选择。25张紧轮原张紧轮为楔轮,在加工、装配过程中难度大,尤其是装配时快辊轮和张紧轮的轴线必须平行,相关的三带轮的轴向定位必须确保每一根齿楔带在垂直于轮轴的各自的运动平面内运动,若有一轮发生轴向位移,势必造成齿楔带与轮上齿槽的啮合发生偏离,使齿楔受力不均,齿楔磨损快,最终导致整条带搓齿、断齿以致于断裂。而现在张紧轮设计改进为光轮,降低楔轮的加工难度,提高了加工精度,当带轮在装配发生较小位移时,齿楔带的楔齿不再受张紧轮齿槽的限制,从而减少齿楔带的磨损,提高了齿楔带的使用寿命。26弹性张紧结构过去张紧结构为刚性调整结构,齿楔带在传递过程中,齿楔带的长度有微量变化时,就必须调整张紧轮的位置,否则就会影响齿楔带的使用寿命。现用弹性张紧结构能自动补偿,齿楔带长度的微量变化不需随时调整张紧轮的位置。我厂通过反复实践对比,证明了改用弹性张紧结构,齿楔带的寿命延长了35倍。3）喂料系统磨粉机要保持稳定、高产、高效地运行,喂料系统就应将一定流量的物料,以一定的速度均匀准确地喂入研磨区。喂料效果的好坏直接影响研磨效果及出粉率的高低。同时,喂料连续均匀,对减少磨辊的磨损,延长磨辊及轴承的寿命也有着重要的意义。31简单有效的喂料机构确保喂料的均匀性为了达到最好的喂料效果,对喂料辊与磨辊之间的位置关系进行了合理的定位。应用特殊的喂料活动挡板机构,使进料筒与喂料辊之间有足够的自由散落角度与空间加之喂料门的开启灵活方便,喂料辊的齿形根据用户工艺位置以及来料的不同在梯形齿、螺纹齿、矩形齿、绞龙齿及光轴之间方便地选择。32变频喂料系统为了保证喂料的稳定性,采用最先进的变频喂料系统,其基本工作程序是磨粉机料位的高低由料位传感器检测后,通过接口板的A/D转换输入PLC控制器,控制器再根据输入的料位信号,输出一个模拟信号到变频器,由变频器控制喂料电机的转速,从而准确控制磨粉机的料位。喂料辊电机的转速可在40260R/MIN的范围内根据料位的高低自动无级变速,上下喂料辊由同步齿形带按一定的速比传递,使入磨物料保持基本稳定,面粉质量也得到了保证。33简单、方便、卫生的清理活动单元在料仓的清理方面,我们没有机械地照搬国外的磨粉机,把喂料辊做为一个整体移出,增加零部件的作法,而是从生产实际出发,在中心横梁与喂料辊之间加活动板,方便简单的机构达到了同样的清理效果,很方便地清理喂料辊后面的积垢,从而提高了卫生标准,也降低了装配和维修的难度。34增加负压吸风装置,改善喂料状况,提高研磨效果在喂料辊下部与研磨区之上设计了一种特殊的吸风道,即负压吸风装置。该装置能降低物料入磨时因两辊相向旋转产生的“泵气”现象,并降低磨膛的温度和湿度,这对于心磨、渣磨可提高流量,不喷粉,并提高研磨效果。同时,上磨门的玻璃能经常保持清洁、透明,可以很好地观察喂料室的工况。4）刮刀清理光辊先进的磨粉机都是用刮刀清理光辊,刮刀比刷子清理得更干净卫生。我厂设计的刮刀清理机构装配简单、调整容易,耗电量降低了30左右,现已在多数面粉厂家使用,用户反映效果比刷子好得多。5）电控系统整个控制系统的元件、显示面板、模块、PLC都选用进口电器,整个编程控制系统的设计更科学、更准确、更齐全、抗干扰能力更强。单台磨粉机的控制箱安装在机体的正前方,多台磨粉机的电器元件也可集中安装在远离磨粉机的控制柜里面,实行分别控制,从而远离粉尘源,保护电器元件,提高控制质量,便于安装维修。6）质量的保证为了保证磨粉机的整体质量,我厂对该机各零部件的加工工艺和精度做了高技术的要求。在加工、装配、检查等各个环节都严格地按质量标准执行。为了保证整体的使用性能,关键的零件如轴承采用瑞典SKF自动调心滚子轴承气动元件采用日本SMC公司的元件磨辊、碟形弹簧、标准件等采用国内最好厂家的产品。4结束语综上所述,我们推出的MME新型磨粉机,具有外观布局更合乎人机工程学原理,铸铁底座综合性能更优良,承受研磨应力的独立单元结构更先进,调节轧距更省力方便,先进的齿楔带、自动补偿的弹性张紧装置,易调整的刮刀清理结构,国际领先的控制系统等突出的优点。同时,该机在用户的需求下也可安装气控伺服喂料系统。总之,MME新型磨粉机被专家认为是当今国际领先、国内一流的磨粉机。MMENEWMILLINGMACHINEDESIGNAUTHORPATTONWJTRANSLATOR程本【ABSTRACT】MMEONTHECHARACTERISTICSOFANEWMILLINGMACHINE,SUCHASTHEAPPEARANCEOFTHELAYOUT,CASTIRONBASE,SINCETHEMILLFORGRINDINGROLLGROUP,ANDELASTICTENSIONSTRUCTURE,FREQUENCYFEEDINGSYSTEM,SCRAPER,SUCHASCLEANINGUPABRIEFDESCRIPTIONANDANALYSIS【KEYWORDS】MILLROLLFREQUENCYFEEDINGSYSTEM1MMEMILLINGMACHINEINTRODUCEDMMEMILLFOODMACHINERYFACTORYISTHE2005LAUNCHOFANEWMODEL,THEAIRCRAFTISINMDDKMILLFORNEARLY10YEARSONTHEBASISOFTHEPRACTICE,ABSORBINGTHEADVANCEDEXPERIENCEATHOMEANDABROAD,THEDEVELOPMENTOFANEWMILLINGMACHINE,AMILLINGMACHINEMDDKHAVETHEFOLLOWINGCHARACTERISTICS1）APPEARANCEINLINEWITHERGONOMIC,ANEXTERNALDOOROPENED,THEWORKOFTHEINSPECTION,TOFACILITATETHEREPLACEMENTOFCOMPONENTS,ANDEFFORTCASTIRONBASEOFINTEGRATEDHIGHPERFORMANCE2）OBSERVETHETUBEINTOACONESHAPEDOVALOVALTUBEOBSERVEDNOTONLYBEAUTIFULSHAPE,ANDNODEADENDS,THEEXPECTEDIMPROVEMENTOFTHECONDITIONSANDDIFFICULTTOSTICKMATERIALS3）ROLLINGFROMTHEADJUSTMENTEFFORT,EASILYREGULATINGDIFFERENTPRINCIPLE,TOCHANGETHEFORCE,UNDERTHEBOOT,EASYTOADJUSTTOTHEIDEALSTATE4）ROLLINGBODIESFROMTHEAIRCONDITIONINGLOCKINGMILLINGMACHINEATHOMEANDABROADFORALMOSTALLTHEMECHANICALLOCKING,MMEMILLFORTHEREALIZATIONOFPNEUMATICLOCKING,EASYTOOPERATE,THEABSOLUTELOCK5）THEUNIQUEFLEXIBILITYWITHAUTOMATICCOMPENSATIONTOOTHWEDGETENSIONINGDEVICETHEDEVICECANAUTOMATICALLYTRACETHELENGTHOFCOMPENSATIONWITHIMPROVEDWITHTHECHANGESINLIFE6）BLADEAUTOMATICCLEARANCEFROMAGENCIESWHENMILLFROMTHEROLLINGMILLROLL,ANDROLLERBLADEAUTOMATICSEPARATION,ELIMINATESCRAPERANDROLLERMILLINTHEABSENCEOFDIRECTFRICTIONMATERIALCIRCUMSTANCES,THEPROTECTIONOFROLLER,RAISINGSCRAPERLIFE7）SIMPLEFEEDROLLERCLEANUPUNITFEEDINGROLLRELOCATIONCANNOTBEVERYEASYTOCLEANUPAFTERFOULINGFEEDROLLER,CLEANUPACTIVITIESUNIT,MILLINGMACHINESTOIMPROVETHEHEALTHSTATUSANDREDUCETHEASSEMBLYANDMAINTENANCEDIFFICULT2AUNIQUEFORMFACTOR1MILLAPPEARANCEASSHOWNINFIGURE1,THEBODYHEIGHTOFTHEMILLINGMACHINE,GRINDINGROLLCENTREHEIGHTANDFINETUNINGHANDWHEELCENTERHEIGHT,THEHOUSINGSOFHEIGHT,THEBODYRADIUSOFTHETRANSITION,HOUSINGRADIUSANDTHEOVERALLSHAPEOFTHEDISTRIBUTION,ANDOTHERTECHNICALPARAMETERSWEREBYIMAGEDESIGNCONDUCTEDAIRCRAFTDESIGNSOFNATIONALPATENTS,PATENTNOZL01349972162THEENTRANCEOFMATERIALSTHEENTRANCEOFMATERIALSINTOTHECONESHAPEDOVALFORTHEUSEOFQUALITYPLEXIGLASSPLATEOVERALLMOLDING,NOTONLYAESTHETICAPPEARANCE,FOROBSERVATION,BUTALSOBETTERABLETOMAKEMATERIALSDISTRIBUTEDEVENLYGRAVITYFEEDTOTHEFULLLENGTHONTHEROLL3ROTATINGSHIELDINGMILLUSEOFREVOLVINGDOORONBOTHSIDESOFSHIELDINGSTRUCTURE,SIMPLYREVERSEHANDLETOOPENANDCLOSEAUTOMATICALLYAFTERRELYONMAGNETICABSORPTIONINTHEBODY,DONOTNEEDANYTOOLTOACHIEVERAPIDSWITCHSHIELDING,OPERATINGFLEXIBILITY,PROTECTIONBETTER4CASTIRONBASETHEAIRCRAFTUSEDCASTIRONBASE,COMPAREDWITHTHEBASEPLATE,ASOLIDSTRUCTURE,DEFORMATION,DAMPINGANDNOISESUPPRESSION,ANDOTHERADVANTAGESOFUSINGTHEBODYFROMTOPTOBOTTOMMESHSTRUCTURE,THEUPPERSIDEOFAHIGHQUALITYSTEELFRAMEWELDEDTOGETHER,FROMTOPTOBOTTOMPARTWITHASPRINGCONNECTED,DAMPINGTHEMIDDLEPADWITHTWOINTERMSOFFUNCTION,LIFE,BEAUTY,OPERATIONANDMAINTENANCE,ANDOTHERASPECTSOFTHEDESIGNHASBEENOPTIMIZED,INTEGRATEDWITHSUPERIORPERFORMANCE3MILLSTRUCTURALDESIGN1ROLLERGROUP11ROLLERGRINDINGOFTHEGROUPSELFSUPPORTINGSTRUCTUREROLLERALONETOBEARTHESTRESSGROUPSTRUCTUREISSIMPLE,SENSITIVEOPERATIONSEXPRESSROLLERBEARINGFIXEDAT6SUPPORTBEAMS13,THESLOWROLLERBEARING8TORIDEINSUPPORTOFCROSSBEAMS,ANDTHEROUNDOF12WITHECCENTRIC,THE14CYLINDERPISTONRODTOTURNOUTANDTHERETRACTABLEARM15ROTATING,ECCENTRICROUNDOFROTATION,SOTHATATARELATIVELYSLOWROLLERBEARINGSFASTMOVINGROLLERCENTER,COMPLETEROLLGRINDINGMOVESFROMTHERECLOSURE,SHOWNINFIGURE212FROMTHEROUGHROLLINGROUGHNUTADJUSTMENT5,7DRIVENBYDRAWBARSPRELOADINGDISCSPRINGGROUP10,BLOCK8SLOWROLLERBEARINGSAROUNDTHEECCENTRICROUNDOF12ROTATING,SOTHATRELATIVELYSLOWROLLERCENTERBEFOREANDAFTERMOVINGFASTERROLLCENTER,ROLLINGFROMTHEGETADJUSTED13FINETUNINGBEFOREROLLINGMOMENTOFFINETUNINGAHANDWHEEL,FINETUNINGSCREWDRIVENBYTHREEFINETUNINGLEVERFULCRUMAROUND4ROTATION,DRIVENBYMOBILECYLINDER,TOARM15ROTATING,DRIVENECCENTRICROUND,MOVINGATSLOWROLLERBEARINGSSOTHATTHESLOWROLLCENTERANDACENTERROLLFASTERRELATIVEPOSITIONCHANGESASMORELEVERAGE,ROLLINGFROMTHEADJUSTMENTACCURATE,MOREEFFORT2ROLLOFTRANSMISSION21THREEOFTHETRANSMISSIONSTRUCTUREMMENEWMILLBETWEENTHEUSEOFTHEROLLOFTHREETRANSMISSIONSTRUCTURE,ARATIONALLAYOUT,COMPACTANDOPTIONALPOWERTRANSMISSIONBELTTOOTHWEDGETHETOOTHWEDGEWITHAAXIALTARGETING,INNODEVIATIONINTHETRANSFERPROCESS,NOTJUMPTEETHTHETOOTHWITHAWEDGEOFTHEEXCELLENTPERFORMANCEOFNEWMATERIALS,HIGHTENSILESTRENGTHOFUSE,EXTENSIONOFTHEIMPORTOFSMALLGLASSFIBERSANDROPE,INTOANINTEGRATEDBODYOFTHEEXCELLENTPERFORMANCEOFTHECHLOROPRENERUBBER,WEDGETOOTHSURFACECOVEREDWITHNYLONFABRICWITHLOWFRICTIONANDHIGHWEARRESISTANCE,THETOOTHWEDGEMILLINGMACHINEWITHROLLERSISTHEBESTCHOICEOFTRANSMISSION22TAKEUPROUNDTHETAKEUPROUNDFORTHEROUNDOFWEDGEINTHEPROCESSINGANDASSEMBLYPROCESSISVERYDIFFICULT,ESPECIALLYWHENTHEASSEMBLYISQUICKROLLROUNDANDROUNDTHEAXISOFTENSIONMUSTBEPARALLEL,RELATEDTOTHETHREEPULLEYAXIALPOSITIONINGMUSTENSURETHATEACHWEDGEWITHTOOTHROOTPERPENDICULARTOTHEAXLEINTHERESPECTIVESPORTSPLANEOFTHEMOVEMENT,IFONEOCCURREDAXIALDISPLACEMENT,ITISBOUNDTOCAUSETOOTHWEDGEZONEANDONTHEALVEOLARROUNDDEPARTUREFROMTHEENGAGEMENTOCCURRED,THETEETHARESHOULIBUWEDGE,WEDGETOOTHWEARFASTER,LEADINGTOTHEWHOLEOFRUBBINGWITHTEETH,BROKENTEETHRESULTINGINTHEFRACTURENOWTAKEUPROUNDROUNDTOIMPROVEDESIGN,REDUCEWEDGEROUNDOFTHEDIFFICULTYOFPROCESSINGANDIMPROVETHEACCURACYOFPROCESSING,WHENTHEPULLEYASSEMBLYINASMALLERDISPLACEMENT,WITHTHETEETHWEDGEWEDGETEETHNOLONGERSUBJECTTOTHERESTRICTIONSOFTENSIONROUNDALVEOLAR,THUSREDUCINGTOOTHWEDGEWITHTHEWEARANDIMPROVETHETOOTHWEDGEWITHLIFE23FLEXIBLETENSIONSTRUCTURESEEFIGURE3TENSIONOVERTHEPASTRIGIDSTRUCTUREFORSTRUCTURALADJUSTMENT,WITHTEETHINTHEWEDGEINTHECOURSEOFTRANSMISSION,GEARWEDGEWITHATRACECHANGESINTHELENGTHOFTIME,WEMUSTADJUSTTHELOCATIONOFTENSIONROUND,OTHERWISEWILLAFFECTTHETEETHWEDGEWITHLIFETENSIONISFLEXIBLESTRUCTURECANBEUSEDAUTOMATICCOMPENSATION,THELENGTHOFTHETOOTHWEDGEWITHNOTRACECHANGESATANYTIMETAKEUPROUNDOFTHELOCATIONIPLANTTHROUGHREPEATEDPRACTICECONTRASTTOPROVETHATTHEFLEXIBILITYTOSWITCHTOTAKEUPSTRUCTURE,WITHTEETHWEDGETOEXTENDTHELIFESPANOFTHREETOFIVETIMES3FEEDINGSYSTEMMILLCONFIDENTIALREMAINEDSTABLE,HIGHYIELD,EFFICIENTOPERATION,THEFEEDINGSYSTEMSHOULDBEONACERTAINFLOWOFMATERIALSTOAUNIFORMRATEOFACCURATEFEEDINGGROUNDAREAFEEDINGRESULTSHAVEADIRECTIMPACTONTHEGRINDINGEFFECTSANDTHELEVELOFEXTRACTIONRATEATTHESAMETIME,FEEDFORUNIFORMITY,TOREDUCETHEWEARANDTEARROLLGRINDING,GRINDINGTOEXTENDTHELIFEOFROLLERBEARINGSANDALSOHAVEANIMPORTANTITALIANJUSTICE31FEEDINGTHESIMPLEANDEFFECTIVEINSTITUTIONSTOENSURETHATFEEDINGTHEUNIFORMITYOFTHEFEEDINORDERTOACHIEVETHEBESTRESULTS,THEFEEDROLLANDROLLGRINDINGRELATIONSHIPBETWEENTHELOCATIONOFAREASONABLEPOSITIONFEEDINGACTIVITIESOFTHESPECIALBAFFLEINSTITUTIONS,ANDFEEDINTOTHEROLLBETWEENLIAOTONGHAVESUFFICIENTFREEDOMOFTHESCATTEREDPOINTOFVIEWANDSPACEINADDITION,FEEDTHEDOOROPENFLEXIBLE,ROLLFEEDTHEPROFILEOFUSERSBASEDONLOCATIONANDTOTHEDIFFERENTMATERIALSINTHETRAPEZOIDALTEETH,TOOTHTHREAD,RECTANGULARTEETH,TEETHCUTTERANDOPTICALAXISTOCHOOSEBETWEENCONVENIENCE32FREQUENCYFEEDINGSYSTEMINORDERTOENSURETHESTABILITYOFFEED,USINGTHEMOSTADVANCEDFREQUENCYFEEDSYSTEM,ANDTHEBASICPROCEDURESAREMILLATTHELEVELEXPECTEDBYLEVELSENSORSDETECT,THROUGHTHEINTERFACEBOARDOFA/DCONVERTERINPUTPLCCONTROLLER,CONTROLLERACCORDANCEWITHTHEEXPECTEDSIGNALINPUTANDOUTPUTTOANANALOGSIGNALCONVERTERFROMTHEINVERTERCONTROLFEEDMOTORSPEED,ACCURATECONTROLOFTHEMILLLEVELFEEDINGROLLERMOTORSPEEDINTHE40260R/MINWITHINTHESCOPEOFMATERIALSBASEDONTHELEVELOFAUTOMATICCVT,FROMTOPTOBOTTOMFEEDROLLERBYTHETIMINGBELTONACERTAINRATIOTRANSMISSION,MAKETHEMILLTOMAINTAINTHEBASICSTABILITYOFMATERIALS,FLOURQUALITYHASBEENGUARANTEED33ASIMPLE,CONVENIENTANDCLEANUPACTIVITIESOFTHEHEALTHUNITSILOINTHECLEANUP,WEDIDNOTMECHANICALLYCOPYTHEFOREIGNMILL,THEFEEDROLLOUTASAWHOLE,THEINCREASEINPARTSOFPRACTICE,BUTFROMTHEPRODUCTIONREALITY,INTHECENTREBETWEENTHEBEAMSANDFEEDROLLERINCREASEACTIVITYBOARDS,AGENCIESTOFACILITATEASIMPLECLEANINGUPTHESAMEEFFECT,ITISEASYTOCLEANUPAFTERTHEFEEDROLLERFOULING,THEREBYIMPROVINGTHEHEALTHSTANDARDS,BUTALSOREDUCETHEASSEMBLYANDMAINTENANCEMOREDIFFICULT34INCREASEVACUUMSUCTIONDEVICEWINDFEEDINGCONDITIONSIMPROVE,ENHANCEGRINDINGEFFECTSINTHEBOTTOMANDFEEDROLLERGRINDINGAREAONTHEDESIGNOFASPECIALSUCTIONROAD,WHICHWINDSVACUUMSUCTIONDEVICETHEDEVICECANREDUCETHEMATERIALTOTHEMILLROLLINBOTHDIRECTIONSDUETOTHETWOROTATINGTHE“PUMPGAS“PHENOMENON,ANDLOWERTHEMILLBORETHETEMPERATUREANDHUMIDITY,THEHEARTGRINDING,GRINDINGRESIDUECANINCREASETRAFFIC,DUSTING,POLISHINGANDIMPROVINGRESULTSATTHESAMETIME,THEGRINDINGOFGLASSDOORSKEPTCLEAN,TRANSPARENT,CANBEWELLOBSERVEDFEEDINGROOMCONDITIONS4SCRAPERCLEANINGROLLADVANCEDMILLINGMACHINESAREUSEDSCRAPERCLEANINGROLLER,SCRAPERBRUSHESCLEANUPMORETHANCLEANHEALTHIPLANTCLEANUPINSTITUTIONSDESIGNEDSCRAPERASSEMBLYSIMPLE,EASYADJUSTMENT,REDUCINGPOWERCONSUMPTIONBY30PERCENT,ISNOWINTHEMAJORITYOFMILLSHOMEUSE,USERSREFLECTTHERESULTSAREMUCHBETTERTHANTHEBRUSH5ELECTRONICCONTROLSYSTEMTHECONTROLSYSTEMCOMPONENTS,DISPLAYPANELS,MODULES,PLCIMPORTSOFELECTRICALAPPLIANCESARESELECTED,THEENTIREPROGRAMMINGCONTROLSYSTEMDESIGNMORESCIENTIFIC,MOREACCURATEANDCOMPLETE,STRONGERANTIINTERFERENCECAPABILITYSINGLEMILLINGMACHINEINSTALLEDINTHECONTROLBOXINFRONTOFTHEBODY,MULTIPLEMILLELECTRICALCOMPONENTSCANALSOBEINSTALLEDINFOCUSAWAYFROMTHEMILLINGMACHINEINSIDETHECONTROLCABINET,THEIMPLEMENTATIONOFTHERESPECTIVECONTROL,AWAYFROMTHEDUSTSOURCES,PROTECTIONOFELECTRICALCOMPONENTSANDENHANCEQUALITYCONTROL,EASYTOINSTALLMAINTENANCE6QUALITYASSURANCEINORDERTOENSURETHEOVERALLQUALITYOFMILLINGMACHINE,IPLANTONTHEAIRCRAFTPARTSANDPRECISIONPROCESSINGTECHNOLOGYTODOHIGHTECHREQUIREMENTSINPROCESSING,ASSEMBLY,INSPECTION,ANDOTHERAREASARESTRICTLYACCORDINGTOQUALITYSTANDARDSINORDERTOENSURETHEOVERALLPERFORMANCE,THEKEYCOMPONENTSSUCHASTHEUSEOFTHESWEDISHSKFBEARINGAUTOMATICALLYALIGNINGROLLERBEARINGS,AERODYNAMICCOMPONENTSUSEDJAPANESESMCCOMPANYSCOMPONENTSROLL,DISCSPRING,USINGSTANDARDPARTS,ANDOTHERDOMESTICMANUFACTURERSOFTHEBESTPRODUCTS4CONCLUSIONTOSUMUP,WELAUNCHTHENEWMMEMILLINGMACHINE,WITHEXTERIORLAYOUTWILLBEMOREERGONOMIC,CASTIRONBASEOFCOMPREHENSIVEPERFORMANCEBETTER,GRINDINGBEARTHESTRESSOFANINDEPENDENTUNITSTRUCTUREISMOREADVANCED,ROLLINGFROMTHEADJUSTMENTEFFORTTOFACILITATEMOREADVANCEDTHETOOTHWEDGEZONE,AUTOMATICCOMPENSATIONOFFLEXIBILITYTENSIONINGDEVICE,EASYTOCLEANUPSTRUCTURALADJUSTMENTOFTHESCRAPER,ALEADINGINTERNATIONALCONTROLSYSTEM,ANDHIGHLIGHTSTHEADVANTAGESATTHESAMETIME,THEAIRCRAFTONTHEUSERSNEEDSCANALSOBEINSTALLEDUNDERTHESERVOCONTROLLEDFEEDINGSYSTEMINSHORT,MMENEWMILLWEREEXPERTSBELIEVEISTHELEADINGINTERNATIONALANDDOMESTICFIRSTCLASSTHEMILLINGMACHINE1江西农业大学毕业论文（设计）任务书论文（设计）课题名称多功能磨粉机设计学生姓名肖健院（系）工学专业班级机制学生联系方式EMAIL电话指导教师张庐陵职称教授学历博士毕业论文（设计）要求1、好学上进，能吃苦耐劳，刻苦钻研，有相应专业知识具备独立工作能力；2、能敏感及时地查阅到国内外与本课题相关的资料和文件；3、会计算机绘图，能通过计算机绘图绘制相应的零件、部件和组件，绘制出总装配图；4、总图纸量不少于15张零号图；5、工作量要符合我院毕业设计的要求；6、根据毕业设计的要求在规定的时间内完成毕业答辩所需要的全部工作。毕业论文（设计）内容与技术参数1、在现场了解磨粉机械的类型与它们的优缺点情况；2、查阅国内外有关资料和文件分析各种磨粉机机械及其原理；3、研究多功能磨粉机的原理给出多功能磨粉机系统及主要部件的设计思想，画出多功能磨粉机主要部件工作草图；4、通过计算机绘图绘制相应的零件和部件，绘制出总装配图；5、撰写出10000字左右的设计说明书；6、根据毕业设计的要求在规定的时间内完成毕业答辩所需要的所有工作。毕业论文（设计）工作计划第一阶段现场了解情况；查阅国内外有关资料和文件分析磨粉机方法，定性找到相关装置；第二阶段研究多功能磨粉机机构的原理，给出多功能磨粉机动力与传动系统及其零部件的设计思想；第三阶段给出总体方案，画出工作草图，通过计算机绘图绘制相应
