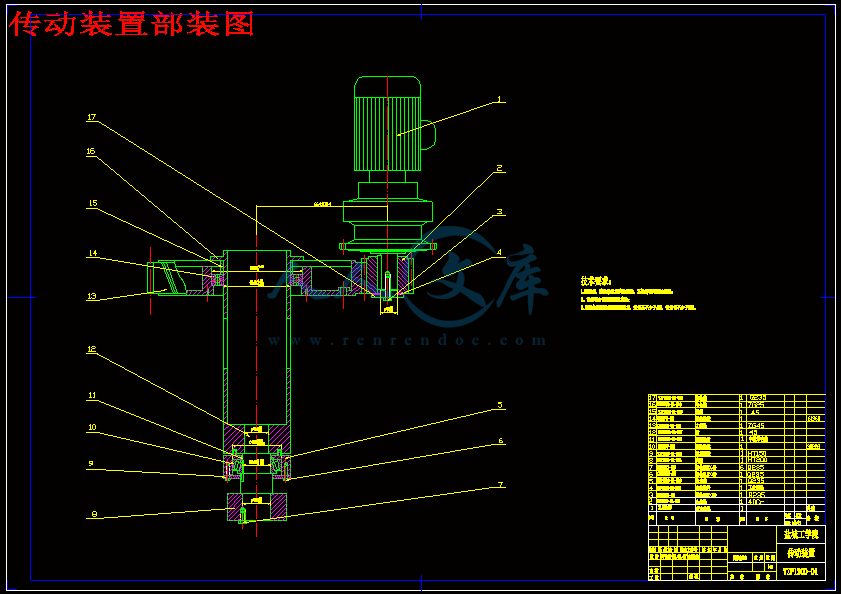

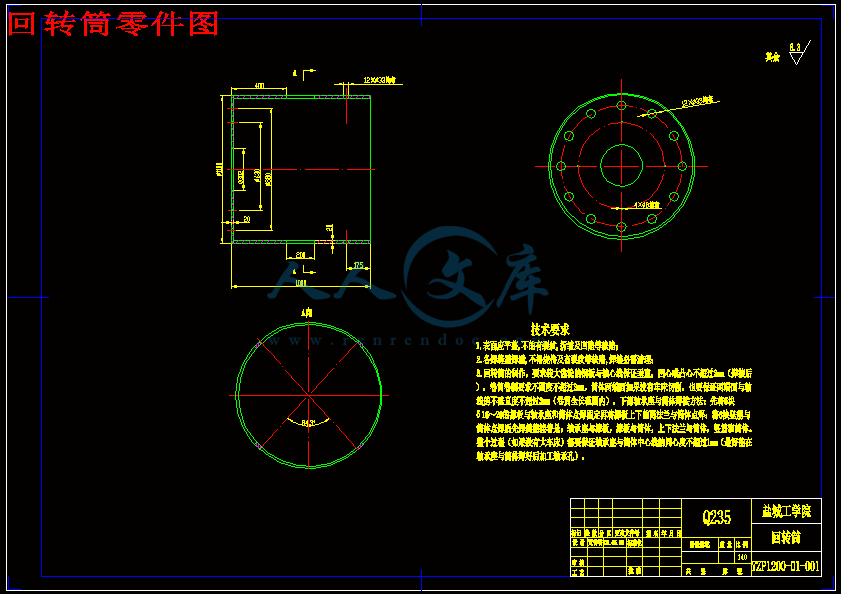

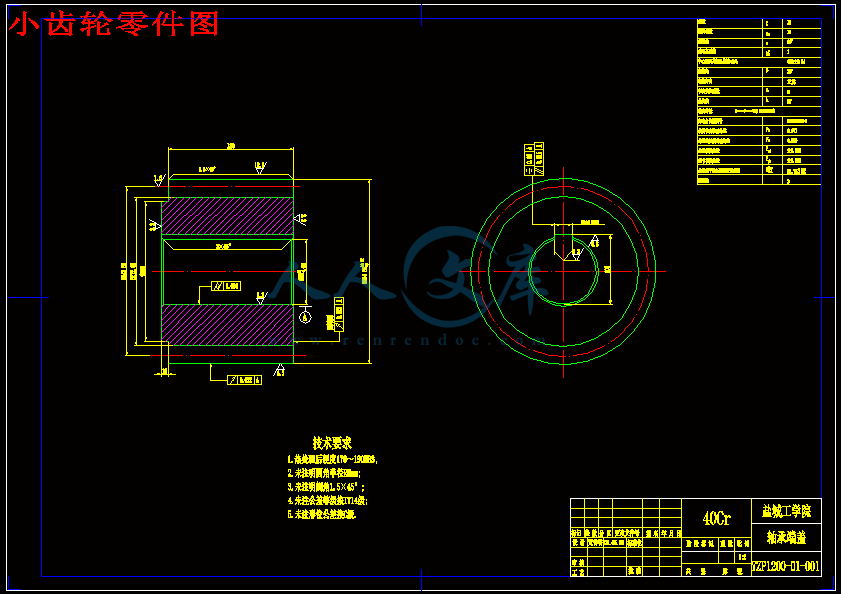

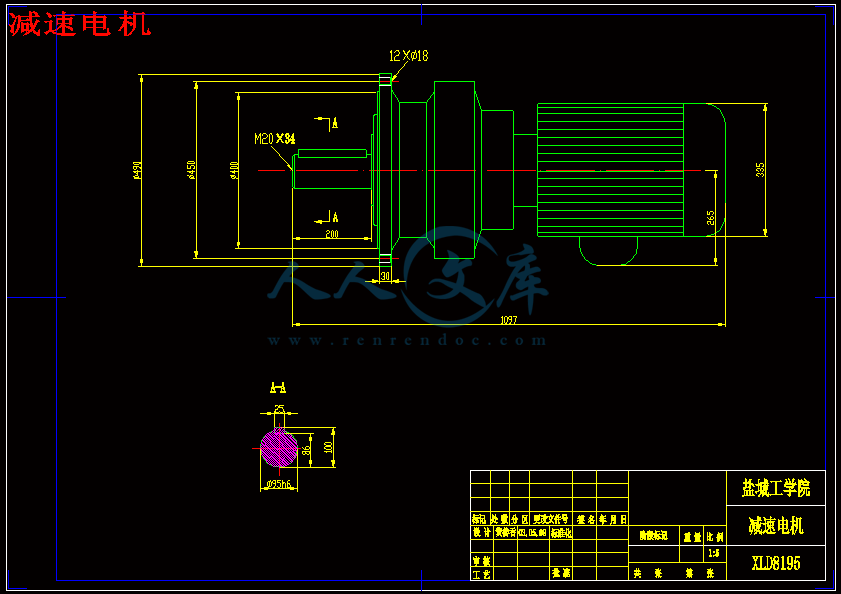

Φ1200熟料圆锥式破碎机的设计【含全套19张CAD图纸】【答辩毕业资料】

【温馨提示】 购买原稿文件请充值后自助下载。

[全部文件] 那张截图中的文件为本资料所有内容，下载后即可获得。

预览截图请勿抄袭，原稿文件完整清晰，无水印，可编辑。

有疑问可以咨询QQ：414951605或1304139763

目 录

0 引言……………………………………………………………………..……  1
1 圆锥式破碎机的总体设计……………………………………….………….  1
1.1 机器设计的要求……………………………………………………………  1
1.2 圆锥式破碎机的工作原理…………………………………………………  2
1.3 圆锥式破碎机的设计构思…………………………………………………  2
1.4 圆锥式破碎机的使用和效果………………………………………………  4
2 圆锥式破碎机零部件的设计和计算………………………………………   6
2.1 齿轮的的设计和计算………………………………………………………  6
2.2 滚动轴承的设计和计算……………………………………………………  12
2.3 螺栓组的设计计算………...……………………………………….………  16
2.4 鄂板的设计计算 ………………………………….……………………    17
4结论……………………………………………………………………...……   20
5致谢…………………………………………………………………………..  21
6参考文献……………………………………………………………………..  22
7附件清单……………………………………………………………………..  23

摘  要
本文介绍了熟料圆锥式破碎机,该破碎机采用超慢速剪切细碎原理。具有细碎效率高、功耗极低、无扬尘、几乎无振动。使用寿命延长5～7倍，易损配件费用底，结构简单，操作容易，维修极为方便。它主要由电动机、机架、外筒体、分级罩、回转筒、空心轴、大齿轮、小齿轮 、动颚板和静颚板组成。工作时,起动减速电机,减速电机轴端的小齿轮带动大齿轮转动,从而使回转筒下端的定动颚板之间形成一个动态的 V形圆环破碎腔,物料有进料筒落下,细粉及细颗粒通过筛板分离落入回转筒下部至漏斗排除,粗颗粒由锥形筛板均匀地撒入V形破碎腔内受定动颚板剪磨,由大颗粒变成小颗粒或粉末而落至漏斗入口,从漏斗出口排出.该破碎机广泛应用于金属、非金属矿、冶金、材料、化工、磨料和建材等行业的物料破碎领域.

关键词：圆锥式破碎机  超慢速剪切   熟料细碎

Abstract
This text has introduced the taper type breaker of grog , this breaker is adopted and shears the principle in small, broken bits ultra and slowly rapidly. Have in small, broken bits efficiency high, consumption extremely low, have and raise dust, for vibration. Service life lengthens 5-7 times, apt to decrease the expenses bottom of the fittings, the structure is simple, It is easy to operate, it is extremely convenient to maintain. Mainly by motor, framework, other tube body, put on, turn tube, empty mandrel, big gear wheel, pinion, move it jaw board and quiet jaw board make up round in grades. While working, start and moderate the electrical machinery, the pinion which moderates the axle end of the electrical machinery drives the big gear wheel to rotate, Make and turn to move jaw board form first dynamic V round ring broken definitely tubes of underpart round, Supplies have charge-in tube drop, detailed powder and through sift detailed particle board separate and fall into and turn, Thick particle sift by toper board spread and enter V broken move jaw board cut and rubed definitely even, Turns from big particle into a tiny particle or the powder and falls, discharge from the funnel export . This breaker is applied to the supplies broken field in metal, nonmetal ore, metallurgy, material, chemical industry, abrasive and building materials, etc. extensively.

Keywords: cone crusher    Shear ultra and slowly rapidly   The grog is in small, broken bits
