电动车短臂零件冲压成形模具设计[含工艺]【13张CAD图纸+毕业答辩论文】【冲压模具】

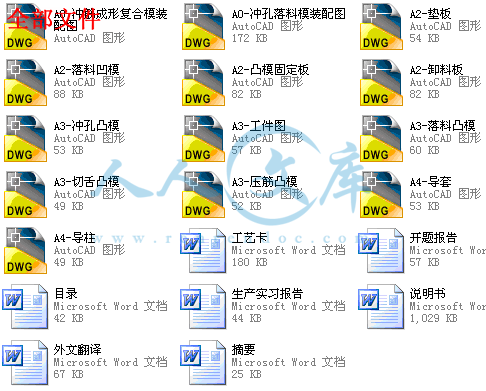

资源目录

电动车短臂零件冲压成形模具设计[含工艺]【全套CAD图纸+毕业答辩论文】【冲压模具】.rar

[A4-048]冲压模-电动车短臂零件冲压成形模具设计[含工艺]

A2-凸模固定板.dwg---(点击预览)

A0-冲筋成形复合模装配图.dwg---(点击预览)

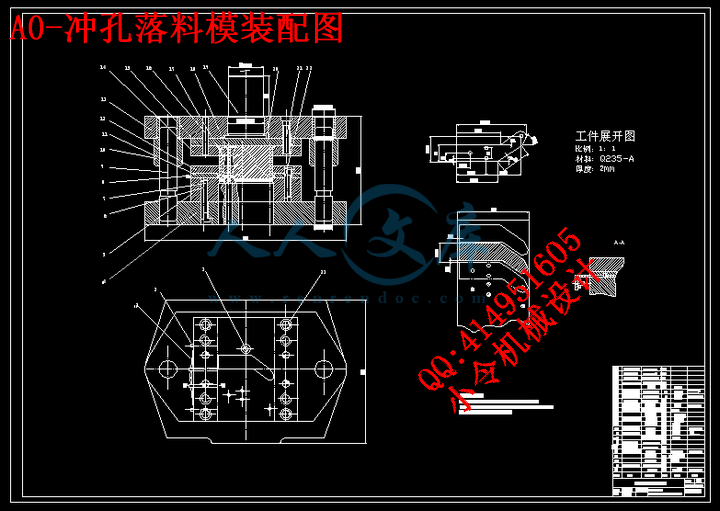

A0-冲孔落料模装配图.dwg---(点击预览)

压缩包内文档预览：(预览前20页/共32页)

编号：443060 类型：共享资源大小：709.48KB 格式：RAR 上传时间：2015-06-22 上传人：好资料QQ****51605 IP属地：江苏

45
积分

版权申诉 word格式文档无特别注明外均可编辑修改；预览文档经过压缩，下载后原文更清晰！ 立即下载

关键词：: 电动车零件冲压成形模具设计工艺全套 cad 图纸毕业答辩论文模具

资源描述：

1前言1

2 零件工艺分析及确定工艺方案和模具结构类型2

2.1 工件零件2

2.2 工艺分析2

2.3 确定工艺方案模具结构类型4

2.3.1 定位装置5

2.3.2 卸料装置5

2.3.3 导向装置5

3 冲孔落料模模具结构设计6

3.1 工件展开图6

3.2 排样及计算条料宽度及确定步距6

3.3 材料利用率的计算7

3.4 计算总冲压力8

3.5 压力中心的计算9

4 冲孔落料模的主要零部件设计12

4.1 凹模的设计12

4.2 冲孔模中凸模的尺寸及制造精度：13

4.3 凸、凹模间隙14

4.4 凹模的结构形式15

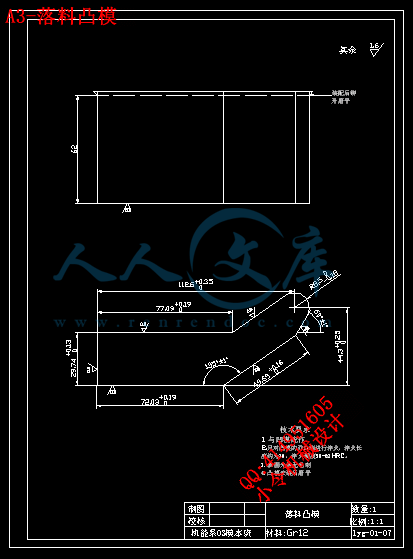

4.5 凸模的设计15

5 冲孔落料模辅助零件设计19

5.1 挡料销19

5.2导料板19

5.3卸料板19

5.4 导向零件20

5.5 连接与固定零件21

6 冲孔落料模压力机的选择23

7 压筋切舌模设计计算24

7.1.1 弯曲力的计算24

7.2 压筋切舌模压力机的选择24

8 压筋切舌模成形件尺寸的确定26

8.1 凸、凹模圆角半径26

8.2 凸、凹模间隙26

8.3 弯曲模零件总体尺寸的确定26

8.4 模具自制零件的材料及热处理要求27

9 模具的安装调试28

9.1 冲孔落料模的安装调试28

9.2 压筋切舌模的安装与调试28

10 结束语29

参考文献31

致谢32

内容提要

本设计主要围绕冲压模具设计展开，设计宗旨为降低生产成本，提高生产效率，提高模具寿命，而且要求操作方便，维修简单。

本次设计的课题是短臂冲压成形，其形状比较简单，精度要求不高，精度等级使用IT14即可，整个设计过程中包括模具的结构分析与主要零件的计算。根据模具尺寸选择安装相应的模架，在设计时对模具的质量、模具的寿命、生产周期及生产成本等因素进行了全面仔细的分析。总的设计过程为从零件工艺的分析到确定工艺方案然后到模具的设计和装配。通过本次设计，灵活运用所学知识，加深对模具设计、机械加工、公差、热处理等内容的掌握，提高了独立解决问题的能力。

Abstract

The main contents of this design is about the design of the stamping dies , its aim at lower the production cost , increasing production efficiency ,lift the molding tool life span and request for operate convenience , fix briefly and easily .

This design is Short arm stamping forming, its shape is quite simple, the precision request is not high, the precision class uses IT14 is may,the whole design process include the calculation of the structure analytical and main spare parts of molding tool . According to the molding tool size , choice install an accordingly homologous mold, while designing the life span of the molding , the economy of the molding tool, produce period and production cost etc.are should carried on under overall careful analysis.Total design process for analyze part process then arrive sure the process program and finally the design and assembly of the molding.Through this design, nimble utilization the knowledge of studies, deepen understand the content of the mold design, the machine-finishing, the tolerance, the heat treatment and exercise the ability of solve the question independently .

1 前言

毕业设计是一种综合性的训练，也是一个重要的专业实训环节，它综合性强，应用知识面宽。随着社会主义市场经济的不断发展，工业产品增多，产品更新换代加快，市场竞争激烈。模具作为一种工具已广泛地应用在各行各业之中。模具是现代化工业生产的重要工艺装备。在国民经济的各个工业部门都越来越多地依靠模具来进行生产加工。模具已成为国民经济的基础工业。模具已成为当代工业的重要手段和工艺发展方向之一。现代工业产品的品种和生产效益的提高，在很大程度上取决于模具的发展和技术经济水平。

为了更进一步加强我们的设计能力，巩固所学的专业知识，在毕业之际，特安排了此次的毕业设计。毕业计也是我们专业在学完基础理论课，技术基础课和专业课的基础上，所设置的一个重要的实践性教学环节。

本次设计的目的：

一、综合运用本专业所学的理论与生产实际知识，进行一次冲压模设计的实际训练，从而提高我们独立工作能力。

二、巩固复习三年以来所学的各门学科的知识，以致能融贯通，进一步了解从模具设计到模具制造整个工艺流程。

三、掌握模具设计的基本技能，如计算、绘图、查阅设计资料和手册，熟悉标准和规范等。

由于本人设计水平有限，经验不足，错误难免，敬请老师批评、指导，不胜感激。







内容简介：: Characteristics of Stamping and Properties ofSheet Metal Forming1overviewStamping is a kind of plastic forming process in which a part is produced by means of the plastic forming the material under the action of a die. Stamping is usually carried out under cold state, so it is also called stamping. Heat stamping is used only when the blank thickness is greater than 8100mm. The blank material for stamping is usually in the form of sheet or strip, and therefore it is also called sheet metal forming. Some non-metal sheets (such as plywood, mica sheet, asbestos, leather)can also be formed by stamping. Stamping is widely used in various fields of the metalworking industry, and it plays a crucial role in the industries for manufacturing automobiles, instruments, military parts and household electrical appliances, etc. The process, equipment and die are the three foundational problems that needed to be studied in stamping. The characteristics of the sheet metal forming are as follows:(1) High material utilization(2) Capacity to produce thin-walled parts of complex shape.(3) Good interchangeability between stamping parts due to precision in shape and dimension.(4) Parts with lightweight, high-strength and fine rigidity can be obtained.(5) High productivity, easy to operate and to realize mechanization and automatization. The manufacture of the stamping die is costly, and therefore it only fits to mass production. For the manufacture of products in small batch and rich variety, the simple stamping die and the new equipment such as a stamping machining center, are usually adopted to meet the market demands. The materials for sheet metal stamping include mild steel, copper, aluminum, magnesium alloy and high-plasticity alloy-steel, etc. Stamping equipment includes plate shear punching press. The former shears plate into strips with a definite width, which would be pressed later. The later can be used both in shearing and forming.2Characteristics of stamping formingThere are various processes of stamping forming with different working patterns and names. But these processes are similar to each other in plastic deformation. There are following conspicuous characteristics in stamping:（1）The force per unit area perpendicular to the blank surface is not large but is enough to cause the material plastic deformation. It is much less than the inner stresses on the plate plane directions. In most cases stamping forming can be treated approximately as that of the plane stress state to simplify vastly the theoretical analysis and the calculation of the process parameters.（2）Due to the small relative thickness, the anti-instability capability of the blank is weak under compressive stress. As a result, the stamping process is difficult to proceed successfully without using the anti-instability device (such as blank holder). Therefore the varieties of the stamping processes dominated by tensile stress are more than dominated by compressive stress.（3）During stamping forming, the inner stress of the blank is equal to or sometimes less than the yield stress of the material. In this point, the stamping is different from the bulk forming. During stamping forming, the influence of the hydrostatic pressure of the stress state in the deformation zone to the forming limit and the deformation resistance is not so important as to the bulk forming. In some circumstances, such influence may be neglected. Even in the case when this influence should be considered, the treating method is also different from that of bulk forming.（4）In stamping forming, the restrain action of the die to the blank is not severs as in the case of the bulk forming (such as die forging). In bulk forming, the constraint forming is proceeded by the die with exactly the same shape of the part. Whereas in stamping, in most cases, the blank has a certain degree of freedom, only one surface of the blank contacts with the die. In some extra cases, such as the forming of the blank on the deforming zone contact with the die. The deformation in these regions are caused and controlled by the die applying an external force to its adjacent area.Due to the characteristics of stamping deformation and mechanics mentioned above, the stamping technique is different form the bulk metal forming:（1）The importance or the strength and rigidity of the die in stamping forming is less than that in bulk forming because the blank can be formed without applying large pressure per unit area on its surface. Instead, the techniques of the simple die and the pneumatic and hydraulic forming are developed.（2）Due to the plane stress or simple strain state in comparison with bulk forming, more research on deformation or force and power parameters has been done. Stamping forming can be performed by more reasonable scientific methods. Based on the real time measurement and analysis on the sheet metal properties and stamping parameters, by means of computer and some modern testing apparatus, research on the intellectualized control of stamping process is also in proceeding.（3）It is shown that there is a close relationship between stamping forming and raw material. The research on the properties of the stamping forming, that is, forming ability and shape stability, has become a key point in stamping technology development, but also enhances the manufacturing technique of iron and steel industry, and provides a reliable foundation for increasing sheet metal quality.3Categories of stamping forming Many deformation processes can be done by stamping, the basic processes of the stamping can be divided into two kinds: cutting and forming. Cutting is a shearing process that one part of the blank is cut from the other. It mainly includes blanking, punching, trimming, parting and shaving, where punching and blanking are the most widely used. Forming is a process that one part of the blank has some displacement from the other. It mainly includes deep drawing, bending, local forming, bulging, flanging, necking, sizing and spinning.In substance, stamping forming is such that the plastic deformation occurs in the deformation zone of the stamping blank caused by the external force. The stress state and deformation characteristic of the deformation zone are the basic factors to decide the properties of the stamping forming. Based on the stress state and deformation characteristics of the deformation zone, the forming methods can be divided into several categories with the same forming properties and be studied systematically. The deformation zone in almost all types of stamping forming is in the plane stress state. Usually there is no force or only small force applied on the blank surface. When is assumed that the stress perpendicular to the blank surface equals to zero, two principal stresses perpendicular to each other and act on the blank surface produce the plastic deformation of the material. Due to the small thickness of the blank, it is assumed approximately the two principal stresses distribute uniformly along the thickness direction. Based on this analysis, the stress state and the deformation characteristics of the deformation zone in all kinds of stamping forming can be denoted by the points in the coordinates of the plane principal stresses and the coordinates of the corresponding plane principal strains.4Raw materials for stamping forming There are a lot of raw materials used in stamping forming, and the properties of these materials may have large difference. The stamping forming can be succeeded only by determining the stamping method, the forming parameters and the die structures according to the properties and characteristics of the raw materials. The deformation of the blank during stamping forming has been investigated quite thoroughly. The relationships between the material properties decided by the chemistry component and structure of the material and the stamping forming has been established clearly. Not only the proper material can be selected based on the working condition and usage demand, but also the new material can be developed according to the demands of the blank properties during processing the stamping part. This is an important domain in stamping forming research. The research on the material properties for stamping forming is as follows:（1）Definition of the stamping property of the material.（2）Method to judge the stamping property of the material, find parameters to express the definitely material property of the stamping forming, establish the relationship between the property parameters and the practical stamping forming, and investigate the testing methods of the property parameters.（3）Establish the relationship among the chemical component, structure, manufacturing process and stamping property. The raw materials for stamping forming mainly include various metals and nonmetal plate. Sheet metal includes both ferrous and nonferrous metals. Although a lot of sheet metals are used in stamping forming, the most widely used materials are steel, stainless steel, aluminum alloy and various composite metal plates.5Stamping forming property of sheet metal and its assessing method The stamping forming property of the sheet metal is the adaptation capability of the sheet metal to stamping forming. It has crucial meaning to the investigation of the stamping forming property of the sheet metal. In order to produce stamping forming parts with most scientific, economic and rational stamping forming process and forming parameters, it is necessary to understand clearly the properties of the sheet metal, so as to utilize the potential of the sheet metal fully in the production. On the other hand, to select plate material accurately and rationally in accordance with the characteristics of the shape and dimension of the stamping forming part and its forming technique is also necessary so that a scientific understanding and accurate judgment to the stamping forming properties of the sheet metal may be achieved. There are direct and indirect testing methods to assess the stamping property of the sheet metal. Practicality stamping test is the most direct method to assess stamping forming property of the sheet metal. This test is done exactly in the same condition as actual production by using the practical equipment and dies. Surely, this test result is most reliable. But this kind of assessing method is not comprehensively applicable, and cannot be shared as a commonly used standard between factories. The simulation test is a kind of assessing method that after simplifying and summing up actual stamping forming methods, as well as eliminating many trivial factors, the stamping properties of the sheet metal are assessed, based on simplified axial-symmetric forming method under the same deformation and stress states between the testing plate and the actual forming states. In order to guarantee the reliability and generality of simulation results, a lot of factors are regulated in detail, such as the shape and dimension of tools for test, blank dimension and testing conditions(stamping velocity, lubrication method and blank holding force, etc). Indirect testing method is also called basic testing method its characteristic is to connect analysis and research on fundamental property and principle of the sheet metal during plastic deformation, and with the plastic deformation parameters of the sheet metal in actual stamping forming, and then to establish the relationship between the indirect testing results(indirect testing value) and the actual stamping forming property (forming parameters). Because the shape and dimension of the specimen and the loading pattern of the indirect testing are different from the actual stamping forming, the deformation characteristics and stress states of the indirect test are different from those of the actual one. So, the results obtained form the indirect test are not the stamping forming parameters, but are the fundamental parameters that can be used to represent the stamping forming property of the sheet metal. 冲压成形的特点与板材冲压成形性能1概述冲压是通过模具使板材产生塑性变形而获得成品零件的一次成形工艺方法。由于冲压通常在冷态下进行，因此也称为冷冲压。只有当板材厚度超过8100mm时，才采用热冲压。冲压加工的原材料一般为板材或带材，故也称板材冲压。某些非金属板材（如胶木板、云母片、石棉、皮革等）亦可采用冲压成形工艺进行加工。冲压广泛应用于金属制品各行业中，尤其在汽车、仪表、军工、家用电器等工业中占有极其重要的地位。冲压成形需研究工艺设备和模具三类基本问题。板材冲压具有下列特点：（1）材料利用率高。（2）可加工薄壁、形状复杂的零件。（3）冲压件在形状和尺寸方面的互换性好。（4）能获得质量轻而强度高、刚性好的零件。（5）生产率高，操作简单，容易实现机械化和自动化。冲压模具制作成本高，因此适合大批量生产。对于小批量、多品种生产，常采用简易冲模，同时引进冲压加工中心等新型设备，以满足市场求新求变的需求。板材冲压常用的金属材料有低碳钢、铜、铝、镁合金及高塑性的合金刚等。如前所述，材料形状有板材和带材。冲压生产设备有剪床和冲床。剪床是用来将板材剪切成具有一定宽度的条料，以供后续冲压工序使用，冲床可用于剪切及成形。2冲压成行的特点生产时间中所采用的冲压成形工艺方法有很多，具有多种形式饿名称，但塑性变形本质是相同的。冲压成形具有如下几个非常突出的特点。（1）垂直于板面方向的单位面积上的压力，其数值不大便足以在板面方向上使板材产生塑性变形。由于垂直于板面方向上的单位面积上压力的素质远小于板面方向上的内应力，所以大多数的冲压变形都可以近似地当作平面应力状态来处理，使其变形力学的分析和工艺参数的计算大呢感工作都得到很大的简化。（2）由于冲压成形用的板材毛胚的相对厚度很小，在压应力作用下的抗失稳能力也很差，所以在没有抗失稳装置（如压边圈等）的条件下，很难在自由状态下顺利地完成冲压成形过程。因此，以拉应力作用为主的伸长类冲压成形过程多于以压应力作用为主的压缩类成形过程。（3）冲压成形时，板材毛胚内应力的数值等于或小于材料的屈服应力。在这一点上，冲压成形与体积成形的差别很大。因此，在冲压成形时变形区应力状态中的静水压力成分对成形极限与变形抗力的影响，已失去其在体积成形时的重要程度，有些情况下，甚至可以完全不予考虑，即使有必要考虑时，其处理方法也不相同。（4）在冲压成形时，模具对板材毛胚作用力所形成的约束作用较轻，不像体积成形（如模锻）是靠与制件形状完全相同的型腔对毛胚进行全面接触而实现的强制成形。在冲压成形中，大多数情况下，板材毛胚都有某种程度的自由度，常常是只有一个表面与模具接触，甚至有时存在板材两侧表面都有于模具接触的变形部分。在这种情况下，这部分毛胚的变形是靠模具对其相邻部分施加的外力实现其控制作用的。例如，球面和锥面零件成形时的悬空部分和管胚端部的卷边成形都属这种情况。由于冲压成形具有上述一些在变形与力学方面的特点，致使冲压技术也形成了一些与体积成形不同的特点。由于不需要在板材毛的表面施加很大的单位压力即可使其成形，所以在冲压技术中关于模具强度与刚度的研究并不十分重要，相反却发展了学多简易模具技术。由于相同原因，也促使靠气体或液体压力成形的工艺方法得以发展。因冲压成形时的平面应力状态或更为单纯的应变状态（与体积成形相比），当前对冲压成形汇中毛胚的变形与力能参数方面的研究较为深入，有条件运用合理的科学方法进行冲压加工。借助于电子计算机与先进的测试手段，在对板材性能与冲压变形参数进行实时测量与分析基础上，实现冲压过程智能化控制的研究工作也在开展。人们在对冲压成形过程有离开较为深入的了解后，已经认识到冲压成型与原材料有十分密切的关系。所以，对板材冲压性能即成形性与形状稳定性的研究，目前已成为冲压技术的一个重要内容。对板材冲压性能的研究工作不仅是冲压技术发展的需要，而且也促进了钢铁工业生产技术的发展，为其提高板材的质量提供了一个可靠的基础与依据。3冲压变形的分类冲压变形工艺可完成多种工序，其基本工序可分为分离工序和变形工序两大类。分离工序是使胚料的一部分与另一部分相互分离的工艺方法，主要有落料、冲孔、切边、剖切、修整等。其中又以冲孔、落料应用最广。变形工序是使胚料的一部分相对于另一部分产生位移而不破裂的工艺方法，主要有拉深、弯曲、局部成形、胀形、翻边、缩径、校形、旋压等。从本质上看，冲压成形
