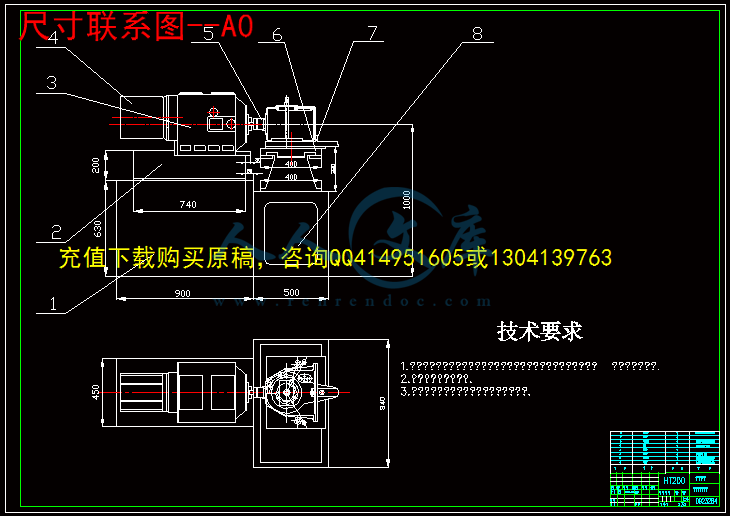

尺寸联系图--A0.dwg

机床总图--A0.dwg

压缩包内文档预览：(预览前20页/共46页)

编号：450060 类型：共享资源大小：1MB 格式：RAR 上传时间：2015-07-06 上传人：好资料QQ****51605 IP属地：江苏

45
积分

版权申诉 word格式文档无特别注明外均可编辑修改；预览文档经过压缩，下载后原文更清晰！ 立即下载

关键词：: 空气压缩机机身机械加工工艺设计斜面专用机床全套 cad 图纸毕业答辩论文

资源描述：

摘要

组合机床是一种高效率专用机床，有特定的使用条件，不是在任何情况下都可以收到良好的经济效益，在确定设计机床前，应该进行具体的经济技术分析。加工同一个机械产品的零件，通常会有很多种工艺方案，进行加工工艺设计，不同的方案会有不同的经济效果，影响技术经济的因素有很多，有时技术指标先进的方案，经济指标不一定优越，因此，需要对技术、经济指标作综合评价，综合多数的意见，选出优化方案进行经济效果评价，如果满意即可决定。

组合机床总体设计—“三图一卡”①“被加工零件工序图”它是组合机床的设计的主要依据，它是制造使用，检修和调整机床的重要技术条件②绘制加工示意图，它是刀具夹具，多轴箱，液压电器装置设计及通用部件选择主要原始资料，它是调整机床，刀具及试车依据。③绘制联系和运动关系及检验机床各部件相对于位置及联系是否满足加工要求，通用部件的选择是否合适，并为进一步开展主轴箱，夹具等专用部件，零件的设计提供依据。④相对生产率计算卡，它用来反映机床的加工过程，完成这一动作所需要的时间，切削用量，机床生产率及机床负荷率。

关键词：组合机床；主轴箱；工艺

Abstract

Portfolio is a highly efficient machine for machine tools, there are specific conditions of use, is not under any circumstances to receive good economic returns, in determining the design of machine tools, should carry out specific economic and technical analysis. Processing products with a mechanical parts, usually have a variety of programmes, various options have different economic effects, the impact of technological and economic factors are many, sometimes technical indicators advanced programmes, economic indicators do not necessarily superior, therefore, need to On the technical, economic indicators for comprehensive evaluation, comprehensive views of the majority, elected Optimization of economic evaluation, if you satisfied with the decision.

To desing the combination machine body-therr draning and one carcl that is ① the working orther draning of the working spares . it’s the major basis of the combination maching body. It’s a important paper in making using excmining and rensing maching .②To draw working schematw. Drawing it’s for design a cutting tool. Assist tool afixture a multiple axle box hydravlive,pressure and a deetric capacity derise and important first hand date of the natirrad. Pants chovced and it’s a rewse machine kinf tool and the mgor basis for the test run.③ To draw the relation dimension drawing the relation dimension drawing is to impress the matual .assembly nelation and the motin redation of the each form spanes of the machine.in order to enamine the relative .Pustion of all the machine spares and if the dimersion nelational .Spares is fix ,in the disigerents of dere loping the main axle box fixtrer’s special purpose pats.④Todesign the machin productirilg planning card .It’swod to report the working process of the machine to finish the need tine the cutting capacity the machine producticity and machine’s rate for the cach activity.

Key words： Combination machine tools ; Spindle box ; Process

摘要III

AbstractIV

目录V

1 绪论1

1.1 力源空气压缩机有限公司简介1

1.2 毕业设计（本设计任务简介）1

1.3 对毕业设计（本设计）的要求1

2 组合机床简介2

2.1 组合机床概述2

2.2 组合机床的加工范围2

3 空气压缩机机械加工工艺规程的制订部分3

3.1 工艺方案的制定3

3.2 产品图纸及结构分析3

3.3 毛坯分析、要求及形式的确定4

3.3.1 毛坯的种类的选择4

3.3.2 选择毛坯应考虑的因素4

3.3.3 确定毛坯的制造形式5

3.4 拟定零件加工的工艺路线5

3.4.1 定位基准的选择5

3.4.2 表面加工方法的选择6

3.4.3 加工顺序的安排7

3.5 加工余量、工序尺寸及其公差和毛坯尺寸的确定9

3.5.1 加工余量的拟定9

3.5.2 加工余量及毛坯尺寸的确定11

3.5.3 工序尺寸及其公差的确定12

3.6 加工设备及刀具的选择12

3.6.1 机床的选择12

3.6.2 刀具的选择12

3.7 确定切削用量及工时定额的估算12

3.7.1 切削用量的确定12

3.7.2 工时定额的计算13

3.7.3 切削用量和工时定额的确定14

3.8 机械加工工艺规程17

3.8.1 机械加工工艺规程的作用17

3.8.2 制订机械加工工艺的原则17

3.8.3 制订机械加工工艺规程原始资料 18

4 专用机床设计部分19

4.1 概述19

4.2 机床设计应满足的基本要求19

4.3 机床设计方法21

4.4 机床设计步骤21

4.4 三图一卡的设计22

4.4.1 被加工零件工序图的设计22

4.4.2 加工示意图设计24

4.4.3 组合机床联系尺寸的绘制26

4.4.4 生产率计算卡30

4.5 机床对部件设计的要求32

4.5.1 夹具32

4.5.2 液压原理32

4.6 机床的调试与维修33

4.6.1 机床的调试33

4.6.2 机床的维修34

5 结论与展望35

5.1 结论35

5.2 不足之处及未来展望35

致谢36

参考文献37

附录38

1绪论

1.1 力源空气压缩机有限公司简介

无锡力源压缩机有限公司是由无锡市第二压缩机厂改革组建的有限责任公司，是制造空气压缩机和空气净化设备的专业公司。从20世纪60年代末开始生产微型、小型压缩机。20世纪80年代末开始批量出口微型压缩机主机，目前已形成大批量出口压缩机主机的生产能力，成为中国微、小型压缩机主要出口企业之一。

该公司主要生产活塞式压缩机和空气净化设备二大类产品。该公司生产的活塞压缩机品种齐全，质量可靠，可为您提供不同排气量，不同压力的Z、V、W、S、L型往复活塞式微、小型压缩机和中、高压型压缩机，其排气量从0.036～22m3/min，压力从0.4～10.0MPa的70多种不同规格压缩机品种，产品广泛应用于各个行业。

　　该公司生产的空气净化产品主要包括各型油水分离过滤器，高效除水、除油、除臭过滤器，高温型冷冻干燥机，无热再生吸附式干燥机。产品广泛适用于为各种类型压缩机提供压缩空气净化配套。







内容简介：: 产品型号产品名称车间工序号金工 30毛坯种类铸件设备名称卧铣单件机动辅助1 150r/min 94.2m/min 3mm 2.19 0.392 235r/min 147.6m/min 1mm 1.36 0.24处数签字标记签字日期工艺内容无锡太湖学院机械加工工序卡片会签（日期）工序主轴转速切削速度吃刀深走刀次数编制（日期）走刀量审核（日期）工步内容标记更改文件号日期更改文件号检工时定额以曲轴大孔不加工面及端面定位，大孔内壁压紧粗铣底脚至尺寸1600.1 YG634硬质合金刀片 300钢直尺精铣底脚，保证尺寸。 YG634硬质合金刀片 300钢直尺准终粗铣底脚夹具工序工时XA6132 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号铣底脚平面 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 1 页ntsnts产品型号产品名称车间工序号金工 40毛坯种类铸件设备名称卧铣单件机动辅助1 118r/min 92.7m/min 3mm 2.95 0.532 190r/min 149.2m/min 1mm 1.87 0.034处数签字标记处数签字日期无锡太湖学院机械加工工序卡片工艺内容工步内容编制（日期）走刀量审核（日期）工序主轴转速切削速度吃刀深走刀次数会签（日期）标记更改文件号日期更改文件号检工时定额以底脚和小孔定位，小孔压紧内壁粗铣端面至尺寸 790.1 ，兼顾198，留余量2-3mm YG634硬质合金刀 300钢直尺精铣端面，保证表面粗糙度Ra=3.2 m YG634硬质合金刀 300钢直尺准终粗精铣端面夹具工序工时XA6132 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号粗、精铣大孔端面 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 2 页ntsnts产品型号产品名称车间工序号金工 50毛坯种类铸件设备名称镗床单件机动辅助1 30r/min 16.5m/min 7.5mm 3 1.73 0.312 80r/min 22.6m/min 5mm 2 1.68 0.33处数签字标记处数签字日期无锡太湖学院机械加工工序卡片工艺内容工步内容编制（日期）走刀量审核（日期）工序主轴转速切削速度吃刀深走刀次数会签（日期）标记更改文件号日期更改文件号检工时定额以低脚平面定位，压紧底脚镗大孔160至175 ,保证尺寸1200.1 YT6镗刀 200mm游标卡尺镗小孔80至90 YT6镗刀 200mm游标卡尺准终镗大小孔夹具工序工时T68 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号镗大小孔 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 3 页ntsnts产品型号产品名称车间工序号金工 60毛坯种类铸件设备名称卧铣单件机动辅助1 190r/min 119.4m/min 3mm 1.27 0.232 235r/min 147.7m/min 1mm 1 0.18处数签字标记处数签字日期无锡太湖学院机械加工工序卡片工艺内容工步内容编制（日期）走刀量审核（日期）工序主轴转速切削速度吃刀深走刀次数会签（日期）标记更改文件号日期更改文件号检工时定额以底脚和大孔端面定位，大孔压紧内壁粗铣端面至尺寸 198 YG634硬质合金刀 300钢直尺精铣端面，保证尺寸198 YG634硬质合金刀 300钢直尺准终粗精铣端面夹具工序工时XA6132 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号粗、精铣小孔端面 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 4 页ntsnts产品型号产品名称车间工序号金工 65毛坯种类铸件设备名称卧铣单件机动辅助1 190r/mn 119.4m/min 3mm 1.2 0.22处数签字标记处数签字日期无锡太湖学院机械加工工序卡片工艺内容工步内容编制（日期）走刀量审核（日期）工序主轴转速切削速度吃刀深走刀次数会签（日期）标记更改文件号日期更改文件号工时定额以大孔和大孔端面定位，以底脚平面校三斜面角度粗铣三斜面至尺寸121 ，保证相互角度60 YG634硬质合金刀 300钢直尺检准终斜面铣夹具工序工时XA6132 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号粗铣三斜面 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 5 页ntsnts产品型号产品名称车间工序号金工 65毛坯种类铸件设备名称卧铣单件机动辅助1 235r/min 147.7m/min 1mm 0.95 0.17处数签字标记处数签字日期工艺内容无锡太湖学院机械加工工序卡片会签（日期）工序主轴转速切削速度吃刀深走刀次数编制（日期）走刀量审核（日期）工步内容标记更改文件号日期更改文件号检将平面放置平板，22标准块为测量基准 22标准块工时定额以大孔和大孔端面定位，以底脚平面校三斜面角度精铣三斜面至尺寸1200.1 ，保证相互角度60 YG634硬质合金刀 300钢直尺准终斜面铣夹具工序工时XA6132 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号精铣三斜面 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 6 页ntsnts产品型号产品名称车间工序号金工 70毛坯种类铸件设备名称镗床单件机动辅助1 60r/min 19.8m/min 2.5mm 1 2.48 0.452 60r/min 19.8m/min 2.5mm 1 2.48 0.45处数签字标记处数签字日期无锡太湖学院机械加工工序卡片工艺内容工步内容编制（日期）走刀量审核（日期）工序主轴转速切削速度吃刀深走刀次数会签（日期）标记更改文件号日期更改文件号200.1粗镗三斜孔至尺寸105 保证尺寸790.1和200.1 YT6镗刀 200mm游标卡尺检工时定额以大孔和大孔端面定位，脚板平面辅助定位，用百分首先必须校正夹具表应校准孔平面。注意压板的方向粗镗三斜孔至尺寸106.2 ，保证尺寸790.1和 YT6镗刀 200mm游标卡尺准终斜面铣夹具工序工时T68 1夹具编号夹具名称冷却液204*328*288 1 1设备型号设备编号同时加工件数工序名称材料牌号镗三斜孔 HT200毛坯外形尺寸每坯件数每台件数W1.0-10-01 零(部)件图号共 7 页空气压缩机零(部)件名称曲轴箱第 7 页ntsnts1 1 备注准终单件10 检质检20 准备30 铣金工35 钳金工40 铣金工50 镗金工60 铣金工65 铣70 镗金工80 钳金工标记处数标记处数无锡太湖学院机械加工工艺过程卡片工序号工序名称车间工段会签（日期）审核（日期）编制（日期）设备更改文件号签字日期更改文件号签字日期划线 ,找正油标凸台中心 ,放油孔中心以大孔 ,大孔端面定位 ,上专机 ,粗 ,精镗三斜孔 ,保证图纸要求 , 专机2 等高块保证粗糙度 3.22.粗 ,精铣油标凸台平面 ,保证图纸要求 ,保证粗糙度 3.2以大孔 ,大孔端面定位,粗精铣三斜面,保证图纸要求,粗糙度3.2 W1.0-742-023.精铰大小孔 ,保证图纸要求 ,保证粗糙度 1.61.以底脚定位 ,粗 ,精铣小孔端面 ,按图纸要求 ,保证两平面尺寸 ,保证粗糙度3.21.上专机 ,以底脚定位 ,镗大小孔 ,留余量 0.2mm 专机12.粗铰大小孔 ,按图纸尺寸留余量 0.05-0.06mm以顶面定位上钻夹具 ,钻底脚孔保证图纸要求 W1.0-732-01以底脚定位 ,粗 ,精铣大孔端面 ,两平面 ,留余量 2-3mm,保证粗糙度 3.22.浸涂铁红防锈漆以顶面定位 ,粗 ,精铣曲箱底脚平面 .保证图纸要求 ,粗糙度 6.3 W1.0-742-01清砂处理1.喷丸至外表面无砂粒1.铸件质量应符合 GB9439-88灰铸铁的规定要求2.外观铸件无沙眼，气孔，裂纹等缺陷。每毛坯件数每台件数工时毛坯入厂检查工艺装备工序内容材料牌号 HT200 毛坯种类铸件毛坯外形尺寸产品型号 W-1.0/7 零 (部 )件图号 W1.0-10-01 共 2 页产品名称空气压缩机零 (部)件名称曲轴箱第 1 页nts1 1 备注准终单件90 钳金工100 钳金工110 钳金工120 钳金工130 辅助金工140 检质检标记处数标记处数会签（日期）审核（日期）工序号工序名称车间工段无锡太湖学院机械加工工艺过程卡片工序内容更改文件号签字日期更改文件号签字日期编制（日期）去毛刺 ,清洗 ,干燥入库检验 (按图纸要求 )以大孔及平面定位 ,上钻模 ,钻 ,攻两平面螺纹孔 ,孔的分布按图纸 W1.0-732-03要求 ,保证粗糙度 6.32.以底脚平面定位 ,上钻模 ,钻 ,攻顶面螺纹孔 .3.钻 ,攻 ,加油孔 ,保证图纸要求 ,保证粗糙度 6.3以底脚定位 ,上斜角铁夹具 ,上钻模 ,钻 ,攻两斜面螺纹孔 W1.0-732-021.划线 ,找正加油孔中心4.钻油标定位孔5.上油标夹具 ,钻 ,攻 ,油标孔通用夹具2.刮平放油孔平面3.放油孔攻丝每毛坯件数每台件数工时1.钻放油孔设备工艺装备材料牌号 HT200 毛坯种类铸件毛坯外形尺寸产品型号 W-1.0/7 零 (部 )件图号 W1.0-10-01 共 2 页产品名称空气压缩机零 (部)件名称曲轴箱第 2 页nts图号名称材料1 1 0.52 10 0.53 200 5000 0.054 120 140 190 0.2 150 1.20 5 343 5000 0.076 10 0.0027 0.51.20 1.622 2.822共计本机床装卸工件时间取为1分生产率计算卡被加工零件工步名称负荷率 86.8%序号备注被加工零件数（个）加工直径（毫米）加工长度（毫米）工作行程（毫米）切削速度（米/分）每分钟转速（转/分）松开工件卸下工件单件总工时机床实际生产率Q1 21.3（件/小时）机床理想生产率Q 18.5（件/小时）工时（分）装入工件工件定位、夹紧工件快进工件共进工件快退每转进给量（毫米/转）每分钟进给量（毫米/分）机动时间辅助时间HT200 硬度 HB200250工序名称铣三斜面工序号 65毛坯种类铸件空气压缩机毛坯重量nts 系别：信机系班级：机械 63机械 96 学生姓名：李想课题（设计）名称：空气压缩机机身机械加工工艺设计及机身铣三斜面专用机床设计周次起止日期工作计划、进度每周主要完成内容存在问题、改进方法指导教师意见并签字132012年 11月 12日 -2012年 12月 2日下达毕业设计任务,学生完成毕业设计开题报告。查阅文献，完成开题报告存在问题：对课题难易程度理解不够，难点分析不足，分析能力欠缺，有些问题理解不够全面。改进方法：在指导老师的帮助下，进一步消化本课题。410 2012年 12月 3日 -2013年 1月 20日指导专业实训机械制造综合实训，机械零件加工方法和加工工艺编制存在问题：发现理论知识与实际操作、设计存在很大差别，动手能力不足。改进方法：及时的对自己的知识点查漏补缺，了解设备的基本操作及特点，理解工艺编制。1112 2013年 1月 21日 -3月 1日指导毕业实习到企业进行岗位实习，了解本专业的实践知识存在问题：缺乏实际动手能力。改进方法：向工厂师傅请教，不断学习，恪尽职守的工作。13 2013年 3月 4日 -3月 8日查阅参考资料查阅与设计有关的参考资料不少于10篇，其中外文不少于5篇存在问题：身边资料欠缺，相关理论知识不足。改进方法：利用周末的时间去校图书馆、新华书店等地方翻阅书籍，并利用工作之余在网上搜索相关资料加以整理14 2013年 3月 11日 -3月 15日翻译外文资料翻译外文资料（8000-10000字符）存在问题：英语水平不高，专业词汇不足。改进方法：上网查询，翻阅字典并结合翻阅软件，向同学求助等方法，不断提升英语翻译能力。15 2013年 3月 18日 -3月 22日布置课题参考资料，收开题报告实训材料阅读与铣削设计有关的材料存在问题：阅读中部分内容与教学内容不一致。改进方法：有指导老师补充。16 2013年 3月 25日 -3月 29日讲解有关方案制订原则方法重点掌握设计方案的确定存在问题：对方案制定，重点掌握不够。改进方法：教师指导进行。17 2013年 4月 1日 -4月 5日方案比较确定找出设计进度确定方案，落实具体设计要求并开展工作存在问题：设计步骤及每一步的工作任务。改进方法：通过老师的讲解对其深入了解。存档编码：无锡太湖学院 2013 届毕业作业周次进度计划、检查落实表开始日期:2012-11-12nts周次起止日期工作计划、进度每周主要完成内容存在问题、改进方法指导教师意见并签字18 2013年 4月 8日 -4月 12日理论分析及结构设计结合理论进行结构分析存在问题：对于结构分析不够完全。改进方法：在教师协调下，提出改进结构意见。19 2013年 4月 15日 -4月 19日结构图检查在计算及图纸方面完成本图设计存在问题：对于本图设计不够完整。改进方法：在教师协调下，提出改进意见。20 2013年 4月 22日 -4月 26日完成图纸，包括对说明书的编制进一步检查图面，全面完成存在问题：工作繁忙，用于设计的时间不够。改进方法：解决工作与设计的矛盾。21 2013年 4月 29日 -5月 3日全面检查设计内容的进度落实要求图面工作量及说明书编制达到要求存在问题：工作量完成80%。改进方法：检查后发现工作量完成80%左右，要求及时完成。22 2013年 5月 6日 -5月 10日结合设计提出改进意见，落实答辩要求最后检查设计的质量及说明书书写情况存在问题：图面及说明书的细节问题。改进方法：在指导教师指导下，修改部分问题的图面及说明书。23 2013年 5月 13日 -5月 17日布置答辩内容、过程及应阅读的材料检查答辩的准备及阅读情况存在问题：对答辩中的注意事项不够了解。改进方法：教师要求学生在答辩中应采取的态度与要求。24 2013年 5月 18日 -5月 20日设计说明书（论文）、摘要和小结编写完成设计说明书、摘要和小结存在问题：条例不够清晰，说明书撰写不规范。改进方法：理顺思路，按照学院要求撰写。25 2013年 5月 21日 -5月 25日上交资料、准备答辩整理所有资料上交指导教师，答辩无说明： 1、“工作计划、进度”、“指导教师意见并签字”由指导教师填写，“每周主要完成内容”，“存在问题、改进方法”由学生填写。2、本表由各系妥善归档，保存备查。nts周次起止日期工作计划、进度每周主要完成内容存在问题、改进方法指导教师意见并签字nts备注存档编码：无锡太湖学院 2013 届毕业作业周次进度计划、检查落实表开始日期:2012-11-12nts备注说明： 1、“工作计划、进度”、“指导教师意见并签字”由指导教师填写，“每周主要完成内容”，“存在问题、改进方法”由学生填写。2、本表由各系妥善归档，保存备查。nts备注nts编号无锡太湖学院毕业设计（论文）相关资料题目：空气压缩机机身机械加工工艺设计及机身铣三斜面专用机床设计信机系机械工程及自动化专业学号： 0923264 学生姓名：李想指导教师：张大骏（职称：高级工程师）（职称：） 2013年 5月 25日 nts 目录一、毕业设计（论文）开题报告二、毕业设计（论文）外文资料翻译及原文三、学生 “毕业论文（论文）计划、进度、检查及落实表 ” 四、实习鉴定表 nts无锡太湖学院毕业设计（论文）开题报告题目：空气压缩机机身机械加工工艺设计及机身铣三斜面专用机床设计信机系机械工程及自动化专业学号： 0923264 学生姓名：李想指导教师：张大骏（职称：高级工程师）（职称：） 2012年 11月 20日 nts课题来源本课题是由无锡市力源压缩机有限公司提供的系统课题科学依据（包括课题的科学意义；国内外研究概况、水平和发展趋势；应用前景等）力源压缩机有限公司（原无锡市第二压缩机厂）是一家具有多年制造小型空气压缩机的生产公司，生产经验十分丰富，但多年来生产的品种繁多，型号变换快，一直来形成相当的规模。近期参加了上海压缩机集团，因而在若干品种上有较大批量的生产任务，这样就需要由原来单件小批量的规模扩展为成批生产，对此就需要有符合生产纲领的机械加工工艺及与之适应的加工专用机床。本课题是受该公司要求提供该公司的设计方案。 nts研究内容 1、适合的生产加工工艺 2、机加工工艺相配的专用机床（包括总体方案、部件及控制系统设计方案）要求其经济性好，并能为该生产厂家适用。拟采取的研究方法、技术路线、实验方案及可行性分析力源压缩机有限公司是生产小型空气压缩机的专业厂家，有多年生产经历（三十余年）积累了丰富的经验。现在面临扩大规模和转型。厂方可提供一定的技术资料。并可以接受学生的参观实习，所以先组织学生下厂参观，接受任务，熟悉原有的单件、小批量生产工艺情况及所使用的设备。在此基础上提出新的加工工艺和符合新工艺的加工专用机床方案，供厂方讨论，提出改进意见。然后设计完整的的机械加工工艺方案及相应的机械加工专用机床。研究计划及预期成果研究计划： 2012 年 11 月布置任务。 2013 年 1 月下厂参观实习，熟悉工厂的生产情况 2013 年 2 月 3 月拟定工艺方案，提出专机总体方案，供讨论 2013 年 4 月 5 日 10 日确定机械加工工艺方案，专机总体布置 11 日 20 日专机设计、部件设计 21 日 30 日改进并完成设计 2013 年 5 月 1 日 15 日撰写设计说明书 16 日 20 日总结修改预期成果：图纸，工艺卡片，工序卡片，设计说明书。 nts特色或创新之处该专用机床既可以适用于二斜面的空气压缩机机身的斜面加工，也可以使用与机身的三斜面加工。有相当的柔性，且精度提高，生产效率提高，劳动强度减轻。已具备的条件和尚需解决的问题力源压缩机有限公司可提供一部分技术资料及生产经验，并可容纳学生参观实习，但设计资料缺乏，需自行收集。指导教师意见同意作为本专业学生毕业设计课题，其难度和工作量均合适。指导教师签名：年月日教研室（学科组、研究所）意见教研室主任签名：年月日系意见主管领导签名：年月日 nts英文原文 Combine tool machine a slippery pedestal the research of the dynamic state characteristic 【 Summary】 this text make use of power key to match diagram and appearance space analyticalthe method hurtle and exercise a steady sex problem to carry on analysis and study towards combining tool machine slip pedestal of ex-ly, the liquid which builds up a slippery pedestalpresses to drive system a from adjust to carry on the back to press to adjust soon dynamic statemathematics model of system.Pass a calculator numeral to imitate really, hurtle and exercise notsteady reason and main impact factor before analyzing a slippery pedestal a creation.From in get, if reasonably design a liquid to press an urn with from adjust to carry on the back to press toadjust structure size of press the valve, can make the dynamic state characteristic of slipperypedestal shown a Zhao improvement. One, preface Combine a tool machine work in, the varieties which slip a size of sport speed and direction andthe load bear all influence degree differently it work function.Especially in the work enter theprocess.Slippery the on the stage load of suddenly disappear causable of ex- hurtle and load ofthe period variety cause of the sport gravamen be steady, all is processed the surface quality ofpiece the influence, severity hour will cause the knife break.Request according to tool machinefactory in Dalian, the author adopts power key to match diagram and the analytical method establishment of the appearance space to combine the new liquid that the tool machine slips apedestal to press to drive system a from adjust to carry on the back to press to adjust soon dynamic state mathematics model of system.Pass a calculator numeral to imitate really and study.Analytical slippery the pedestal produce ago hurtle and exercise not steady reason and main impact factor, in order to improvement slippery the dynamic state characteristic of pedestal. Two, dynamic state mathematics model The liquid which combines tool machine to slip a pedestal presses to drive system a from adjustto carry on the back to press to adjust soon the work principle diagram of system,such as diagram I, to show.That system is the work circulation which uses to complete the work enter a stop a back quickly.When slippery pedestal work enter, 34 change to be placed in diagram to show a right toward the valve, the oil pump of provide hydraulic-pneumatic dint under thefunction which over flows valve look like ground to keep Heng settle, the oils liquid flows through to change toward the valve and adjust soon valve juniors into the oil urn of have no a pole chamber, push slippery the set be left shift;In the meantime, oil urn the pressure oil that if there is pole chamber, eject through from adjust to carry on the back to press valve and change to flow to return to fuel tank toward the valve.In this process, two one-way valves with overflowed to flow valve and always dont change original work appearance.Object that system so of complications not line system, for the sake of easy to study its dynamic state characteristic, build up a reasonable simple ntsdynamic state mathematics model which only emphasizes to consider main impact factor is particularly important12.Know from the theories the analysis with experiment the research:That system of process time be soon that the process which is far larger than to adjust valve is soonhorary, oil urn have no the pole chamber effectively accepts to press area very greatly, adjust soon valve export discharge of super adjust a reflection in a moment is slippery pedestal sport speed of the variety be pimping2.For openning widely and going deep into dynamic state characteristic of study the system, make research work can on the microcomputer availably carry on, this text to original model2 do further simplification, on thesupposition that adjust soon the valve outputs in the whole transition process of system Hengsettle of discharge, treat it as to flow a source.So, the structure sketch plan of the dynamic state model of system such as figure 2 show, it from oil urn, slippery set, carry on the back to press valve and unite connectors roads etc. to constitute from the Diao.This text in use of sign asfollows: S 1-flow a source, then adjust soon valve export discharge; Sel-the slippery set glide friction Sel-the slippery set glide friction C5, C6-the etc. effect liquid of tube road permit: R5, R7-take care of an etc. of road effect liquid Zu; V3, the V4-oil urn has no pole chamber and has a pole chamber the contents to accumulate; P3, the pressure which have no pole chamber and have a pole chamber of the P4-oil urn F-the slippery set bear a load, V-slip a pedestal sport speed.The this literary grace hard working rate key matches diagram and appearance space to fold a method establishment sport mathematics model of the system for cent. Power keys matching diagram is an effect to flow diagram, it is the energy which presses system to deliver a way, take actual structure as foundation, the function which uses concentration parameter the of sub- system relates to an abstract earths surface to show for the Zu a dollar Rand permits sex dollar C and sensitive faculty dollar I of three kinds of function dollar.Adopt thiskind of method sets up a mold physical concept clear, combine the appearance space analysis method can compare to accurately describe with analysis line system, that method is in the hour the area study complications the line system dynamic state characteristic not of a kind of valid of method. According to from adjust to carry on the back to press to adjust soon the main characteristic ofeach component of system and set up mold rule1, get figure 3 show of the power key of system match diagram.Each half arrowhead on the key in diagram means that the power fly to, 2 which constitute power change the quantity be a dint to change to measure(hydraulic-pneumatic P or function dint F) and flow to change to measure(discharge q or speed v).O crunode means in the system to belong to merge a conjunction, each dint of key changes to measure equality but flows ntsto change to measure it with is zero;1 crunodes mean in the system to belong to establish a conjunction, each key is upper-class to change to measure equality but dint to change to measure it with is zero.TF means a different energy form the transformation machine of, the TF bottom mark of the letter of alphabet mean that the dint changes to measure or flows to change to measure of conversion specific value.The short and horizontal Gang of key means that key ascend two change the cause and effect between quantities relate to.The whole arrowheadses mean a control relation.Permit the dint of sex dollar and sensitive faculty dollar to change to measure in three kinds of function dollar and flow to change to measure it have integral calculus or differential calculus relation, therefore, according to figure 3 can deduce to submit to havenine complications that the appearances change to measure not the line appearance square distance.This text to slippery pedestal the research of the dynamic state characteristic from slippery pedestal of ex- hurtle and exercise steady sex both side to commence, use four ranks certainly tread long Runge-Kutta method at IBM-PC microcomputer up carry on numeral to imitate really, imitate a true result to distinguish such as figure 4 with figure 5 show. Three, slip to hurtle before the pedestal Slippery before the pedestal hurtle phenomenon is what function at slip the load of on the stage suddenly disappeared( if drilled to deeply work circumstance) cause.In this process, the variety which slips two chamber pressure P3s and P4 of the load F, sport speed V, oil urn of pedestal can from the figure 4 imitate true result see.When the slippery pedestal evenly and soon exercises under the function of the load, the oil urn has no pole chamber oil liquid pressure higher.It came together a great deal of energy in the oil liquid.While loading to suddenly disappear, that chamber is hydraulic-pneumatic to immediately and quickly lower, the oil liquid turns into the process of low-pressure Tai toward system to release a lot of energies from the high pressure Tai and cause slippery pedestal the high speed pounds at forward.However, slip a pedestal of ex- hurtle to make an oil urn to have a pole chamber the oil liquid is press to cause to carry on the back to press to go up, thus the depletion drop one part of energies in the system, to slippery pedestal of front blunt certainly repress a function.Should see, in the system study, from adjust to carry on the back entrance pressure of press the valve and be subjected to an oil urn two chambers hydraulic-pneumatic comprehensive function.BE load a disappeared moment, from adjust to carry on the back the pressure of press the valve quickly rises, and stabilize the number which starts to carry on the back to press at the beginning in the Gao up.From the diagram it is thus clear that, from adjust to carry on the back to press to adjust soon the system is in a twinkling load to disappear oil urn carry the range that the pressure go up on oil urns back big in traditionally adjust soon system, so, its oil urn energy which have the oil liquid in the pole chamber absorption many;Result, slip a pedestal of ex- blunt the quantity adjusts system to soon want than the tradition small be close to 20%.It is thus clear that adoption from adjust to carry on the back a Chuang to adjust soon system conduct and actions to drive the slippery pedestal of system to have good characteristic in the aspects of hurtling before repress, among them from adjust to carry on ntsthe back to press valve to have very your work to use. Four, slip the exercise of pedestal steady While regarding as a load period of used for the slippery on the stage variety(if the Xian pares to process a circumstance), the sport speed which slips a pedestal wants to produce certain。motion.In order to process the request of quality at assurance, have to possibly let up its speed motion scope.Set out from the convenience discussed a problem, suppose a load by the sine wave regulation variety, get thus of numeral imitate a true result such as figure 5 show.Be showed from this that system and traditionally adjust soon system to have same variety regulation with very close of number.The reason is that the variety range of load isnt big, oil urn two chamber pressures also more and greatly didnt change, end cause from adjust to carry on the back a function of press the valve not enough obvious. Five, improve measure Study result enunciation, with from adjust to carry on the back to press to adjust soon system for drive the slippery set of system, its dynamic state characteristic surpasses to traditionally adjustsoon system.Want to reduce the ex- blunt quantity of slippery pedestal, must be load the disappeared moment quickly raises an oil urn have a pole chamber of carry on the back pressure;Want to raise the exercise of slippery pedestal steady to need to increase system of rigid, the main measure lies in the physical volume which lets up an oil liquid.Know from the structure of the system, the oil urn has a pole chamber to have with the row pipeline one very big capacity and show such as the figure 6 as.It of the existence delay with Shuai reduce from adjust to carry on the back a function of press the valve, also lowered system on the other hand of rigid, it limitted to hurtle characteristic and exercise the further improvement of steady ago.Therefore, the improvement slippery pedestal dynamic state characteristic can carry on from two paths:Namely change an oil urn capacity and change from adjust to carry on the back to pressvalve structure size.The comparison passed one true calculation and result of the imitate of parameter of the system structure can get:When oil urn have pole chamber and row pipeline thecapacity V4 together has no pole chamber with enter pipeline the capacity V3 of ratio from original of 5.5 change to 1, such as the figure 6 bs show, in the meantime, from adjust to carry on the back to press the valve valve Xin bottom to carry diameter is increase by the original 10 mms for the 13 mms, damping triangle slot side long let up a 0.7 mms from the original lmm, canmake slippery pedestal of ex- hurtle quantity to let up 30%, transfer the process obviouslyshortens for time and slip the exercise of pedestal steady to get to very greatly improve. Six, conclusion Imitate a true research through theories analysis and calculator, from adjust to carry on the back to press to adjust soon system Be combine a drive of the tool machine slippery pedestal system to have much of expansion use value.The main factor which influences a slippery pedestal dynamic state characteristic is oil urn internal structure with from adjust to carry on the back ntstopress valve of size.If as to its carry on a reasonable design, the dynamic state characteristic canmake to slip a pedestal is shown Zhao ground an improvement.Also explained adoption power in make to slip a pedestal is shown Zhao ground an improvement.Also explained adoption power incomplications not line is convenience valid of. In 1946 the first electronic accounting machine was born in the world, thisindicated the humanity created has been possible to strengthen and partially toreplace the mental labor the tool. It with the humanity these which in the agriculture, the industry society created only is strengthens the physical labor the tool to compare, got up the quantitive leap, entered the information society for the humanity to lay the foundation. After 6 years, in 1952, computer technology applied to the engine bed , the first numerical control engine bed were born in US. From this time on, thetraditional enginebed hashad the archery target change. Since nearly half century, the numerical control system has experienced two stages and six generation of development. The early computer operating speed is low, was not big to then science computation and the data processing influence, but could not adapt the engine bed real-time control request. The people can not but use numeral logic circuit to build to become an engine bed special purpose computer to take the numerical control system, is called the hardware connection numerical control (HARD-WIREDNC), Jian Chengwei numerical control (NC). Along with the primary devicedevelopment, this stage has had been through repeatedly three generations, namely 1952first generation of - electron tube; 1959second generation of - transistor; 1965 third generation - small scale integration electric circuit. In 1970, the general minicomputer already appeared and the mass production. Thereupon transplants it takes the numerical control system the core part, from this time on entered the computer numerical control (CNC)the stage (which shouldhave computer in front of the general two characters to abbreviate). In 1971, American INTEL Corporation in the world first time the computer two most cores part - logic units and the controller, used the large scale integrated circuit technology integration on together the chip, called it the microprocessor (MICROPROCESSOR),alsomightbe called the centralprocessing element (tobe calledCPU). The microprocessor is applied to 1974 in the numerical control system. This is because minicomputer function too strong, controlled an engine bed ability to have wealthily (therefore once uses in controlling the multi- Taiwan engine bed at th
