高楼火灾救生装备设计【7张CAD图纸+毕业论文】【答辩优秀】

资源目录

高楼火灾救生装备设计【全套CAD图纸+毕业论文】【答辩优秀】.rar

高楼火灾救生装备设计

毕业论文（设计）鉴定意见.doc---(点击预览)

毕业论文（设计）评阅表.doc---(点击预览)

毕业论文（设计）任务书.doc---(点击预览)

毕业论文正文.doc---(点击预览)

开题报告.docx---(点击预览)

外文文献.doc---(点击预览)

上连杆.dwg

中连杆.dwg

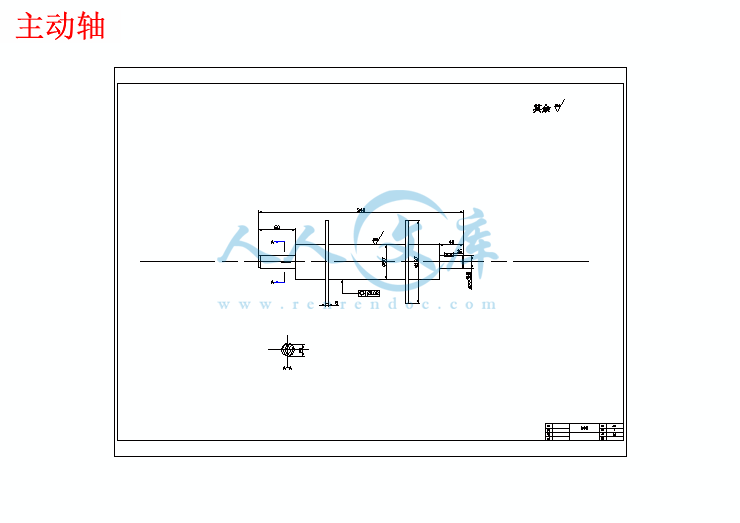

主动轴.dwg

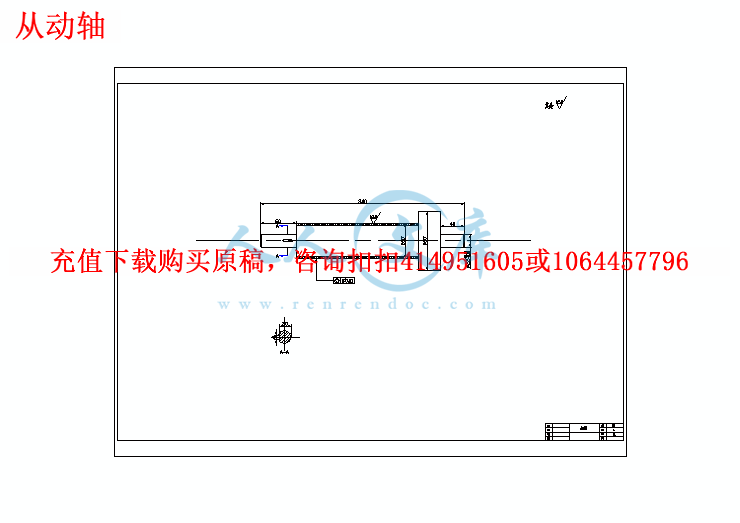

从动轴.dwg

摇杆.dwg

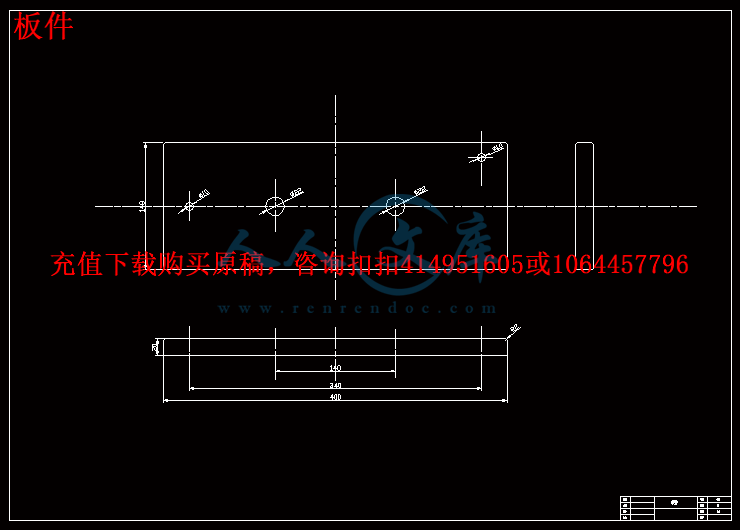

板件.dwg

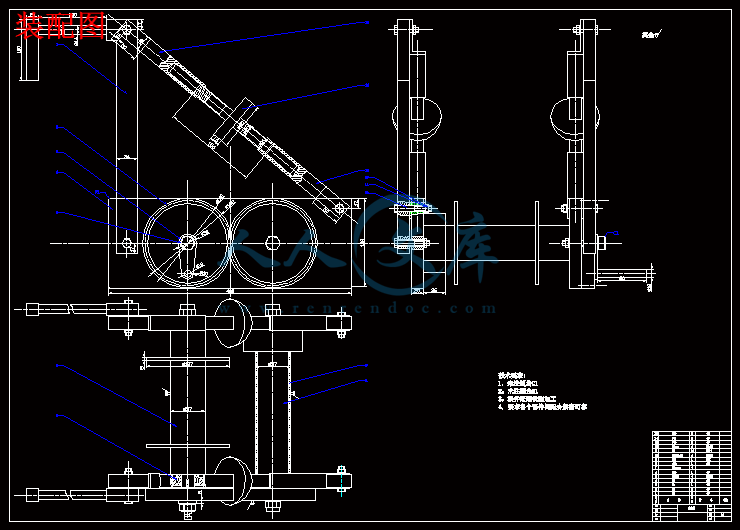

装配图.dwg

压缩包内文档预览：

编号：472142 类型：共享资源大小：548.72KB 格式：RAR 上传时间：2015-08-13 上传人：好资料QQ****51605 IP属地：江苏

45
积分

版权申诉 word格式文档无特别注明外均可编辑修改；预览文档经过压缩，下载后原文更清晰！ 立即下载

关键词：: 高楼火灾救生装备设备设计全套 cad 图纸毕业论文答辩优秀优良

资源描述：

摘要…………………………………………………………………………………………………......1

Abstract……………………………………………………………………………………….................1

第一章绪论………………………………………………………………………………………...2

1.1设计背景及意义2

1.2国内外研究概况…………………………………………………………………………….......3

1.3高楼逃生装置的实例4

第二章整体方案设计6

2.1整体方案设计.............................................................................................................6

2.2装置的原理....................................................................................................................7

2.3装置的优点与不足8

第三章装置零部件设计10

3.1轴的设计10

3.2齿轮设计13

3.3棘轮的设计16

3.4其他零部件的设计19

第四章计算和验证20

4.1静力学平衡计算20

4.2绕绳计算21

4.3速度计算22

结论25

致谢26

参考文献27

摘要

本文从开始介绍了高楼逃生装置的背景和研究意义，并对现有的一些高楼逃生装置进行了分析和对比，发现大多数的装置有成本高、机构复杂、安全系数低等一些不足之处。本设计根据机械创新理论，设计出一种基于负反馈闭环系统的高楼逃生装置，该装置具有成本低、操作简单、安全系数高、纯机械无电气结构等优点，最后通过对设计机构的零部件进行计算，得出整个机构的图形，在多次试验和计算之后，确定了不论是小孩还是老人都能从高楼平安降落到地面，达到了本次设计的目的。

关键词：机械创新理论负反馈闭环系统高楼逃生器纯机械无电气结构

Abstract

Firstly,this paper describes the background and significance of tall building escape device.And some of the existing tall building escape devices are analyzed and compared，most of the devices are costly, complex organization, the safety factor and low number of shortcomings are found. The design applied theory of inventive problem solving. To design a negative feedback loop system based on tall building escape device. The device has many advantages such as low cost, simple operation, high safety factor, purely mechanical no electrical structure. Finally, the components of the calculated design agency .The graphics get in the whole body ,after many tests and analysis, determining whether children or the elderly can safely descend to the ground from high buildings. the purpose of this design has achieved.

Key words: Machinery innovation theory Negative feedback loop system Tall building escape device Purely mechanical without electrical structure

第一章绪论

1.1 设计背景及意义

随着建筑高度的增加和日趋密集，建筑的安全隐患也越来越多，即使在发达国家的高楼遇有火灾、爆炸等事件时，由于时间、空间等诸多因素的限制，人员自救逃生也是一个急待解决的重要问题。高楼火灾的有效救援和应急逃生，已经成为人们高度关注的社会问题。高层建筑一般功能较多，内部通道和外部环境情况复杂，一旦发生火灾，由于烟囱效应，火势和浓烟就会迅速扩大，很短时间内蔓延到内部楼梯和走廊，封锁正常的疏散通道，至使楼上被困人员无法逃生。所以逃生人员自救是一个亟待解决的重要问题。高楼突然失火或其他灾难发生时 ,电梯不能用,楼梯阻塞,而一般地面救援装备的举高和投射能力又远远的落后于高层建筑的高度发展而且装备体积庞大受道路交通，建筑周边环境等方面的影响因而延误救援时机，这样的情况每年都有发生 ,也有很多人因无法逃生而遇难,所以怎样快速有效的逃离火灾建筑成了决定生死的问题，而高楼逃生装置在这样的环境下应运而生。然而在人们将越来越多的精力和时间都投入到对安全问题保障研究的同时,却忽略了最基础的一种手段 ,在人们越来越多的用到各种高科技和现代手法进行安全保障的同时,却忽略意外事件的发生,是不可以借助外力和各种现代手段解决的 ,要靠最基础和最简单的方式 ,也就是机械传动的方式才是最安全和稳定的。

本课题要求针对高层建筑实际情况，设计一种在发生火灾情况下，能帮助人方便、快捷的逃生的工具。要求设计出的逃生器能适合各种结构的建筑物，运行实现自动化，并且要求操作方便，可以折叠，体积和重量在一个人可以操作的限度范围内。可以多次往返高层建筑进行营救。从而能最大限度的减少火灾中的人员伤亡。通过分析比较现有的一些高楼逃生器，大多数装置虽然能达到高楼逃生这一功能，但其结构原理复杂，操作繁琐，安全性差，生产成本高，部分装置还需要电力控制，局限性大(发生地震或火灾时很有可能断电，也不允许操作人员进行复杂的操作)。所以本设计采用一种基于负反馈闭环系统的高楼逃生装置，装置结构简单，操作简便，且无需电力或其他能源驱动，纯机械结构。其原理是利用逃生人员的重力，通过机构的转换，产生阻止逃生人员快速下落的阻力，随着下降中绕绳层数的减少，包角增大，阻力增大，使逃生人员依次有加速、匀速、减速下降的过程，最终以安全速度到达地面。装置的仰角大小可以人为调节。当从动轴与安全绳的粗糙度、安全绳的直径发生改变时可以通过改变仰角的大小使装置仍然可以正常使用，适应了各种环境。通过计算，结果达到预期要求，借助本装置逃生人员可以以安全的速度平稳的下落到地面。因而可以在灾难发生的时候保证人的生命安全。符合设计要求。









内容简介：: 1 GEAR AND SHAFT INTRODUCTION Si Tuzhong Abstract: The important position of the wheel gear and shaft can falter in traditional machine and modern machines.The wheel gear and shafts mainly install the direction that delivers the dint at the principal axis box.The passing to process to make them can is divided into many model numbers, useding for many situations respectively.So we must be the multilayers to the understanding of the wheel gear and shaft in many ways . Key words: Wheel gear;Shaft In the force analysis of spur gears, the forces are assumed to act in a single plane. We shall study gears in which the forces have three dimensions. The reason for this, in the case of helical gears, is that the teeth are not parallel to the axis of rotation. And in the case of bevel gears, the rotational axes are not parallel to each other. There are also other reasons, as we shall learn. Helical gears are used to transmit motion between parallel shafts. The helix angle is the same on each gear, but one gear must have a right-hand helix and the other a left-hand helix. The shape of the tooth is an involute helicoid. If a piece of paper cut in the shape of a parallelogram is wrapped around a cylinder, the angular edge of the paper becomes a helix. If we unwind this paper, each point on the angular edge generates an involute curve. The surface obtained when every point on the edge generates an involute is called an involute helicoid. The initial contact of spur-gear teeth is a line extending all the way across the face of the tooth. The initial contact of helical gear teeth is a point, which changes into a line as the teeth come into more engagement. In spur gears the line of contact is parallel to the axis of the rotation; in helical gears, the line is diagonal across the face of the tooth. It is this gradual of the teeth and the smooth transfer of load from one tooth to another, which give helical gears the ability to transmit heavy loads at high speeds. Helical gears subject the shaft bearings to both radial and thrust loads. When the thrust loads become high or are objectionable for other reasons, it may be desirable to use double helical gears. A double helical gear (herringbone) nts 2 is equivalent to two helical gears of opposite hand, mounted side by side on the same shaft. They develop opposite thrust reactions and thus cancel out the thrust load. When two or more single helical gears are mounted on the same shaft, the hand of the gears should be selected so as to produce the minimum thrust load.Crossed-helical, or spiral, gears are those in which the shaft centerlines are neither parallel nor intersecting. The teeth of crossed-helical fears have point contact with each other, which changes to line contact as the gears wear in. For this reason they will carry out very small loads and are mainly for instrumental applications, and are definitely not recommended for use in the transmission of power. There is on difference between a crossed helical gear and a helical gear until they are mounted in mesh with each other. They are manufactured in the same way. A pair of meshed crossed helical gears usually have the same hand; that is ,a right-hand driver goes with a right-hand driven. In the design of crossed-helical gears, the minimum sliding velocity is obtained when the helix angle are equal. However, when the helix angle are not equal, the gear with the larger helix angle should be used as the driver if both gears have the same hand. Worm gears are similar to crossed helical gears. The pinion or worm has a small number of teeth, usually one to four, and since they completely wrap around the pitch cylinder they are called threads. Its mating gear is called a worm gear, which is not a true helical gear. A worm and worm gear are used to provide a high angular-velocity reduction between nonintersecting shafts which are usually at right angle. The worm gear is not a helical gear because its face is made concave to fit the curvature of the worm in order to provide line contact instead of point contact. However, a disadvantage of worm gearing is the high sliding velocities across the teeth, the same as with crossed helical gears. Worm gearing are either single or double enveloping. A single-enveloping gearing is one in which the gear wraps around or partially encloses the worm. A gearing in which each element partially encloses the other is, of course, a double-enveloping worm gearing. The important difference between the two is that area contact exists between the teeth of double-enveloping gears while only line contact between those of single-enveloping gears. The worm and worm gear of a set have the same hand of helix as for crossed helical gears, but the helix angles are usually quite different. The helix angle on the worm is generally quite nts 3 large, and that on the gear very small. Because of this, it is usual to specify the lead angle on the worm, which is the complement of the worm helix angle, and the helix angle on the gear; the two angles are equal for a 90-deg. Shaft angle. When gears are to be used to transmit motion between intersecting shaft, some of bevel gear is required. Although bevel gear are usually made for a shaft angle of 90 deg. They may be produced for almost any shaft angle. The teeth may be cast, milled, or generated. Only the generated teeth may be classed as accurate. In a typical bevel gear mounting, one of the gear is often mounted outboard of the bearing. This means that shaft deflection can be more pronounced and have a greater effect on the contact of teeth. Another difficulty, which occurs in predicting the stress in bevel-gear teeth, is the fact the teeth are tapered. Straight bevel gears are easy to design and simple to manufacture and give very good results in service if they are mounted accurately and positively. As in the case of squr gears, however, they become noisy at higher values of the pitch-line velocity. In these cases it is often good design practice to go to the spiral bevel gear, which is the bevel counterpart of the helical gear. As in the case of helical gears, spiral bevel gears give a much smoother tooth action than straight bevel gears, and hence are useful where high speed are encountered. It is frequently desirable, as in the case of automotive differential applications, to have gearing similar to bevel gears but with the shaft offset. Such gears are called hypoid gears because their pitch surfaces are hyperboloids of revolution. The tooth action between such gears is a combination of rolling and sliding along a straight line and has much in common with that of worm gears. A shaft is a rotating or stationary member, usually of circular cross section, having mounted upon it such elementsas gears, pulleys, flywheels, cranks, sprockets, and other power-transmission elements. Shaft may be subjected to bending, tension, compression, or torsional loads, acting singly or in combination with one another. When they are combined, one may expect to find both static and fatigue strength to be important design considerations, since a single shaft may be subjected to static stresses, completely reversed, and repeated stresses, all acting at the same time. The word “shaft” covers numerous variations, such as axles and spindles. Anaxle is a nts 4 shaft, wither stationary or rotating, nor subjected to torsion load. A shirt rotating shaft is often called a spindle. When either the lateral or the torsional deflection of a shaft must be held to close limits, the shaft must be sized on the basis of deflection before analyzing the stresses. The reason for this is that, if the shaft is made stiff enough so that the deflection is not too large, it is probable that the resulting stresses will be safe. But by no means should the designer assume that they are safe; it is almost always necessary to calculate them so that he knows they are within acceptable limits. Whenever possible, the power-transmission elements, such as gears or pullets, should be located close to the supporting bearings, This reduces the bending moment, and hence the deflection and bending stress. Although the von Mises-Hencky-Goodman method is difficult to use in design of shaft, it probably comes closest to predicting actual failure. Thus it is a good way of checking a shaft that has already been designed or of discovering why a particular shaft has failed in service. Furthermore, there are a considerable number of shaft-design problems in which the dimension are pretty well limited by other considerations, such as rigidity, and it is only necessary for the designer to discover something about the fillet sizes, heat-treatment, and surface finish and whether or not shot peening is necessary in order to achieve the required life and reliability. Because of the similarity of their functions, clutches and brakes are treated together. In a simplified dynamic representation of a friction clutch, or brake, two inertias I1 and I2 traveling at the respective angular velocities W1 and W2, one of which may be zero in the case of brake, are to be brought to the same speed by engaging the clutch or brake. Slippage occurs because the two elements are running at different speeds and energy is dissipated during actuation, resulting in a temperature rise. In analyzing the performance of these devices we shall be interested in the actuating force, the torque transmitted, the energy loss and the temperature rise. The torque transmitted is related to the actuating force, the coefficient of friction, and the geometry of the clutch or brake. This is problem in static, which will have to be studied separately for eath geometric configuration. However, temperature rise is related to energy loss and can be studied without regard to the type of nts 5 brake or clutch because the geometry of interest is the heat-dissipating surfaces. The various types of clutches and brakes may be classified as fllows: 1. Rim type with internally expanding shoes 2. Rim type with externally contracting shoes 3. Band type 4. Disk or axial type 5. Cone type 6. Miscellaneous type The analysis of all type of friction clutches and brakes use the same general procedure. The following step are necessary: 1. Assume or determine the distribution of pressure on the frictional surfaces. 2. Find a relation between the maximum pressure and the pressure at any point 3. Apply the condition of statical equilibrium to find (a) the actuating force, (b) the torque, and (c) the support reactions. Miscellaneous clutches include several types, such as the positive-contact clutches, overload-release clutches, overrunning clutches, magnetic fluid clutches, and others. A positive-contact clutch consists of a shift lever and two jaws. The greatest differences between the various types of positive clutches are concerned with the design of the jaws. To provide a longer period of time for shift action during engagement, the jaws may be ratchet-shaped, or gear-tooth-shaped. Sometimes a great many teeth or jaws are used, and they may be cut either circumferentially, so that they engage by cylindrical mating, or on the faces of the mating elements. Although positive clutches are not used to the extent of the frictional-contact type, they do have important applications where synchronous operation is required. Devices such as linear drives or motor-operated screw drivers must run to definite limit and then come to a stop. An overload-release type of clutch is required for these applications. These clutches are usually spring-loaded so as to release at a predetermined toque. The clicking sound which is heard when the overload point is reached is considered to be a desirable signal. nts 6 An overrunning clutch or coupling permits the driven member of a machine to “freewheel” or “overrun” because the driver is stopped or because another source of power increase the speed of the driven. This type of clutch usually uses rollers or balls mounted between an outer sleeve and an inner member having flats machined around the periphery. Driving action is obtained by wedging the rollers between the sleeve and the flats. The clutch is therefore equivalent to a pawl and ratchet with an infinite number of teeth. Magnetic fluid clutch or brake is a relatively new development which has two parallel magnetic plates. Between these plates is a lubricated magnetic powder mixture. An electromagnetic coil is inserted somewhere in the magnetic circuit. By varying the excitation to this coil, the shearing strength of the magnetic fluid mixture may be accurately controlled. Thus any condition from a full slip to a frozen lockup may be obtained. nts 7 齿轮和轴的介绍司徒忠摘要 :在传统机械和现代机械中齿轮和轴的重要地位是不可动摇的。齿轮和轴主要安装在主轴箱来传递力的方向。通过加工制造它们可以分为许多的型号，分别用于许多的场合。所以我们对齿轮和轴的了解和认识必须是多层次多方位的。关键词：齿轮；轴在直齿圆柱齿轮的受力分析中，是假定各力作用在单一平面的。我们将研究作用力具有三维坐标的齿轮。因此，在斜齿轮的情况下，其齿向是不平行于回转轴线的。而在锥齿轮的情况中各回转轴线互相不平行。像我们要讨论的那样，尚有其他道理需要学习，掌握。斜齿轮用于传递平行轴之间的运动。倾斜角度每个齿轮都一样，但一个必须右旋斜齿，而另一个必须是左旋斜齿。齿的形状是一溅开线螺旋面。如果一张被剪成平行四边形（矩形）的纸张包围在齿轮圆柱体上，纸上印出齿的角刃边就变成斜线。如果我展开这张纸，在血角刃边上的每一个点就发生一渐开线曲线。直齿圆柱齿轮轮齿的初始接触处是跨过整个齿面而伸展开来的线。斜齿轮轮齿的初始接触是一点，当齿进入更多的啮合时，它就变成线。在直齿圆柱齿轮中，接触是平行于回转轴线的。在斜齿轮中，该先是跨过齿面的对角线。它是齿轮逐渐进行啮合并平稳的从一个齿到另一个齿传递运动，那样就使斜齿轮具有高速重载下平稳传递运动的能力。斜齿轮使轴的轴承承受径向和轴向力。当轴向推力变的大了或由于别的原因而产生某些影响时，那就可以使用人字齿轮。双斜齿轮（人字齿轮）是与反向的并排地装在同一轴上的两个斜齿轮等效。他们产生相反的轴向推力作用，这样就消除了轴向推力。当两个或更多个单向齿斜齿轮被在同一轴上时，齿轮的齿向应作选择，以便产生最小的轴向推力。交错轴斜齿轮或螺旋齿轮，他们是轴中心线既不相交也不平行。交错轴斜齿轮的齿彼此之间发生点接触，它随着齿轮的磨合而变成线接触。因此他们只能传递小的载荷和主要用于仪器设备中，而且肯定不能推荐在动力传动中使用。交错轴斜齿轮与斜齿轮之间在被安装后互相捏合之前是没有任何区别的。它们是以同样的方法进行制造。一对相nts 8 啮合的交错轴斜齿轮通常具有同样的齿向，即左旋主动齿轮跟右旋从动齿轮相啮合。在交错轴斜齿设计中，当该齿的斜角相等时所产生滑移速度最小。然而当该齿的斜角不相等时，如果两个齿轮具有相同齿向的话，大斜角齿轮应用作主动齿轮。蜗轮与交错轴斜齿轮相似。小齿轮即蜗杆具有较小的齿数，通常是一到四齿，由于它们完全缠绕在节圆柱上，因此它们被称为螺纹齿。与其相配的齿轮叫做蜗轮，蜗轮不是真正的斜齿轮。蜗杆和蜗轮通常是用于向垂直相交轴之间的传动提供大的角速度减速比。蜗轮不是斜齿轮，因为其齿顶面做成中凹形状以适配蜗杆曲率，目的是要形成线接触而不是点接触。然而蜗杆蜗轮传动机构中蜗杆蜗轮机构有单包围和双包围机构。单包围机构就是蜗轮包裹着蜗杆的一种机构。当然，如果每个构件各自局部地包围着对方的蜗轮机构就是双包围蜗轮蜗杆机构。着两者之间的重要区别是，在双包围蜗轮组的轮齿间有面接触，而在单包围的蜗轮组的轮齿间有线接触。一个装置中的蜗杆和蜗轮正像交错轴斜齿轮那样具有相同的齿向，但是其斜齿齿角的角度是极不相同的。蜗杆上的齿斜角度通常很大，而蜗轮上的则极小，因此习惯常规定蜗杆的导角，那就是蜗杆齿斜角的余角；也规定了蜗轮上的齿斜角，该两角之和就等于 90 度的轴线交角。当齿轮要用来传递相交轴之间的运动时，就需要某种形式的锥齿轮。虽然锥齿轮通常制造成能构成 90 度轴交角，但它们也可产生任何角度的轴交角。轮齿可以铸出，铣制或滚切加工。仅就滚齿而言就可达一级精度。在典型的锥齿轮安装中，其中一个锥齿轮常常装于支承的外侧。这意味着轴的挠曲情况更加明显而使在轮齿接触上具有更大的影响。另外一个难题，发生在难于预示锥齿轮轮齿上的应力，实际上是由于齿轮被加工成锥状造成的。直齿锥齿轮易于设计且制造简单，如果他们安装的精密而确定，在运转中会产生良好效果。然而在直齿圆柱齿轮情况下，在节线速度较高时，他们将发出噪音。在这些情况下，螺旋锥齿轮比直齿轮能产生平稳的多的啮合作用，因此碰到高速运转的场合那是很有用的。当在汽车的各种不同用途中，有一个带偏心轴的类似锥齿轮的机构，那是常常所希望的。这样的齿轮机构叫做准双曲面齿轮机构，因为它们的节面是双曲回转面。这种齿轮之间的轮齿作用是沿着一根直线上产生滚动与滑动相结合的运动并和蜗轮蜗杆的轮齿作用有着更多的共同之处。 nts 9 轴是一种转动或静止的杆件。通常有圆形横截面。在轴上安装像齿轮，皮带轮，飞轮，曲柄，链轮和其他动力传递零件。轴能够承受弯曲，拉伸，压缩或扭转载荷，这些力相结合时，人们期望找到静强度和疲劳强度作为设
