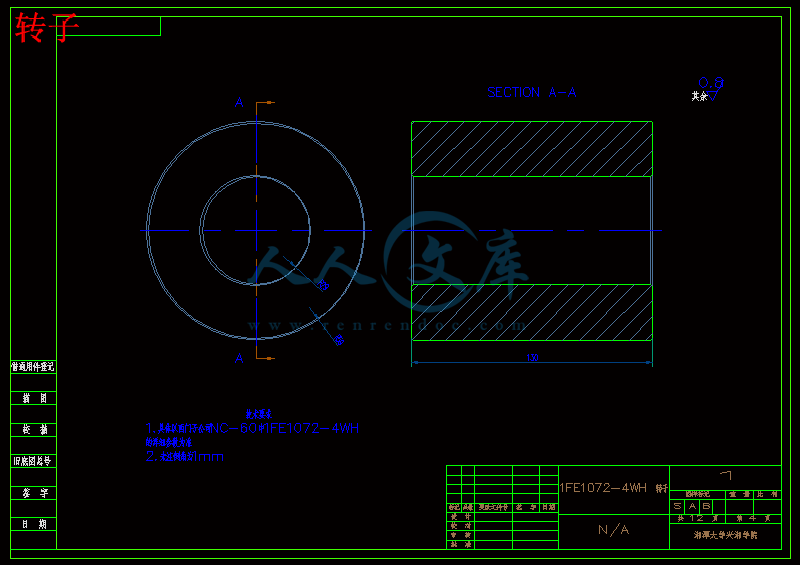

转子.dwg

压缩包内文档预览：(预览前20页/共30页)

编号：472384 类型：共享资源大小：11.19MB 格式：RAR 上传时间：2015-08-14 上传人：好资料QQ****51605 IP属地：江苏

50
积分

版权申诉 word格式文档无特别注明外均可编辑修改；预览文档经过压缩，下载后原文更清晰！ 立即下载

关键词：: 机床高速主轴结构设计三维 ug 全套 cad 图纸毕业论文答辩优秀优良

资源描述：

【温馨提示】购买原稿文件请充值后自助下载。

以下预览截图到的都有源文件,图纸是CAD，文档是WORD，下载后即可获得。

预览截图请勿抄袭，原稿文件完整清晰，无水印，可编辑。

有疑问可以咨询QQ：414951605或1304139763

1 绪论

1.1 高速切削技术 1

1.2 电主轴技术 2

1.3 小结 3

2 高速电主轴关键技术

2.1 主要技术指标 4

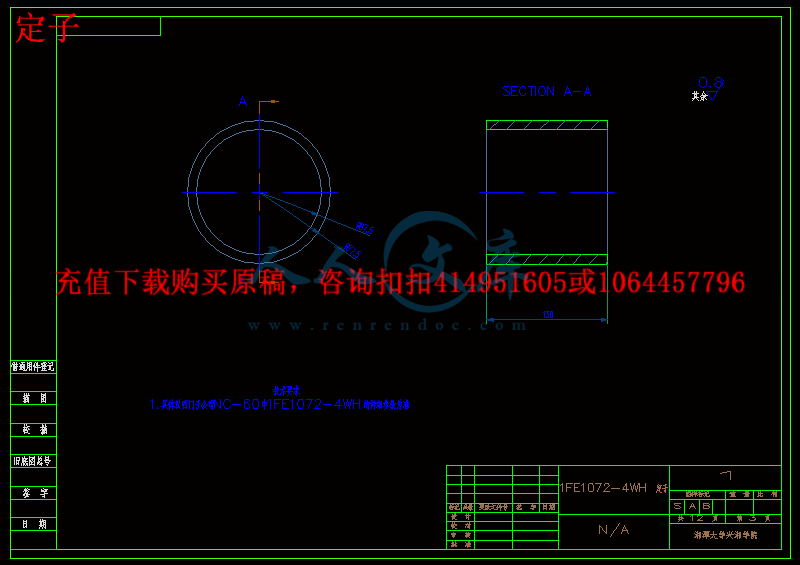

2.2 电主轴的整体布局设计 4

2.3 轴承及其润滑技术 4

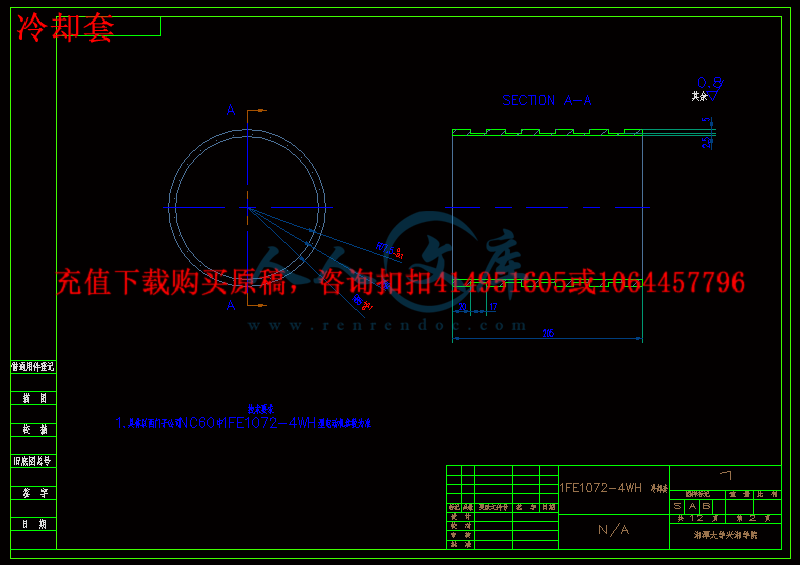

2.4 冷却系统的设计 7

3 高速电主轴的电机设计

3.1 电机选型 8

3.2 过盈连接及其动平衡计算 9

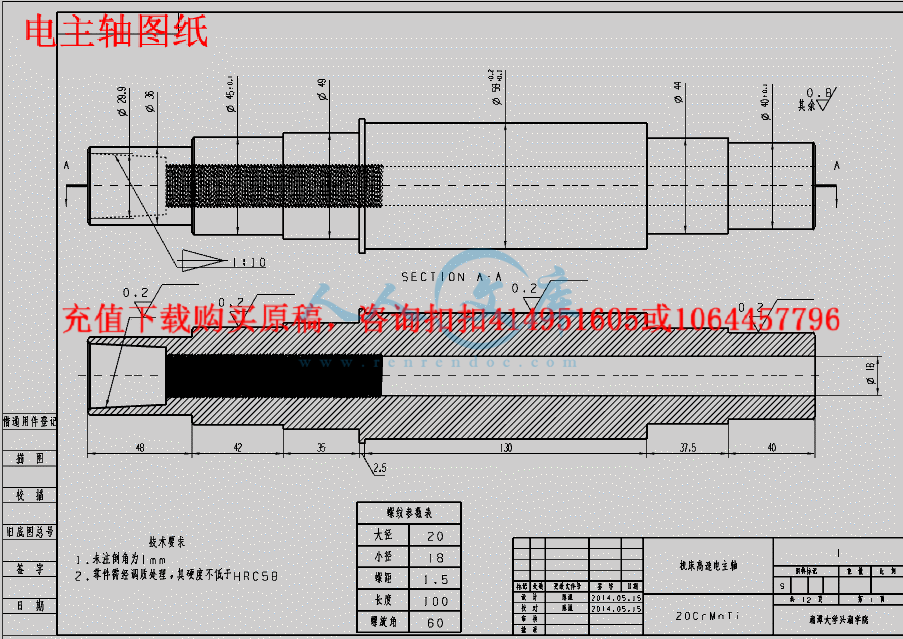

4 高速电主轴的结构设计

4.1 外圆平均直径 10

4.2 内孔直径 10

4.3 悬伸量 11

4.4 支承跨距 11

4.5 校核和检验 12

5 总结 13

参考文献 14

附录1 1FE1系列电机结构示意表15

附录2 1FE1系列电机性能参数表16

附录3 BER10系列陶瓷球滚子轴承参数表17

附录4 10系列陶瓷圆柱棍子轴承参数表18

外语文献翻译19

内容摘要

当前的制造业的机床正一步步的向着高速、高功率、高效率等方向发展，一个国家的制造业实力往往就体现在这一些方面。高速机床电主轴是高速机床的核心部件，有着非常广阔的应用前景。发展和应用高速机床电主轴技术，能极大的提高工厂的生产力、加工精度和加工质量等等一系列加工时的指标。本毕业设计旨在根据实际需求，设计一个满足要求、且不乏经济性的高速机床电主轴的结构。首先对高速机床电主轴的关键技术进行分析，其次对轴承、散热、动平衡等关键部分进行初步设计，然后对电主轴进行结构设计，最后验证设计，确保本毕业设计能够满足要求。本研究设计的工作主要在以下几个方面：

1、分析高速机床电主轴主要存在的问题以及有关高速机床电主轴的关键技术，对电主轴的轴承及其润滑技术、冷却和散热、动平衡等方面进行研究，结合实际需求，对这些关键部位进行初步设计；

2、对电主轴进行整体设计，包括轴承的选型及其刚度计算、电机的选型以及主轴的各项参数的计算，并验算结果。

关键词：高速电主轴；电主轴关键技术；结构设计

Abstract

Nowadays,manufacturing industry’s development is in the direction toward high-speed, high-power and high-efficiency, It can deeply reflect the level of a country’s manufacturing capacity in most cases. High-speed motorized spindle is the core component in high-speed machine tool, and it has a wide application prospect.Develop and apply higi-speed motorized spindle technology can highly improve one factory’s machining index like productivity, machining accuracy and machining quality etc. This graduation project is aimed at design a structure of a high-speed motorized spindle that satisfy the actual demand. I will analyze the key technologies of high-speed motorized spindle and design the key component such as bearings,cooling system and dynamic balance etc primarily at first, then design the structure of the motorized spindle, and I will check out my design to ensure it can meet the demand. The main task of this graduation design will contain these aspects below:

1.Analyze the main problem and key technologies of high-speed motorized spindle, research the spindle’s bearings, lubrications, cooling and dynamic balance etc. Combine with the reality demand, design those component primarily;

2.Design the motorized spindle entirely, this mainly includes the bearings’s chosen and its calculation of rigidity, the selection of electric motor and the calculation of main parameters of the spindle, and check my design at last.

Keywords:High-speed motorized spindle;Key technologies of motorized spindle;structure design

1绪论

1.1 高速切削技术

1.1.1 高速切削技术的理论基础

早在20世纪50年代，就已经出现了用于磨削小孔的高频电主轴，当时的变频器采用的是真空电子管，虽然转速高，但传递的功率小、转矩也小。随着高速切削的发展的需要和功率电子器件、微电子器件和计算机技术的发展，产生了全固态元件的变频器和矢量控制驱动器，加上混合陶瓷轴承的出现，使得在20世纪末期出现了一大批用于高速切削的大功率、大转矩、高转速的高速机床电主轴。

作为国民经济支柱产业的制造业，是衡量一个国家科学技术发展水平的重要标志，高速切削技术是加工制造技术的一次革命性突破，是未来窃谑加工技术的重点发展方向。高速切削技术是指利用超硬材料的加工刀具和高转速、高精度和高自动化的制造装备，以实现切除效率、加工质量和加工精度大幅度提升的先进制造技术。













内容简介：: 外语文献翻译摘自 : 制造工程与技术（机加工）（英文版） Manufacturing Engineering and Technology Machining 机械工业出版社 2004 年 3 月第 1 版页 564560P 美 s. 卡尔帕基安 (Serope kalpakjian) s.r 施密德 (Steven R.Schmid) 著原文： 20.9 MACHINABILITY The machinability of a material usually defined in terms of four factors: 1、 Surface finish and integrity of the machined part; 2、 Tool life obtained; 3、 Force and power requirements; 4、 Chip control. Thus, good machinability good surface finish and integrity, long tool life, and low force And power requirements. As for chip control, long and thin (stringy) cured chips, if not broken up, can severely interfere with the cutting operation by becoming entangled in the cutting zone. Because of the complex nature of cutting operations, it is difficult to establish relationships that quantitatively define the machinability of a material. In manufacturing plants, tool life and surface roughness are generally considered to be the most important factors in machinability. Although not used much any more, approximate machinability ratings are available in the example below. 20.9.1 Machinability Of Steels Because steels are among the most important engineering materials (as noted in Chapter 5), their machinability has been studied extensively. The machinability of steels has been mainly improved by adding lead and sulfur to obtain so-called free-machining steels. Resulfurized and Rephosphorized steels. Sulfur in steels forms manganese sulfide inclusions (second-phase particles), which act as stress raisers in the primary ntsshear zone. As a result, the chips produced break up easily and are small; this improves machinability. The size, shape, distribution, and concentration of these inclusions significantly influence machinability. Elements such as tellurium and selenium, which are both chemically similar to sulfur, act as inclusion modifiers in resulfurized steels. Phosphorus in steels has two major effects. It strengthens the ferrite, causing increased hardness. Harder steels result in better chip formation and surface finish. Note that soft steels can be difficult to machine, with built-up edge formation and poor surface finish. The second effect is that increased hardness causes the formation of short chips instead of continuous stringy ones, thereby improving machinability. Leaded Steels. A high percentage of lead in steels solidifies at the tip of manganese sulfide inclusions. In non-resulfurized grades of steel, lead takes the form of dispersed fine particles. Lead is insoluble in iron, copper, and aluminum and their alloys. Because of its low shear strength, therefore, lead acts as a solid lubricant (Section 32.11) and is smeared over the tool-chip interface during cutting. This behavior has been verified by the presence of high concentrations of lead on the tool-side face of chips when machining leaded steels. When the temperature is sufficiently high-for instance, at high cutting speeds and feeds (Section 20.6)the lead melts directly in front of the tool, acting as a liquid lubricant. In addition to this effect, lead lowers the shear stress in the primary shear zone, reducing cutting forces and power consumption. Lead can be used in every grade of steel, such as 10xx, 11xx, 12xx, 41xx, etc. Leaded steels are identified by the letter L between the second and third numerals (for example, 10L45). (Note that in stainless steels, similar use of the letter L means “low carbon,” a condition that improves their corrosion resistance.) However, because lead is a well-known toxin and a pollutant, there are serious environmental concerns about its use in steels (estimated at 4500 tons of lead consumption every year in the production of steels). Consequently, there is a continuing trend toward eliminating the use of lead in steels (lead-free steels). Bismuth and tin are now being investigated as possible substitutes for lead in steels. Calcium-Deoxidized Steels. An important development is calcium-deoxidized steels, in which oxide flakes of calcium silicates (CaSo) are formed. These flakes, in turn, reduce the strength of the secondary shear zone, decreasing tool-chip interface ntsand wear. Temperature is correspondingly reduced. Consequently, these steels produce less crater wear, especially at high cutting speeds. Stainless Steels. Austenitic (300 series) steels are generally difficult to machine. Chatter can be s problem, necessitating machine tools with high stiffness. However, ferritic stainless steels (also 300 series) have good machinability. Martensitic (400 series) steels are abrasive, tend to form a built-up edge, and require tool materials with high hot hardness and crater-wear resistance. Precipitation-hardening stainless steels are strong and abrasive, requiring hard and abrasion-resistant tool materials. The Effects of Other Elements in Steels on Machinability. The presence of aluminum and silicon in steels is always harmful because these elements combine with oxygen to form aluminum oxide and silicates, which are hard and abrasive. These compounds increase tool wear and reduce machinability. It is essential to produce and use clean steels. Carbon and manganese have various effects on the machinability of steels, depending on their composition. Plain low-carbon steels (less than 0.15% C) can produce poor surface finish by forming a built-up edge. Cast steels are more abrasive, although their machinability is similar to that of wrought steels. Tool and die steels are very difficult to machine and usually require annealing prior to machining. Machinability of most steels is improved by cold working, which hardens the material and reduces the tendency for built-up edge formation. Other alloying elements, such as nickel, chromium, molybdenum, and vanadium, which improve the properties of steels, generally reduce machinability. The effect of boron is negligible. Gaseous elements such as hydrogen and nitrogen can have particularly detrimental effects on the properties of steel. Oxygen has been shown to have a strong effect on the aspect ratio of the manganese sulfide inclusions; the higher the oxygen content, the lower the aspect ratio and the higher the machinability. In selecting various elements to improve machinability, we should consider the possible detrimental effects of these elements on the properties and strength of the machined part in service. At elevated temperatures, for example, lead causes embrittlement of steels (liquid-metal embrittlement, hot shortness; see Section 1.4.3), although at room temperature it has no effect on mechanical properties. Sulfur can severely reduce the hot workability of steels, because of the formation of iron sulfide, unless sufficient manganese is present to prevent such formation. At ntsroom temperature, the mechanical properties of resulfurized steels depend on the orientation of the deformed manganese sulfide inclusions (anisotropy). Rephosphorized steels are significantly less ductile, and are produced solely to improve machinability. 20.9.2 Machinability of Various Other Metals Aluminum is generally very easy to machine, although the softer grades tend to form a built-up edge, resulting in poor surface finish. High cutting speeds, high rake angles, and high relief angles are recommended. Wrought aluminum alloys with high silicon content and cast aluminum alloys may be abrasive; they require harder tool materials. Dimensional tolerance control may be a problem in machining aluminum, since it has a high thermal coefficient of expansion and a relatively low elastic modulus. Beryllium is similar to cast irons. Because it is more abrasive and toxic, though, it requires machining in a controlled environment. Cast gray irons are generally machinable but are. Free carbides in castings reduce their machinability and cause tool chipping or fracture, necessitating tools with high toughness. Nodular and malleable irons are machinable with hard tool materials. Cobalt-based alloys are abrasive and highly work-hardening. They require sharp, abrasion-resistant tool materials and low feeds and speeds. Wrought copper can be difficult to machine because of built-up edge formation, although cast copper alloys are easy to machine. Brasses are easy to machine, especially with the addition pf lead (leaded free-machining brass). Bronzes are more difficult to machine than brass. Magnesium is very easy to machine, with good surface finish and prolonged tool life. However care should be exercised because of its high rate of oxidation and the danger of fire (the element is pyrophoric). Molybdenum is ductile and work-hardening, so it can produce poor surface finish. Sharp tools are necessary. Nickel-based alloys are work-hardening, abrasive, and strong at high temperatures. Their machinability is similar to that of stainless steels. Tantalum is very work-hardening, ductile, and soft. It produces a poor surface ntsfinish; tool wear is high. Titanium and its alloys have poor thermal conductivity (indeed, the lowest of all metals), causing significant temperature rise and built-up edge; they can be difficult to machine. Tungsten is brittle, strong, and very abrasive, so its machinability is low, although it greatly improves at elevated temperatures. Zirconium has good machinability. It requires a coolant-type cutting fluid, however, because of the explosion and fire. 20.9.3 Machinability of Various Materials Graphite is abrasive; it requires hard, abrasion-resistant, sharp tools. Thermoplastics generally have low thermal conductivity, low elastic modulus, and low softening temperature. Consequently, machining them requires tools with positive rake angles (to reduce cutting forces), large relief angles, small depths of cut and feed, relatively high speeds, and proper support of the workpiece. Tools should be sharp. External cooling of the cutting zone may be necessary to keep the chips from becoming “gummy” and sticking to the tools. Cooling can usually be achieved with a jet of air, vapor mist, or water-soluble oils. Residual stresses may develop during machining. To relieve these stresses, machined parts can be annealed for a period of time at temperatures ranging from C80 to C160 ( F175 to F315 ), and then cooled slowly and uniformly to room temperature. Thermosetting plastics are brittle and sensitive to thermal gradients during cutting. Their machinability is generally similar to that of thermoplastics. Because of the fibers present, reinforced plastics are very abrasive and are difficult to machine. Fiber tearing, pulling, and edge delamination are significant problems; they can lead to severe reduction in the load-carrying capacity of the component. Furthermore, machining of these materials requires careful removal of machining debris to avoid contact with and inhaling of the fibers. The machinability of ceramics has improved steadily with the development of nanoceramics (Section 8.2.5) and with the selection of appropriate processing parameters, such as ductile-regime cutting (Section 22.4.2). ntsMetal-matrix and ceramic-matrix composites can be difficult to machine, depending on the properties of the individual components, i.e., reinforcing or whiskers, as well as the matrix material. 20.9.4 Thermally Assisted Machining Metals and alloys that are difficult to machine at room temperature can be machined more easily at elevated temperatures. In thermally assisted machining (hot machining), the source of heata torch, induction coil, high-energy beam (such as laser or electron beam), or plasma arcis forces, (b) increased tool life, (c) use of inexpensive cutting-tool materials, (d) higher material-removal rates, and (e) reduced tendency for vibration and chatter. It may be difficult to heat and maintain a uniform temperature distribution within the workpiece. Also, the original microstructure of the workpiece may be adversely affected by elevated temperatures. Most applications of hot machining are in the turning of high-strength metals and alloys, although experiments are in progress to machine ceramics such as silicon nitride. SUMMARY Machinability is usually defined in terms of surface finish, tool life, force and power requirements, and chip control. Machinability of materials depends not only on their intrinsic properties and microstructure, but also on proper selection and control of process variables. 译文： 20.9 可机加工性一种材料的可机加工性通常以四种因素的方式定义： 1、分的表面光洁性和表面完整性。 2、刀具的寿命。 3、切削力和功率的需求。 4、切屑控制。以这种方式，好的可机加工性指的是好的表面光洁性和完整性，长的刀具寿命，低的切削力和功率需求。关于切屑控制，细长的卷曲切屑，如果没有被切割成小片，以在切屑区变的混乱，缠在一起的方式能够严重的介入剪切工序。因为剪切工序的复杂属性，所以很难建立定量地释义材料的可机加工性的关系。在制造厂里，刀具寿命和表面粗糙度通常被认为是可机加工性中最重要的因素。尽管已不再大量的被使用，近乎准确的机加工率在以下的例子中能够被看到。 nts20.9.1 钢的可机加工性因为钢是最重要的工程材料之一（正如第 5 章所示），所以他们的可机加工性已经被广泛地研究过。通过宗教铅和硫磺，钢的可机加工性已经大大地提高了。从而得到了所谓的易切削钢。二次硫化钢和二次磷化钢硫在钢中形成硫化锰夹杂物（第二相粒子），这些夹杂物在第一剪切区引起应力。其结果是使切屑容易断开而变小，从而改善了可加工性。这些夹杂物的大小、形状、分布和集中程度显著的影响可加工性。化学元素如碲和硒，其化学性质与硫类似，在二次硫化钢中起夹杂物改性作用。钢中的磷有两个主要的影响。它加强铁素体，增加硬度。越硬的钢，形成更好的切屑形成和表面光洁性。需要注意的是软钢不适合用于有积屑瘤形成和很差的表面光洁性的机器。第二个影响是增加的硬度引起短切屑而不是不断的细长的切屑的形成，因此提高可加工性。含铅的钢钢中高含量的铅在硫化锰夹杂物尖端析出。在非二次硫化钢中，铅呈细小而分散的颗粒。铅在铁、铜、铝和它们的合金中是不能溶解的。因为它的低抗剪强度。因此，铅充当固体润滑剂并且在切削时，被涂在刀具和切屑的接口处。这一特性已经被在机加工铅钢时，在切屑的刀具面表面有高浓度的铅的存在所证实。当温度足够高时例如，在高的切削速度和进刀速度下铅在刀具前直接熔化，并且充当液体润滑剂。除了这个作用，铅降低第一剪切区中的剪应力，减小切削力和功率消耗。铅能用于各种钢号，例如 10XX， 11XX， 12XX， 41XX 等等。铅钢被第二和第三数码中的字母 L 所识别（例如， 10L45）。（需要注意的是在不锈钢中，字母 L 的相同用法指的是低碳，提高它们的耐蚀性的条件）。然而，因为铅是有名的毒素和污染物，因此在钢的使用中存在着严重的环境隐患（在钢产品中每年大约有 4500 吨的铅消耗）。结果，对于估算钢中含铅量的使用存在一个持续的趋势。铋和锡现正作为钢中的铅最可能的替代物而被人们所研究。脱氧钙钢一个重要的发展是脱氧钙钢，在脱氧钙钢中矽酸钙盐中的氧化物片的形成。这些片状，依次减小第二剪切区中的力量，降低刀具和切屑接口处的摩擦和磨损。温度也相应地降低。结果，这些钢产生更小的月牙洼磨损，特别是在高切削速度时更是如此。不锈钢奥氏体钢通常很难机加工。振动能成为一个问题，需要有高硬度的机床。然而，铁素体不锈钢有很好的可机加工性。马氏体钢易磨蚀，易于形成积屑瘤，并且要求刀具材料有高的热硬度和耐月牙洼磨损性。经沉淀硬化的不锈钢强度高、磨蚀性强，因此要求刀具材料硬而耐磨。 nts钢中其它元素在可机加工性方面的影响钢中铝和矽的存在总是有害的，因为这些元素结合氧会生成氧化铝和矽酸盐，而氧化铝和矽酸盐硬且具有磨蚀性。这些化合物增加刀具磨损，降低可机加工性。因此生产和使用净化钢非常必要。根据它们的构成，碳和锰钢在钢的可机加工性方面有不同的影响。低碳素钢（少于 0.15%的碳）通过形成一个积屑瘤能生成很差的表面光洁性。尽管铸钢的可机加工性和锻钢的大致相同，但铸钢具有更大的磨蚀性。刀具和模具钢很难用于机加工，他们通常再煅烧后再机加工。大多数钢的可机加工性在冷加工后都有所提高，冷加工能使材料变硬并且减少积屑瘤的形成。其它合金元素，例如镍、铬、钳和钒，能提高钢的特性，减小可机加工性。硼的影响可以忽视。气态元素比如氢和氮在钢的特性方面能有特别的有害影响。氧已经被证明了在硫化锰夹杂物的纵横比方面有很强的影响。越高的含氧量，就产生越低的纵横比和越高的可机加工性。选择各种元素以改善可加工性，我们应该考虑到这些元素对已加工零件在使用中的性能和强度的不利影响。例如，当温度升高时，铝会使钢变脆（液体金属脆化，热脆化，见 1.4.3 节），尽管其在室温下对力学性能没有影响。因为硫化铁的构成，硫能严重的减少钢的热加工性，除非有足够的锰来防止这种结构的形成。在室温下，二次磷化钢的机械性能依赖于变形的硫化锰夹杂物的定位（各向异性）。二次磷化钢具有更小的延展性，被单独生成来提高机加工性。 20.9.2 其它不同金属的机加工性尽管越软的品种易于生成积屑瘤，但铝通常很容易被机加工，导致了很差的表面光洁性。高的切削速度，
