重型自卸汽车设计（离合器设计）

重型自卸汽车离合器设计【优秀汽车离合器全套课程毕业设计含3张CAD图纸】

【带开题报告+外文翻译】【45页@正文15400字】【详情如下】【需要咨询购买全套设计请加QQ1459919609】

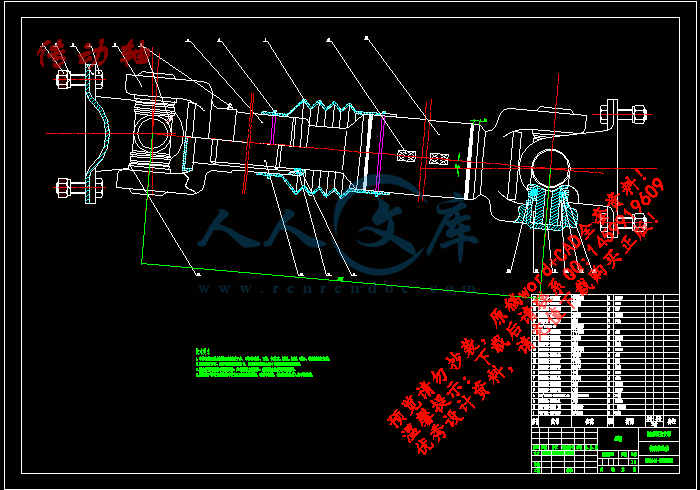

传动轴.dwg

开题报告.doc

摘要  目录.doc

汽车离合器CAD系统的研究与设计--中英文翻译.doc

离合器总成.dwg

离合器踏板.dwg

重型自卸汽车离合器设计.doc

重型自卸汽车设计（离合器设计）

离合器装在发动机与变速器之间，汽车从启动到行驶的整个过程中，经常需要使用离合器。它的作用是使发动机与变速器之间逐渐接合，从而保证汽车平稳起步；暂时切断发动机与变速器之间的联系，以便于换档和减少换挡时的冲击；当汽车紧急制动时能起分离作用，防止变速器等传动系统过载，起到一定的保护作用。离合器类似开关，接合或断离动力传递作用，因此，任何形式的汽车都有离合装置，只是形式不同而已。其结构是否合理，性能是否与整车匹配，直接关系到汽车的操纵性、动力性及经济性。本说明书主要研究离合器与整车的匹配性设计，具体内容做了以下几个方面：

（1）根据设计的要求完成了汽车的总体设计，并且对汽车的结构型式和主要参数进行了选择。

（2）对离合器的结构方案进行了分析对比，选择离合器形式。

（3）根据前面的汽车总体设计，对离合器基本尺寸、参数进行了选择。

（4）对离合器零部件进行选型、匹配性设计和校核计算。

（5）对离合器操纵系统的设计。通过对机械式操纵系统和液压式操纵系统特点的分析，并选取了液压式操纵系统，对其进行了设计和尺寸计算。

关键词：离合器，螺旋弹簧，匹配

dump truck Clutch Design

The coupling installs between the engine and  the transmission gearbox,  the automobile from the start to the travel entire process, needs to use the  coupling frequently. Its function is causes between the engine and the  transmission gearbox can join gradually, thus guaranteed that  the automobile  starts steadily; shuts off between the engine and transmission gearbox's relation  temporarily, is advantageous shifts gears and reduces shifts gears the time  impact; When automobile emergency brake can play the separation role,  prevents transmission systems and so on transmission gearbox to overload,  plays certain protective function. Therefore, any form's automobile has the  engaging and disengaging gear, is only the from is different. The structure of  the clutch is reasonable or not, whether the performance matching to the total  vehicle, is directly related to the automotive ease of use, vehicle dynamics and  the economics and the economy. This paper studies the clutch and matching to  the vehicle design.

Specific content of the following aspects of the paper on the following  main areas of research:

 According to the design requirements of the automobile to complete the  total design, and chose the structure type and the structure type and the main  parameters of the vehicle.

 Compared to the structure of the Clutch, and chose the construction  form of the clutch.

 Under the previous car design, made a choice to the basic clutch size  parameters.

 Made right clutch parts for the clutch parte selection, design and  calculation of matching.

 A clutch control system design. Through to the mechanical type control  system and the hydraulic pressure type control system characteristic's, and has  selected the hydraulic pressure type control system, has carried on the design  and the size computation t it

Key words:  Clutch, Spiral Spring ,Matching

目  录

第一章 前言.............................................1

第二章 离合器主要参数的选择.............................3

 §2.1  离合器的静摩擦力矩.............................3

 §2.2  离合器的静摩擦力矩与发动机最大转矩的基本性能关.4

 §2.3  离合器基本结构尺寸和参数的选择 ................4

 §2.3.1 离合器后备系数的确定........................ 5

 §2.3.2 摩擦系数的确定..............。.............. .6

 §2.3.3 摩擦片半径的确定............................6

 §2.3.4单位压力的确定........................... ...  8

第三章 离合器的结构设计与计算..........................11

 §3.1  从动盘总成....................................11

 §3.2  从动盘总成设计................................12

 §3.2.1 从动盘钢片................................12

 §3.2.2 从动盘毂...................................15

 §3.2.3 从动盘摩擦片...............................19

 §3.3  压盘和离合器盖................................20

 §3.3.1  压盘设计....................................20

 §3.3.2  压盘传力机构的设计..........................22

 §3.4  离合器盖的设计................................23

 §3.5  圆柱螺旋弹簧的设计............................26

 §3.6  扭转减振器的设计..............................27

第四章 操纵机构的设计计算.............................30

 §4.1  离合器操纵机构的基本要求与常用结构类型........30

 §4.1.1  对离合器操纵机构的基本要求...................30

 §4.1.2  常用离合器操纵机构的类型......................30

 §4.2  离合器操纵机构主要的参数的确定与设计..........34

第五章 传动轴的设计与计算.............................36

第六章 结论.....................................39

参考文献...............................................40

致谢...................................................41

第一章 前  言

汽车诞生之前马车是人类最好的陆上交通工具。1770年法国人尼古拉斯古诺（1725－1804）将蒸汽机装在板车上，制造出第一辆蒸汽板车，这是世界上第一辆利用机器为动力的车辆。1769年，瑞士军官普兰捷尔也造出一辆以蒸汽机为动力的额自由行驶的板车，于是有人将普兰捷尔也认定为汽车的始祖之一。1860年，法国人艾蒂勒努瓦发明了一种内部燃烧的汽油发动机。1885年德国工程师卡尔奔驰（1844－1929）在曼海姆制成一部装有0.85马力汽油机的三轮车。德国另一位工程师戈特利布戴姆勒（1834－1900）也同时造出了一辆用1.1马力汽油机作动力的三轮车。他们俩被公认为以内燃机为动力的现代汽车的发明者，1886年1月29日也被公认为汽车的诞生日。

汽车从无到有并迅猛发展。从20世纪初至20世纪50年代，汽车产量大幅增加，汽车技术也有很大进步，相继出现了高速汽油机、柴油机；弧齿锥齿轮和准双面锥齿轮传动、带同步器的齿轮变速器；化油器；差速器；摩擦片式离合器；等速万向节；荻第安后桥半独立悬架；液压减振器；艾克曼式转向结构；石棉制动片；充气式橡胶轮胎等。

20世纪50年代至70年代，汽车的主要技术是高速、方便、舒适。流线型车身、前轮独立悬架、液力自动变速器、动力转向、全轮驱动、低压轮胎、子午线轮胎都相继出现。

参考文献

1．汽车离合器设计 徐石安 江发潮 编著 清华大学出版社 2005

2．联轴器、离合器设计与选用指南 阮忠唐 编著 化学工业出版社 2006

3．离合器及机械变速器 张  毅 编著 化学工业出版社 2005

4．离合器、制动器选用手册 周明衡 编著 化学工业出版社 2003

5．离合器结构图册 段广汉 编著 国防工业出版社 1985

6朱冬梅，胥兆澜主编 画法几何及机械制图第5版 高等教育出版社 2000年12月

7 刘鸿文主编 简明材料力学 高等教育出版社 1997年7月

8 孙恒，陈作模主编 机械原理第六版 高等教育出版社 2004年3月

9 濮良贵，纪名刚主编  机械设计第7版 高等教育出版社 2001年6月

10 徐谨主编 机械设计手册 机械工业出版社 2000年6月

11 吴宗泽主编 机械设计使用手册 化学工业出版社 2001年5月

12蔡春源主编 机械零件设计手册第3版 冶金工业出版社 1995年10月

13王予望主编 汽车设计第4版 机械工业出版社 2004年8月

14 陈家瑞主编 汽车构造第2版 机械工业出版社 2005年1月

15张则曹主编 汽车构造图册 人民交通出版社 1998年2月

16 林清福主编 国外汽车构造最新构造图册 机械工业出版社 1996年5月


内容简介：
河南科技大学毕业设计（论文）开题报告 （学生填表） 院系： 车辆与动力工程学院 2013 年 4 月 15 日 课题名称 重型自卸汽车设计（离合器设计） 学生姓名 耿忠忠 专业班级 车辆 093 课题类型 工程设计 指导教师 曹艳玲 薛运起 职 称 副 教授 高工 课题来源 结合生产 1. 设计（或研究）的依据与意义 选题依据：随着科技的飞速发展，特别是液压技术、电子技术在汽车领域的广泛应用，汽车传东西发生了巨大的变化。作为传动系重要组成部 件之一的离合器总成，担负着传力、减震和防止系统过载等重要作用。伴随着自动变速器技术及与之相匹配的离合器技术的完善，离合器产品不论是性能结构方面还是生产制造方面都发生了很大变化。 研究意义：随着汽车运输业的发展，离合器还在原有的基础上不断提高改进，以适应新的私用条件。随着汽车发动机转速功率的不断提高和汽车电子技术的告诉发展，让你们对离合器的要求越来越高，离合器的使用条件也越来越苛刻。从提高离合器性能的角度出发，传统的操纵形式正在向自动曹总形式发展。因此，提高离合器的可靠性和延长其使用寿命，适应发动 机的高转速，增加离合器传递转矩的能力和简化操作，已成为离合器目前发展趋势。 nts2. 国内外同类设计（或同类研究）的概况综述 国内：我国汽车离合器企业与国外企业相比处于明显劣势。在劳动力成本、售价、守候服务、客户关系和供应商关系等方面，我国企业处于明显优势；在市场营销能力、采购成本和交货期方面，我企业与国外竞争者基本持平；在品牌价值、产品技术含量、产品质量、规模效应、生产效率、技术水品、研发能力和员工素质方面，我国企业和国际同类先进企业相比差距较大。在产品技术方面、国内汽车离合器企业经过不断地产品结构调整 ，国产 膜片 弹簧 离合器 的品种 已经能全面覆盖国内重、中、轻、轿、微及农用等车型的需求，跟踪国内外动力传动系统技术，研发洗衣袋产品也取得了可喜成果，如双质量飞轮、液力变矩器、适用于 300 马力以上动力配备的由 430 拉式膜片弹簧离合器都获得了成功。 国外：从国外的发展动向看，今年来汽车的性能在向高速发展，发动机的功率和转速不断提高，载重汽车趋向大型化，国内也有类似的情况。 nts3. 课题设计（或研究）的内容 （ 这一部分只要 将 任务书电子文档 的“主要研究内容”那一栏 复制过来即可） （ 1）设计内容： 参考 同类重型 货车，完成所要求条件的 重型汽车离合器 总成设计。绘制 离合器 的总装配图、部件图和部分零件图；装配图及主要零部件工作图不少于 3 张零号图纸 ，其中应包含一张以上用计算机绘制的具有中等难度的 1 号图纸，同时至少折合 1 号图幅以上的图纸用手工绘制。 （ 2）计算内容：进行 离合器 设计的方案分析论证，并完成 离合器 的设计计算（应有必要的数据和图标）。 （ 3）设计说明书：不少于 12000 字，阅读参考文献不少于 15 篇；撰写中英文摘要，中文摘要 400-500 字，英文摘要 300-450 个实词，关键词一般 4-6 个，设计说明书全部用计算机打印。 （ 4）外文翻译：完成不少于 10000 印刷字符的外文翻译（并附原文）。 4. 设计（或研究）方法 （ 1）调研，搜集、分析资料，确立并论证方案； （ 2）类比法，参照同类车型，初选 后桥 设计基本参数； （ 3）实物参观，测量； （ 4） 进行 后桥设计 的方案分析论证，并完成 后桥的主减速器、差速器、半轴等 设计计算 ； （ 5）计算，校核设计零件，使设计满足使用要求； （ 6）计算机主要零部件图纸设计。 5. 实施计划 5 周： 调研、收集、分析资料； 6 周： 全组集体讨论，制定、确定总体方案； 79 周： 完成主要总图设计； 1012 周：完成零件图、部件图、设计说明书等； 13 周： 整理图纸及全部设计资料，上交所有设计资料； 14 周： 审核、互审评阅设计； 15 周： 答辩，评定成绩。 指导教师意见 指导教师签字： 年 月 日 研究所（教研室）意见 教研室主任签字： 年 月 日 nts I 重型 自卸汽车 设计（ 离合器设计 ） 离合器装在发动机与变速器之间，汽车从启动到行驶的整个过程中，经常需要使用离合器。它的作用是使发动机与变速器之间逐渐接合，从而保证汽车平稳起步；暂时切断发动机与变速器之间的联系，以便于换档和减少换挡时的冲击；当汽车紧急制动时能起分离作用，防止变速器等传动系统过载，起到一定的保护作用。离合器类似开关，接合或断离动力传递作用，因此，任何形式的汽车都有离合装置，只是形式不同而已。其结构是否合理，性能是否与整车匹配，直接关系到汽车的操纵性、动力性及经济性。本说明书主要研究离合器与整车的 匹配性设计，具体内容做了以下几个方面 ： （ 1） 根据设计的要求完成了汽车的总体设计，并且对汽车的结构型式和主要参数进行了选择。 （ 2） 对离合器的结构方案进行了分析对比，选择离合器形式。 （ 3） 根据前面的汽车总体设计，对离合器基本尺寸、参数进行了选择。 （ 4） 对离合器零部件进行选型、匹配性设计和校核计算。 （ 5） 对离合器操纵系统的设计。通过对机械式操纵系统和液压式操纵系统特点的分析，并选取了液压式操纵系统，对其进行了设计和尺寸计算。 关键词 ：离合器，螺旋弹簧，匹配 nts II dump truck Clutch Design The coupling installs between the engine and the transmission gearbox, the automobile from the start to the travel entire process, needs to use the coupling frequently. Its function is causes between the engine and the transmission gearbox can join gradually, thus guaranteed that the automobile starts steadily; shuts off between the engine and transmission gearboxs relation temporarily, is advantageous shifts gears and reduces shifts gears the time impact; When automobile emergency brake can play the separation role, prevents transmission systems and so on transmission gearbox to overload, plays certain protective function. Therefore, any forms automobile has the engaging and disengaging gear, is only the from is different. The structure of the clutch is reasonable or not, whether the performance matching to the total vehicle, is directly related to the automotive ease of use, vehicle dynamics and the economics and the economy. This paper studies the clutch and matching to the vehicle design. Specific content of the following aspects of the paper on the following main areas of research: According to the design requirements of the automobile to complete the total design, and chose the structure type and the structure type and the main parameters of the vehicle. Compared to the structure of the Clutch, and chose the construction form of the clutch. Under the previous car design, made a choice to the basic clutch size parameters. Made right clutch parts for the clutch parte selection, design and calculation of matching. A clutch control system design. Thro ugh to the mechanical type control system and the hydraulic pressure type control system characteristics, and has selected the hydraulic pressure type control system, has carried on the design nts III and the size computation t it Key words: Clutch, Spiral Spring ,Matching nts IV 目 录 第一章 前言 .1 第二章 离合器主要参数的选择 .3 2.1 离合器的静摩擦力矩 .3 2.2 离合器的静摩擦力矩与发动机最大转矩的基本性能关 .4 2.3 离合器基本结构尺寸和参数的选择 .4 2.3.1 离合器后备系数 的确定 . 5 2.3.2 摩擦系数 的确定 .。 . .6 2.3.3 摩擦片半径 D 的确定 .6 2.3.4 单位压力的确 定 . . 8 第三章 离合器的结构设计与计算 .11 3.1 从动盘总成 .11 3.2 从动盘总成设计 .12 3.2.1 从动 盘钢 片 .12 3.2.2 从动盘毂 .15 3.2.3 从动盘摩擦片 .19 3.3 压盘和离合器盖 .20 3.3.1 压盘设计 .20 3.3.2 压盘传力机构的设计 .22 3.4 离合器盖的设计 .23 3.5 圆柱螺旋弹簧的设计 .26 3.6 扭转减振器的设计 .27 第四章 操纵机构的设计计算 .30 4.1 离合器操纵机构的基本要求与常用结构类型 .30 4.1.1 对离合器操纵机构的基本要求 .30 4.1.2 常用离合器操纵机构的类型 .30 nts V 4.2 离合器操纵机构主要的参数的确定与设计 .34 第五章 传动轴的设计与计算 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 第 六 章 结论 .39 参考文献 .40 致谢 .41 外文 资料译文 .42 nts 1 外文资料翻译 THE RESEARCH AND DESIGN USING CAD SYSTEM FOR THE CLUTCH OF AUTOMOBILE Clutch is used to transfer and switch of the powers which are coming from the engine. In automobile, clutch is connected with engine and derailleur. It can shut of and stably transfer the power between them. How to reasonably, efectively and speedily design clutch always is the pursuing destination of all clutch factories. The appearance of CAD which is the abbreviation of computer aided design make it possible. Automobile CAD is the forerunner of CAD all the times. CAD is fist used in automotive industry and become more and more indivisible with CAM, CAE and CAP furthermore, integration is becoming to reality. Researching how to use computer to aid us design the automobile clutc h and how to develop a useful and advanced automobile clutch computer aided design system-abbreviation is ACCAD that can make a steady system framework for automobile cultch integrated design and manufacture system. are the destination of this thesis. ACCAD system should firstly be able to aid engineer design clutch, secondly to aid engineer analyze the designed clutch, finally to organize and manage the data of design. From the long-term consideration it should also be able to aid workshop manufacture clutch and help manager supervise all the lifecycle of clutch. So it should have a core which can integrate all these subsystem. Engineering database (EDB) is just for this use and Using EDB to construct CIMS become an inevitable current. In order to expand ACCAD and realize clutch CIMS in the future ACCAD system also need EDB as the core to integrate each design and management subsystem into a whole system. At the third chapter of this thesis the technology of EDB and how to design automobile clutch EDB are researched and automobile clutch EDB is set up according to the framework of entire database, project database and design database. nts 2 The traditional procedures of the design of automobile clutch are: selecting storing coeficient, designing clutch structure type, friction flat, clutch sketch, assembled module and each part of clutch. In our country, all these procedure are handmade, but in the coming years with the application of computer aided drawing software such as AutoCAD of AutoDesk corp. engineering drawing can basically be done by computer. But the depicting capability of this two-dimension engineering drawing module is so deficient that it can only be used as drawings and cant be used to analyze by computer. Along with the appearance of B-P modeling and curve-based or solid-based modeling, mechanic parts are denoted by three-dimension module which can beter aid engineer design and analyze them. But this module loses parts of the whole information of them, so it results in much dificulty to integrate aided design subsystem, aided manufacture subsystem and computer analyzing subsystem. Feature-based modeling can just make up this shortcoming, and also if it combines with parameter design technology it can enhance the capability not only of depicting but also of fast amending. At the forth chapter of this thesis the technology of feature-based is researched and the parametric feature-based solid models are created upon MDT that is belonging to AutoDesk corporation. In order to aided engineers to design clutch faster computer is used to simulate engineers to use variant design technology to design clutch products that are based on original models. Variant design technology has some intelligence. Intelligent CAD is a direction of developing CAD. At the fifth chapter of this thesis the technology of variant design is researched and variant design of automobile clutch is achieved on MDT by the technology of parameter table-driven and feature restrained Besides some degree of integrity and intelligence ACCAD system should have some degree of automation, that is to say that ACCAD can automatically design clutch according to primitive design requests, analyze, check and optimize some basic parameters of clutch. At the sixth chapter of this thesis the combining model of clutch is analyzed, some formulas of designing and calculating basic parameter are deduced, the working instances of diaphragm nts 3 spring are analyzed and the characters of load-distortion and stress-strain are calculated simulatively by the formulas of A-L which are approbatory internationally nowadays. The optimizations of some basic parameters and diaphragm spring are carried out by multi-body arithmetic in which design destinations, design restrictions and the primitive value of design variables can be changed according to real demands. Instances deduction and design templates are used to design the model of each part of clutch and all these models are assembled automatically after that basic parameters and structure type are completed according to primitive design demands. The design templates are deduced in existing design instance of clutch product by inteligent instance-deducing technology. Then designers can mend and to-and-fro design them till they can meet the design demands. So computer aided fu nction and mans initiative can be fully enlarged, automatic design and mutual design are combined indeed . It needs not only much knowledge of automobile clutch design and CAD but also much high lever of software design and computer application to really realize such a complicate and advanced ACCAD system. So I also researched the method of object-oriented and the operation system of Windows and study many sorts of program design language. The theory of software engineering is used to analyze ACCAD system in requirement, function structure, flow chart, project design and module design. The software developing tools of Visual Basic and Visual C+ are used to design and implement the ACCAD system. Yi-Dong clutch corporation have applied it to design clutch. P ractice proves that the ACCAD system can aid designers to design clutch well, remarkably improve the ability of clutch product design, greatly shorten the design cycle and also it has very high stability and extensibility. INVESTIGATION TO DYNAMICS AND CONTROL OFVEHICLE AMT CLUTCHES DURING ENGAGEMENT nts 4 China Automotive Parts enterprises face more and more pressure and challenge with China joining WTO.The global Automotive and Parts MNC are gradually entering the lastly and largest potential market of the world.The local automotive industry especially parts is not so good as MNC no matter in scale, capital capacity, products technical level and marketing level.So in order the to exist,the local automotive parts enterprises must improve themselves as quickly as possible in some the fields. One of the important reasons for this risk is the slow Product Engineering with low technical content.It is caused by several reasons that are outdated engineering method， insufficient working experiences，low quality of the working people and the outdated methodology of product Engineering， and the last one is the most important reason. In comparison with hydraulic Automatic Transmission (AT) and Continuously Variable Transmission (CVT), Automatic Mechanical Transmission (AMT) has advantages of much lower cost in manufacturing and easier installation in driveline system .This means that there exists a vast potential market for development of such a mechatronical technology. As an important functional module in AMT vehicles, however, the automatic clutches developed by far still have some shortcomings, for example, of road startup failure, considerable shock, unstable shifting, friction-caused service life reduction, and time-delay response. The key concern is therefore concentrated in this dissertation on real implementation of optimal transient responses and control laws during engagement of the clutches, and detailed investigations are made both in theory and experiment. Strong nonlinearities exist in such component systems as engine, clutch membrane spring and servo actuator and consequently dificulties are encountered in design of the optimal control for improving transient responses of the automatic clutch. A system synthesis is proposed herein for the study of nonlinear dynamics and control of AMT automatic clutches. Based on principles of automotive powertrain systems, the main system under consideration can be decomposed into two sub-systems, engine and trans mission systems. The Popov super stability theory has adopted for the first time in association with reference, nts 5 model following adaptive control for the engine. monitoring. The engine monitor requires accurate predictions of rational velocities. A prediction model is constructed on the basis of flat neural network A fast recursive algorithm is used to improve the learning speed by forgetting factor. Accordingly, the present neural network algorithm leads to considerable reduction of efort in network weighting matrix as wel as increase of self-learning and adaptability of neural network algorithms to nonlinear and nonstationary systems. It has been shown by comparison of the numerical results with experiments that the modified algorithm is proved to be reliable and efective in the engine condition monitoring. In modeling the system, the load-deflection relationship of the clutch membrane spring is generally treated as a black box, and as a result many advanced control methods can not be applied. A new approach for the black box is required nevertheless in development of the accurate model. The nonlinear relationship is mathematically derived out for the clutch system during engagement and a further progress is thus made to certain extent for the Almen-Lazslo method. By matching control inputs of the two subsystems, a synthetically optimal performance of the system can be achieved. It can be seen that by the system synthesis, not only the design of a feedback controller is accommodated according to longitudinal dynamic requirements of the whole vehicle, but an efective procedure is established for solving problems of time-delay and inaccuracy due to the use of the analysis method of upper-lower layers. Diferential geometry provides a powerful tool for the analysis of nonlinear dynamic systems. With consideration of the automatic clutch which is a typical afine nonlinear system, the diferential manifold and corresponding a companion form to the original system with nonlinearities can be constructed by using feedback linearization approach. It is demonstrated by simulations and experiments that this method simplifies the design of the controller, and is of practical significance for real engineering applications. In this dissertation, operator and its transform in frequency domain are introduced for the first time into the field of automotive electronics technology. In comparison with the conventional z operator, digital iterations of operator are featured by higher nts 6 precision and more stability while sample time T -4 0.The nonlinear sliding mode controller is taken as an example, the implementation form of operator discretization control, the error analysis and the algorithms stability are studied both theoty and engineering application. In high frequency sampling systems the approach has advantages in industrial applications and enriches its new fields of application, especially in vehicle eletronics. Based upon the minimum value principle, a multi-objective optimal control is applied to derive out for the first time the optimal response in analytical form by compromising longitudinal shock and plane slipage of the automatic clutch related with each other in the transmission sub-systems. The real significance of the synthetic optimal control lies in expression of the theoretical optimal performance. For preventing the control system from system uncertainties and external perturbations the robust sliding mode controller is designed to guarantee the system to trace the optimal trajectory. Since dynamic properties of the sliding mode is invariant to extraneous disturbance, the SMC method may apply for a kind of complicated systems with nonlinearities and uncertainties like the automatic clutch. It is shown through numerical simulations that errors of the SMC in reference model following are far less than the PID controler whenever the damping orifice flux coeficient of an on-of solenoid, the frictional plate wear qualilty, friction coeficient and the driveline elastic coeficient may be deviated in a permissible range, respectively. Hence, the present work possesses of significant value in engineering application. As an important part of the dissertation, the virtual mechanical prototyping and real on-vehicle experiments for the automatic clutch system are made, respectively. The virtual machine is modeled in ADAMS software and verified by real vehicle experiments. Therefore, through comparison of the virtual experiments within ADAMS environment with theoretical predictions for transient responses of the clutch during engagement, reliable and efective instructions are provided for design of the hydraulic actuator and PC controller required in real vehicle experiments. The control apparatus for automatic clutch include sensors, microcomputer and their interfaces. All experiments are carried nts 7 out on the Santana LX car, and much atention is focused to typical dificult working conditions, such as small throtle angle, heavy load, high gear and steep ramp. It is shown by the results obtained from the experiments that fairly good transient responses during the clutch engagement are achieved. By the control strategies presented in this dissertation, the engine is prevented from flameout, moreover, vehicle startup and gear shift smoothly can be adjusted with short friction duration and quick response of the actuator. All these mean that the adaptability for subjective will, time varying driving conditions of vehicle and complicated surroundings. In a word, on the basic of theoretical research and control technology, the performance of AMT automatic clutch is improved markedly, moreover, the apparatus for experiments establishes a massy foundation for future product development. nts 8 汽车离合器 CAD 系统的研究与设计 离合器是用来传递和切断从发动机传来的动力的一种机构。在汽车上， 它和发动机的飞轮相连接，切断和平稳地实现发动机和变速器之间的动力传递。如何合理、高效、快捷地设计离合器一直是国内外离合器厂家追求的目标， CAD (Computer Aided Design)的诞生将此希望变为可能。汽车 CAD 一直是 CAD 技术的先驱， CAD 技术最先是应用在汽车工业上，而且与 CAM. CAE 和CAPP 越来越不可分割，集成化正成为现实。研究如何应用计算机来辅助设计汽车离合器，以及如何设计开发出一个实 用的、先进的汽车离合器 CAD 系统 简称 ACCAD (Automotive Clutch CAD)，为实现汽车离合器集成设计制造系统打下一个坚实的系统框架，正是本文的目的。 汽车离合器 CAD 系统首先必须能够辅助工程设计人员设计离合器、其次能够辅助设计人员分析设计的离合器、最后还能够很好的组织和管理设计过程中的数据。从长远考虑它还应该能够辅助生产车间制造新产品、管理人员管理整个产品的生命周期，所以必须有一个核心能够将这些子系统集成在一起。工程数据库正是在这种需求下诞生的，以工程数据库为核心构建 CIMS 已成 了必然的趋势。为今后汽车离合器 CAD 系统的扩充和发展，以及逐步实现CIMS 创建一个坚实的框架， ACCAD 系统同样也需要以工程数据库为核心将个设计和管理子系统集成为一个整体。本文第三章对工程数据库技术进行研究，并对汽车离合器 CAD 系统的工程数据库设计进行了讨论，按全局库、项目库和设计库的组织结构创建了汽车离合器工程数据库。 传统的汽车离合器设计基本上是选择后备系数、离合器型式、设计摩擦片、设计草图、设计装配总成、设计各零件。在国内，这些过程基本上都是人工进行的，但近些年来，随着计算机辅助绘图软件如 AutoDesk 公司的AutoCAD 的应用，工程图的绘制基本上可在计算机上进行。用这种二维工程图的模型，计算机只能辅助工程设计人员绘制工程图纸，无法对零部件进行分析，这种模型描述能力低下。随着线框建模技术、基于曲面或实体建模技术的出现，零部件在计算机中将以三维的方式表示，它能够很好地辅助工程设计人员设计和分析零部件。但这种模型缺乏对产品零部件信息的完整描述， 从而导致计算机辅助设计系统、制造系统和分析系统集成困难。特征建模技术正好能够弥补这种缺陷，而将特征建模技术和参数化建模技术结合起来则 nts 9 既能提高产品模型的描述能力 又能够提高产品模型的快速修改能力。本文第 四章对参数化特征建模技术进行研究，并用参数化特征建模技术在 AutoDesk 公司的 Mechanical Desktop(简称 MDT)软件上对汽车离合器零部件建立了产品模型。 为使汽车离合器 CAD 系统辅助设计人员更快地开发离合器新产品，让计算机模拟工程设计人员根据原有的产品模型进行变型设计是 CAD 系统智能化的一个表现。智能 CAD 是 CAD 的一个发展方向。本文的第五章对变型设计技术进行了研究，并应用参数表驱动和特征抑制技术在 MDT 上实现了汽车离合器零部件的智能化变型设 计。 汽车离合器 CAD 系统除了具有一定的集成化和智能化之外还应该具有一定的自动化，也就是说系统能够根据设计要求自动地设计离合器、并对离合器的一些基本参数和零部件进行校核分析和优化。本文的第六章对离合器的结合模型进行了分析，推导出了一些基本参数设计计算公式 ;对膜片弹簧的工作情况进行了分析，运用当前国际上比较认可的 A-L 法对膜片弹簧的载荷变形特性和应力应变特性进行了仿真计算。汽车离合器基本参数优化和膜片弹簧的优化均采用复合形优化算法，其中设计目标、设计约束和设计变量的初始值，设计人员可以根据实际要求改变。根据 设计和优化了的离合器的基本参数、离合器的型式、初始条件，采用实例推理法和设计模板法初步设计离合器的各零部件，并自动将其装配起来，形成离合器零部件及装配模型的设计模板。设计模板是通过智能化实例推理技术从现有的实例中推理而来， 然后用户则在此基础上采用交互的方式逐步改进、往复设计，直到满足设计要求为止。因此这样既发挥了计算机的辅助作用，也充分地扩展了人的主动地位，真正地实现了自动化设计和交互式设计相
