大学生方程式混合动力电动赛车设计大学生方程式混合动力电动赛车设计【优秀电动赛车课程毕业设计含3张CAD图纸】【带外文翻译】【47页正文20700字】【详情如下】【需要咨询购买全套设计请加QQ1459919609】CAXA图纸大学生方程式混合动力电动赛车设计.doc混合动力赛车总体.dwg轮毂电机.dwg轮毂电机后轮总装.dwg通过试验台实施跨车辆通信系统为车辆排实验外文文献翻译中英文翻译外文翻译大学生方程式混合动力电动赛车设计摘要本次毕业设计，我进行了大学生方程式混合动力电动赛车的总体设计。在设计中，主要运用了对比分析的方法，各项参数通过优化设计和UG、MATLAB等进行优化。我根据2012年大学生方程式汽车大赛规则确定了赛车整体布置方案，并进行论证与分析，初步确定混合动力电动赛车主要参数。通过计算与对比，确定发动机型号和电动机型号,并确定其混合形式并联式。初选传动系最大传动比、最小传动比。我设计中使用UG8.0三维软件对各个零部件总成进行建模和整体装配，并进行悬架、转向的运动干涉分析。利用发动机动力特性曲线和电动机动力特性曲线特点，用MATLAB软件绘制出混合动力电动赛车驱动力-行驶阻力平衡图、加速度曲线图等，并详细计算混合动力电动赛车的燃油经济性。利用UG8.0进行导出混合动力电动赛车总体布置二维工程图，并制成总体参数表，并将纯发动机赛车与此次混合动力电动赛车进行对比分析。通过本次毕业设计，了解和掌握了对汽车进行总体设计的步骤和方法，并且使我认识到混合动力汽车的发展前景。巩固了本专业的所学的专业知识，增强了搜集资料、整合资料的能力，这些将为我毕业以后从事汽车设计工作打下良好的基础。关键词：混合动力电动赛车，参数确定，总布置，动力性，经济性FORMULA STUDENT HYBRID RACING DESIGNABSTRACTMy graduation design is the overall design of the formula hybird racing. I used the contrast analysis method mainly in the design, through optimizing the parameters optimization design and optimization of UG MATLAB, etc. equation overall layout of the car, and the demonstration and analysis, the main parameter is determined primarily racing. Through calculation and comparison, sure engine type, primaries drivetrain maximum transmission ratio, minimum transmission.The intermediate stage, we design UG8.0 3d software used in various parts of assembly for modeling and whole assembly, and suspension, steering movement interference analysis. Use of engine power characteristic curve characteristic, MATLAB software mapped drive car driving forces - resistance balance figure, acceleration curve, and etc, and detailed calculation racing fuel economy.The final stages UG8.0 are derived by car, general layout, and two-dimensional engineering graphics overall parameter table, and made the first generation and the second generation racing cars are compared and analyzed. For considering the actual production of may change suspension, frame and steering parts, obligate scheme.Through the graduation design, I understand and master the overall design of car of the steps and method, the professional knowledge of professional knowledge, enhance the data collection and integration of information, these ability after my graduation will be engaged in car design lay a good foundation for the job.KEY WORDS: hybrid racing, parameter identification，general arrangement, the car power, econom目录第一章大学生方程式混合动力电动赛车总体概况1§1.1 混合动力汽车发展现状1§1.2大学生方程式混合动力电动赛车发展现状2§1.3 大学生方程式混合动力电动赛车电动总体设计概述3§1.3.1汽车设计的规律、决策与设计过程3§1.3.2 大学生方程式混合动力电动赛车主要技术要求4§1.3.3 本次混合动力电动赛车动力性设计目标4§1.3.4 大学生方程式混合动力电动赛车项目意义5第二章大学生方程式混合动力电动赛车总体设计6§2.1 总体设计目标6§2.2 赛车目标参数的初步确定7§2.2.1 发动动机的选择8§2.2.2 电动机的选择9§2.2.3 轮胎的选择9§2.2.4 传动系最小传动比的确定10§2.2.5 传动系最大传动比的确定11§2.3 混合动力电动赛车发动机和电动机选型12§2.4 混合动力电动赛车主要设计参数的确定13§2.4.1 尺寸参数13§2.4.2 质量参数14§2.4.3 性能参数15§2.5 赛车各系统设计18§2.5.1 悬架系统设计18§2.5.2 转向系统设计19§2.5.3 制动系统设计19§2.5.4 电器系统设计22§2.5.5 车身设计23§2.5.6 车架设计24第三章大学生方程式混合动力电动赛车动力性与经济性25§3.1 汽车的动力性25§3.1.1 动力性的评价指标25§3.1.2驱动力行驶阻力图25§3.1.3 汽车的加速能力28§3.1.4 动力特性图29§3.1.5 功率平衡31§3.2 燃油经济性32第四章大学生方程式混合动力电动赛车总体布置34§4.1整车布置的基准线（面）-零线的确定34§4.2各部件的布置34§4.3总体设计参数表37第五章结论39参考文献40致谢41第一章大学生方程式混合动力电动赛车总体概况混合动力汽车（Hybrid Electric Vehicle, HEV）是指车辆驱动系由两个或多个能同时运转的单个驱动系联合组成的车辆，车辆的行驶功率依据实际的车辆行驶状态由单个驱动系单独或共同提供，当前复合动力汽车一般是指内燃机车发电机，再加上蓄电池的汽车。因各个组成部件、布置方式和控制策略的不同，形成了多种分类形式。混合动力车辆的节能、低排放等特点引起了汽车界的极大关注并成为目前汽车研究与开发的一个重点。Formula SAE 赛事的主要参与者通常都是来自高校的学生组成的车队。现在在美国、欧洲和澳大利亚每年都会举办Formula SAE 比赛。Formula SAE 赛事正在如火如荼的进行，而他们动力形式还采用纯发动机形式，随着混合动力的发展，为了面向未来汽车行业的发展，现在又提出了应用另一种动力形式的赛车混合动力电动赛车。这又向年轻的工程师们提供了一个参与有意义的综合项目的机会。由参与的学生负责管理整个项目，包括时间节点的安排，做预算以及成本控制、设计、采购设备、材料、部件以及制造和测试。参考文献1 张文春，汽车理论，机械工业出版社，2007.11，22-442 刘惟信，汽车设计，清华大学出版社，2001.73 陈家瑞，汽车构造（第二版下册），机械工业出版社，2005.1，98-1164 王望予，汽车设计（第四版），机械工业出版社，2009.1，1-505 张洪欣，汽车设计，机械工业出版社，1983.3, 7-476汽车工程手册（第二分册），机械工业出版社，1984.4， 386-4197 编辑委员会，汽车工程手册摩托车篇，人民交通出版社，2001.3 ，170-1888 机械设计手册编委会，机械设计手册新编，机械工业出版社，2004.8,16-44-16-669 中国汽车技术研究中心，汽车设计标准资料手册（金属篇），河北抚宁印刷，1994.10, 357-35810 长春汽车研究所编.悬架设计.汽车技术，1973，第五期 ,34-36 11 东北大学组编.机械零件·设计手册.，冶金工业出版社，1994，268-28112 吴宗泽.机械设计实用手册.，化学工业出版社，2001,13王昆，何小柏，汪信远.机械设计基础课程设计.，高等教育出版社，2004 14 汽车工程手册编委会编.汽车工程手册.设计篇.，人民交通出版社，200115 汽车工程手册编委会编.汽车工程手册.基础篇.，人民交通出版社，200116 神龙汽车有限公司编著.中国轿车丛书：富康.，北京理工大学出版社，199817 吴子牛，王兵，周睿，空气动力学（上册），清华大学出版社，2007.118 常思勤，汽车动力装置，机械工业出版社，2006.219 2010 Formula SAE Rules, SAE Inc, 2009.10，all20 Race.Car.Vehicle.Dynamics Society of Automotive Engineers, tnc.Warrendate, Pa.21 Carroll Smith, Drive to Win, Motorbooks22 Herb Adams, Chassis Engineering, HPBooks

编号：475232 类型：共享资源大小：3.11MB 格式：RAR 上传时间：2015-08-29 上传人：QQ14****9609 IP属地：陕西

40
积分

版权申诉 word格式文档无特别注明外均可编辑修改；预览文档经过压缩，下载后原文更清晰！ 立即下载

关键词：: 大学生方程式混合动力电动赛车赛车设计课程毕业设计大学生方程式混合动力电动赛车设计

资源描述：

大学生方程式混合动力电动赛车设计

大学生方程式混合动力电动赛车设计【优秀电动赛车课程毕业设计含3张CAD图纸】

【带外文翻译】【47页@正文20700字】【详情如下】【需要咨询购买全套设计请加QQ1459919609】

CAXA图纸

大学生方程式混合动力电动赛车设计.doc

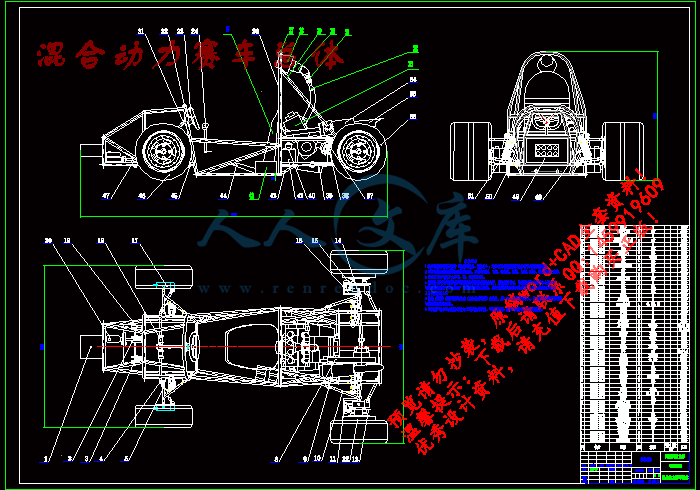

混合动力赛车总体.dwg

轮毂电机.dwg

轮毂电机后轮总装.dwg

通过试验台实施跨车辆通信系统为车辆排实验外文文献翻译@中英文翻译@外文翻译

大学生方程式混合动力电动赛车设计

摘要

本次毕业设计，我进行了大学生方程式混合动力电动赛车的总体设计。在设计中，主要运用了对比分析的方法，各项参数通过优化设计和UG、MATLAB等进行优化。

我根据2012年大学生方程式汽车大赛规则确定了赛车整体布置方案，并进行论证与分析，初步确定混合动力电动赛车主要参数。通过计算与对比，确定发动机型号和电动机型号,并确定其混合形式——并联式。初选传动系最大传动比、最小传动比。

我设计中使用UG8.0三维软件对各个零部件总成进行建模和整体装配，并进行悬架、转向的运动干涉分析。利用发动机动力特性曲线和电动机动力特性曲线特点，用MATLAB软件绘制出混合动力电动赛车驱动力-行驶阻力平衡图、加速度曲线图等，并详细计算混合动力电动赛车的燃油经济性。利用UG8.0进行导出混合动力电动赛车总体布置二维工程图，并制成总体参数表，并将纯发动机赛车与此次混合动力电动赛车进行对比分析。

通过本次毕业设计，了解和掌握了对汽车进行总体设计的步骤和方法，并且使我认识到混合动力汽车的发展前景。巩固了本专业的所学的专业知识，增强了搜集资料、整合资料的能力，这些将为我毕业以后从事汽车设计工作打下良好的基础。

关键词：混合动力电动赛车，参数确定，总布置，动力性，经济性

FORMULA STUDENT HYBRID RACING DESIGN

ABSTRACT

My graduation design is the overall design of the formula hybird racing. I used the contrast analysis method mainly in the design, through optimizing the parameters optimization design and optimization of UG MATLAB, etc.

equation overall layout of the car, and the demonstration and analysis, the main parameter is determined primarily racing. Through calculation and comparison, sure engine type, primaries drivetrain maximum transmission ratio, minimum transmission.

The intermediate stage, we design UG8.0 3d software used in various parts of assembly for modeling and whole assembly, and suspension, steering movement interference analysis. Use of engine power characteristic curve characteristic, MATLAB software mapped drive car driving forces - resistance balance figure, acceleration curve, and etc, and detailed calculation racing fuel economy.

The final stages UG8.0 are derived by car, general layout, and two-dimensional engineering graphics overall parameter table, and made the first generation and the second generation racing cars are compared and analyzed. For considering the actual production of may change suspension, frame and steering parts, obligate scheme.

Through the graduation design, I understand and master the overall design of car of the steps and method, the professional knowledge of professional knowledge, enhance the data collection and integration of information, these ability after my graduation will be engaged in car design lay a good foundation for the job.

KEY WORDS: hybrid racing, parameter identification，general arrangement, the car power, econom

第一章大学生方程式混合动力电动赛车总体概况1

§1.1 混合动力汽车发展现状1

§1.2大学生方程式混合动力电动赛车发展现状2

§1.3 大学生方程式混合动力电动赛车电动总体设计概述3

§1.3.1汽车设计的规律、决策与设计过程3

§1.3.2 大学生方程式混合动力电动赛车主要技术要求4

§1.3.3 本次混合动力电动赛车动力性设计目标4

§1.3.4 大学生方程式混合动力电动赛车项目意义5

第二章大学生方程式混合动力电动赛车总体设计6

§2.1 总体设计目标6

§2.2 赛车目标参数的初步确定7

§2.2.1 发动动机的选择8

§2.2.2 电动机的选择9

§2.2.3 轮胎的选择9

§2.2.4 传动系最小传动比的确定10

§2.2.5 传动系最大传动比的确定11

§2.3 混合动力电动赛车发动机和电动机选型12

§2.4 混合动力电动赛车主要设计参数的确定13

§2.4.1 尺寸参数13

§2.4.2 质量参数14

§2.4.3 性能参数15

§2.5 赛车各系统设计18

§2.5.1 悬架系统设计18

§2.5.2 转向系统设计19

§2.5.3 制动系统设计19

§2.5.4 电器系统设计22

§2.5.5 车身设计23

§2.5.6 车架设计24

第三章大学生方程式混合动力电动赛车动力性与经济性25

§3.1 汽车的动力性25

§3.1.1 动力性的评价指标25

§3.1.2驱动力—行驶阻力图25

§3.1.3 汽车的加速能力28

§3.1.4 动力特性图29

§3.1.5 功率平衡31

§3.2 燃油经济性32

第四章大学生方程式混合动力电动赛车总体布置34

§4.1整车布置的基准线（面）-零线的确定34

§4.2各部件的布置34

§4.3总体设计参数表37

第五章结论39

参考文献40

致谢41

第一章大学生方程式混合动力电动赛车总体概况

混合动力汽车（Hybrid Electric Vehicle, HEV）是指车辆驱动系由两个或多个能同时运转的单个驱动系联合组成的车辆，车辆的行驶功率依据实际的车辆行驶状态由单个驱动系单独或共同提供，当前复合动力汽车一般是指内燃机车发电机，再加上蓄电池的汽车。因各个组成部件、布置方式和控制策略的不同，形成了多种分类形式。混合动力车辆的节能、低排放等特点引起了汽车界的极大关注并成为目前汽车研究与开发的一个重点。

Formula SAE 赛事的主要参与者通常都是来自高校的学生组成的车队。现在在美国、欧洲和澳大利亚每年都会举办Formula SAE 比赛。Formula SAE 赛事正在如火如荼的进行，而他们动力形式还采用纯发动机形式，随着混合动力的发展，为了面向未来汽车行业的发展，现在又提出了应用另一种动力形式的赛车——混合动力电动赛车。这又向年轻的工程师们提供了一个参与有意义的综合项目的机会。由参与的学生负责管理整个项目，包括时间节点的安排，做预算以及成本控制、设计、采购设备、材料、部件以及制造和测试。

参考文献

[1] 张文春，汽车理论，机械工业出版社，2007.11，22-44

[2] 刘惟信，汽车设计，清华大学出版社，2001.7

[3] 陈家瑞，汽车构造（第二版下册），机械工业出版社，2005.1，98-116

[4] 王望予，汽车设计（第四版），机械工业出版社，2009.1，1-50

[5] 张洪欣，汽车设计，机械工业出版社，1983.3, 7-47

[6]汽车工程手册（第二分册），机械工业出版社，1984.4， 386-419

[7] 编辑委员会，汽车工程手册摩托车篇，人民交通出版社，2001.3 ，170-188

[8] 机械设计手册编委会，机械设计手册新编，机械工业出版社，2004.8,16-44--16-66

[9] 中国汽车技术研究中心，汽车设计标准资料手册（金属篇），河北抚宁印刷，1994.10, 357-358

[10] 长春汽车研究所编.悬架设计.汽车技术，1973，第五期 ,34-36

[11] 东北大学组编.机械零件·设计手册.，冶金工业出版社，1994，268-281

[12] 吴宗泽.机械设计实用手册.，化学工业出版社，2001,

[13]王昆，何小柏，汪信远.机械设计基础课程设计.，高等教育出版社，2004

[14] 汽车工程手册编委会编.汽车工程手册.设计篇.，人民交通出版社，2001

[15] 汽车工程手册编委会编.汽车工程手册.基础篇.，人民交通出版社，2001

[16] 神龙汽车有限公司编著.中国轿车丛书：富康.，北京理工大学出版社，1998

[17] 吴子牛，王兵，周睿，空气动力学（上册），清华大学出版社，2007.1

[18] 常思勤，汽车动力装置，机械工业出版社，2006.2

[19] 2010 Formula SAE Rules, SAE Inc, 2009.10，all

[20] Race.Car.Vehicle.Dynamics Society of Automotive Engineers, tnc.

Warrendate, Pa.

[21] Carroll Smith, Drive to Win, Motorbooks

[22] Herb Adams, Chassis Engineering, HPBooks




内容简介：: SICE Annual Conference in Fukui. August 4-6,2003 Fukui University, Japan Implementation of Inter-Vehicle Communication System for Vehicle Platoon Experiments via Testbed Tae Min Kim, Jae Weon Choi School of Mechanical Engineering and Research Institute of Mechanical Technology Pusan National University, Pusan 609-735,Korea tmkim,choijuQpusan.ac.!u Abstract: This study considers the implementation issues of the inter-vehicle communication system for the vehicle platoon experiments via a testbed. The testbed, which consists of three scale vehicles and one RCS(remote control sbation), is developed as a tool for functions evaluation between simulation studies and full-sized vehicle researches in the previous study. The cooperative communication of the vehicle-to-vehicle or the vehicle-to-roadside plays a key role for keeping the relative spacing of vehicles small in a vehicle platoon. Then: the traffic capacity could be increased greatly. The static platoon control, where the number of vehicles remains constant, is sufficient for the information to he transmitted in the suitably fixed interval, while the dynamic platoon control such as merge or split requires more flexible network architecture for the dynamical coordination of the communication sequence. In this study, the wireless communication device and the reliable protocol are implemented for the flexible network architecture, using the lowcost, short-range, IShI band transceiver and the 6-bit microcontroller. Keywords: vehicle platoon, wireless communication system, testbed 1. Introduction Urban road in most major cities becomes congested more and more because the demand of travel exceeds highway capacity. The congestion problem causes many other problems: the waste of time and energy, the traf- fic accident, the pollution, and so on. ITS (Intelligent Tkansportation System) is developed actively as a SD lution of these problems. Especially, IVHS (Intelligent Vehicle and Highway System) is the major subject in ITS. The purpose of IVHS is to improve safety as well as l,o increase a highvmy capacity through automated vehicles and automated highways.) In IVHS, a exem- plary method of efficient vehicle control by grouping in plat.oons has been proposed in PATH program.) The vehicle platoon is a group of vehicles traveling together at a high speed with relatively small spacing. Vehicles in close-formation platoons are dynamically coupled hy feedback control laws. Depending on the information available for feedback and depending on how such a11 in- formation is processed in the synthesis of an automatic vehicle following control law, dynamic interactions be- tween vehicles can cause instability in a vehicle string. The control with the information of the lead vehicle which is the first vehicle in a platoon and the preced- cle. For the static platoon control, where the number of vehicles remains constant, it is sufficient, for the iofor- mation to he transmitted in the suitably fixed interval since each vehicle dose not require the frequent update of the control input. This scheme guarantees that each vehicle in the platoon has an opport,unity to transmit its information every one cycle. For the dynamic pla- toon control, such as merge or split, the more flexible network architecture is required. In this case, since the maneuvering vehicle for merge or split requires the fre- quent update of the control input, the more inforniatioo should be transmitted to the maneuvering vehicle than others. Therefore, the more opportunity to transmit the information is given to the lead vehicle and the ma- neuvering vehicle. In this scheme, the cominunicat.ion sequence should he coordinated effectively. The coordi- nation of the communication sequence may be achieved easily by the RCS(remote control station). In this study, the wireless communication system, which can coordinate the communication sequence by the RCS- is implemented for the vehicle longitudinal platoon experiments. 2. System Requirements ing vehicle can only guarantee the stability in a vehicle striig.) The information of the preceding vehicle can be ob- tained relatively by the range radar. But the informa- tion of the lead vehicle is not available to all vehicles in a platoon. The wireless communication only enables all vehicles to obtain the information of the lead whi- n&jC flow capacities are affected directly vehicle pla- toon control strategies. The effectiveness of a platoon control strategy can be gauged by the maximum traffic flow capacity, the attenuation of spacing errors that it can guarantee, and the amount of information that is needed to implement the strategy in real-time. There are twn main methods of control that have been studied 3414 PR0001/03/0000-1823 $400 0 2003 SICE ntsRemte Canlrol Scation ? . El Fig. 1: The configuration of the testhed Fig. 2: The configuration of a scale vehicle of the testbed in IVHS: comtant spacing and constant headay.) In constant spacing control, the desired spacing between vehicles is tracked whereas in constant headway con- trol, a desired headway which is the time it takes a vehicle to cover the distance between itself and the pre- ceding vehicle is maintained. The advantages of using constant spacing over constant headway control is to increase the throughput of vehicles on the highvay, al- though constant headway control is more favorable since no external information is required. In constant spacing control, external information is required for string sta, bility. A wireless communication system can be utilized to transfer this external information. In vehicle platoon system with constant spacing strat- egy, the following vehicle needs the information of the preceding vehicle and the information of the lead vehi- cle. The information includes the position, the velocity, the acceleration, and the particular command of the preceding or the lead vehicle. At the same time, each vehicle may need the command of a RCS due to a spec- ified event such as emergency. In the previous study4), the testhed for vehicle longitudinal platoon experiments is developed. The testbed shown in Fig. 1 consists of three scale vehicle and a RCS. Each vehicle includes, as shown in Fig. 2, the sensors for the data acquisition of available information, the operating system for the com- putation of the control command, the actuators for the driving and steering for the most effective maneuvering, the wireless communication system for the exchange of external information, and the interface for the synthesis of basic functions. In the previous stndy4), the 433hIHz RF-module, BIAJ-433, is used for the implement,ation of the wire- less communication system of which the architecture is the TDhIA (Time Division lZIultiple Access) with to ken passing. The data transfer rate of this Id-module is 38Kbps and the carrier sense algorithm is not sup- ported. Therefore, the performance of the communica- tion system is not sufficient for the sequence scheduling algorithm5. G, and the control synchronization with ve- hicles. For stable movement of each vehicle, the sam- pling period of a vehicle should be less than 401s. Sen- sors used in testbed can be satisfied with the sampling period of 30ms. It takes above 5ms to transmit the data (12bytes) and the preamble (above 3ms) at 38Kbps. To improve the performance and rohnstness of the com- munication system, more time is needed because the overhead of packet is increased. In addition, the verifi- cation with a variety of network sequence scheduling al- gorithm wants more flexible network architecture. The wireless communication system is composed of both the hardware and the software. The hardware provides the means to connect various stations (vehicles or RCS) in the network while software provides smart control over the hardware components. The software will also pro vide a flexible and reliable protocol for the exchange of communication data. 3. Hardware Implementation The hardware of the wireless communication system is composed of the following components: t,he RF front- end module, the int.erface chipset reserved for RF front- end module, and t,he hICU(microcontrol1er unit). The Fig. 3 illustrates the configuration of the wireless com- munication system. The architecture of the hardware is classified into four layers as follorvs: PHY layer (Physical layer) PHY-RIAC layer (Physical-to-MAC layer) MAC layer (Medium Access Control layer) MAC-APP layer (AIAC-twApplication layer) The PHY layer is achieved by the RF front-end module, RFWI02 transceiver (transmitter/receiver) chipset which is developed by RFUaves Ltd.) The PHY-hIAC layer is constructed by the interface chipset, the IJO (input/outpnt) ports of AICU, and the IJO driver in AICU. The exclusive interface chipset, the RFWD100 developed by RFWaves Ltd., is used for the interface of the RFW-102.8) The hIAC layer, which is a set of protocols for maintaining order in the use of a shared medium, is the software in AICU. The AIAC layer is discussed in later chapter because it is the soft- ware component. The MAC-APP layer is the interface part between the wireless communication system and the vehicle or RCS. 3415 ntsPHI-IMC Fig. 3: The configuration of the wireless communication system Operationg frequency Serial UART Memory Table 1: The specification of the RFW-102 Transfer rte I 11 tn IMhnn Physical Media I DSSS, ISM Band (2.4GHz) 3.6864hIHz 2EA(up to liblbps) 16Kbytes(flash), -. -. . _. Ir ._ _._. Bandwidth I 30hlhz at -20dB Timer/Connter 8-bit(ZEA), lB-hit(lEA) 3.1 PHY layer The PHY layer actually handles the transmission of dat;a between the wireless communication system. In this layer, RFW-102 transceiver chipset is used BS the RF front-end module. The motivation for the RFW-101 is its high data transfer rate, the ease in interfacing to an external de- vice, the availability for carrier sense algorithm, and the inexpensiveness. Table. 1 shows the specification of the RFTV-102. Since the transceiver chipset provides a peak output power of 2dBm and the sensitivity is -80dBm when BER (Bit Error Rate) is the transmission is available up t,o 30m in open. This range is suitable for the testbed using scale vehicles of which the size is about 0.3m. 3.2 PHY-MAC layer PHY-hJAC layer is the interface between the RF front- end module and AIAC protocol. The layer is con- structed with the following components: the interface chipset reserved for RF front-end module, the 110 ports of the microcontroller unit, the driver for 110 ports. The RFW-D100, developed by the RFIVaves Ltd., is used as the interface chip. The RFW-D100 is a com- plimentary chip to the RFW-102 chipset. It proxrides a parallel interface to the RFW-102, and other features which make it easy to implenient. a protocol suitable for wireless communication. For this study, the hICU is in charge of the MAC layer protocol and the driver for 110 control. The interface chip reduces the real-time demands of the AlCU handling the MAC protocol. The interface chip gives the hICU an easy parallel interface with the RF front-end module, similar to memory ac- cess. The interface chip converts the fast serial input from the RF front-end chipset to 8-hit words, which are suitable for an 8-bit hICU to work with. In addition, the interface chip requires a lower rate oscillator for idle mode. In the idle mode, the power consumption of the BER 3416 at -80dBm I lKbytes(SRAh1) External Interrupts I 3EA RFW-102 and the FWW-0100 is greatly decreased. The interface chip buffers the data through a l6byte FIFO (First In First Out buffer), which is giving the hlCU access to the RFW- DlOO more efficiently. Instead of reading 1 byte per int,errupt, the hICU can read up to 16bytes in each interrupt. In cases where each incoming byte causes an interrupt, this reduces the overhead of the MCU in reading incoming words, insofar as stack stuffing and pipeline emptying are concerned. When using the FIFO, the AICU pays the same overhead for all the FIFO bytes, as it paid for only one byte without a FIFO. The hICU handles actually the RFIV-D100 by AIAC protocol and application. The ATmegalGlL, developed by ATAIEL Corp., is used as the AICU.g) Table 2 shows the specification of the ATmegalGIL. In this study, the ATmegalGlL allows two external interrupts to be invoked by the RFWD100. The state of MAC layer is changed by the interrupts invoked by the event of the RFW-D100. According to the change of the state, MAC layer executes particular functions, such as receiving, transmitting, error check, acknowl- edgement, and other handling of data. 3.3 MAC-APP layer MAC-APP kyer is the interface between MAC layer and APP(application) layer. In this study, the applica- tion layer is the control loop of each vehicle. The APP layer is connected to the programmable serial UART, which has one interrupt vector. Therefofe, the inter- rupt invoked by the application layer also coordinates the state of MAC layer and the particular functions are achieved. In addition, the redundancy of internal SRAhI is allocated for the receiving and transmitting buffer, which extends the FIFO in WWD100. Then, it becomes possible to transmit and receive longer size of data than FIFO in RFW- DZOO continually. 4. Software Implementation Fig. 4 illustrates the block diagram of software configu- ration in this study. Software configuration is classified into three layers as follows: PHY-MAC layei MAC-APP layer ntsMK-APP Fig. 4 The block diagram of software configuration MAC layer The hIAC layer is also divided into hIAC state and MAC data. The general procedure of the XIAC protocol is as follow!;: 1. The external interrupt invoked by the PHY layer or the ,UART interrupt invoked by the APP layer activates the MAC state management. 2. The hlAC state management checks the stat,us of the PHY layer or the APP and changes the hIAC state in accordance with the result of that. 3. According to the newly changed MAC state, the MAC ,data management controls the data stream and the RX/TX buffer. 4. And then, in accordance with the result of the RIAC data management, the MAC state manage- ment sets the new MAC state. Two external interrupts of the hICU is allocated for the PHY layer and UART interrupt is allocat.ed for the APP layer. The transition of the MAC state is driven by these interiupts and the bbit timer controls the execu- tion time. Therefore, the configuration of the protocol logic is improved effectively and the real-time execution is guaranteed. In addition, RX buffer and TX buffer in the MAC 1:Lyer have 64hytes of SRAII, respectively, for the constraint of the FIFO size in the RFWD100. 4.1 Reliiable protocol In genera1,lthe communication is done by the exchange of the packet which is a set of data for efficiency and conveniencs:. In this study, a packet, as shown Fig. 5, consists of the following fields: Preamble: to synchronize the receiver side Fig. 5: The configuration of a data packet for vehicle to vehicle Network ID: to filter a packet from other network Destination: Destination ID Source: source ID Type/Seq: Type of packet/Numher of sequence Size: Size of the whole packet DATA: Actual data to transfer CRC: 16bit-CRC to check the validity of the packet The data field includes the position, the velocity, the acceleration, for the transmission of each vehicles data. For the command packet of the RCS; the data field in- cludes the comma.nd of t,he RCS. In this study, the IS11 band RF transceiver is used. Since IShI band is a shared resource between many wire- less applications such as IEEE 802.11 and Bluetooth, an overlap in time, frequency and space domain must oc- cur and the network may experience interference from other network. Each of the standards such as IEEE 802.11 and Bluetooth uses a packet-oriented protocol and utilizes the shared channel only for fragments of time. A protocol for an ISM hand application will have to use the time intervals for which the channel is free or relatively free (the interference is weaker) in order to transfer the required data. When a node wants to transmit, the node listens to the channel and checks if the channel is free. This is done hy CS (Carrier Sense) mechanism supported by RFW-DlOO.) In order to make sure that a data packet arrives suc- cessfully at t.he destination (receiver), the source (trans- mitter) needs to get some verification from the receiver side within a certain fixed time. The transmitter will get this verificat,ion, by getting an acknowledge packet from the receiver side. If the transmitter does not get an acknowledge packet, the transmitter tries to retransmit the data packet. 4.2 Protocol behavior For the static platoon control, since each vehicle dose not need the frequent update of the control input, the chance of the transmission of the data packet is allo- cated uniformly in each vehicle. For the dynamic pla- toon control, since the maneuvering vehicle for merge or split requires the frequent update of the control in- put, the more information should be transmitted to the maneuvering vehicle than others. This is the reason 3417 nts,. I- I* I (201 m mr.o*.* m *a* I/om.n/,* Tam, CCm Fig. 6: The example of the protocol behavior wby the communication sequence is coordinated dy- namically. The algorithm of finding the communication sequence was worked in Choi and Fangs work.5: The coordination of the communication sequence is achieved by the RCS. Fig. 6 shows the example of the prot.oco1 behavior in one cycle between wireless communication systems of this study. The communication sequence is #I, #2, #R. The major feature is that the RCS broadcasts t,he communication sequence command packet and the data update command packet every one cycle. At first, the RCS broadcasts the communication sequence com- mand packet. Then, each vehicle tries to transmit the data packet according 1.0 the communication sequence command. For the synchronization of
