摘要随着科学技术的不断发展，农业机械化技术也发展到了一个新的水平；随着农业机械化技术的发展和人们生活水平的提高，水果多功能加工机的改进成为目前消费者关心的热点问题。本文介绍了多功能加工机的研究意义、多功能加工机的研究现状，分析了多功能加工机的发展前景，详细讲述了机械式钢筋钢管多功能加工机的工作原理。这次和同组人员一起设计的机械式钢筋钢管多功能加工机能够更独特地更好地满足消费者的意愿，本着简单、方便、实用为原则一切从消费者的利益出发。而且，该多功能加工机祛除了以前多功能加工机出汁率底、果汁不清的弊端。单相串激式电动机充分体现了自动化、高效化、小型化、简单化、环保化等特点。最后，我相信我们所设计的这台集专业化、智能化，自动化、，高效化、小型化、简单化、环保化、安全性为一体的多功能加工机能够早日走进消费者的家庭。?? 关键词机械式钢筋钢管多功能加工机、电机选配、壳体设计、榨汁部件设计

毕业设计说明书外文摘要

The Mechanical Design of Centrifugal Juice Extractor

Abstract

With the development of science and technology, the agriculture mechanical technology has developed to a new level; With the development and improvement of agriculture mechanical technology and people’s living standard, the improvement of centrifugal juice extractor has become the consumer’s hot topic nowadays.This article introduced the research significance of centrifugal juice extractor, and the present research, also analyzed the development prospects of this machine, and narrated the work principle of the centrifugal extractor, also narrated the design process of single-phase series excitation type electric motor in double centrifugal extractor in detail. The centrifugal juice extractor, which was designed by my partners and I can satisfy our consumer’s demand uniquely and well, based on the principle of simple, convenient, practical and all for the consumer's benefit. Moreover, this machine get ride of the previous problem that is low juice rate, and unclear juice malpractice. The single-phase series excitation type electric motor fully manifested the automation, high efficiency, miniaturization, simplification, and the environmental protection.

Finally, I believed that this machine we designed which has the character of collection specialization, intellectualization, automation, high efficiency, miniaturization, simplification, environmental protection, and the security would be able to enter consumer's family soon.

Keywords centrifugal juice extractor, the choice of electromotor,

The design of rind, the design of squeeze parts

目前市场上各种品牌的钢管多功能加工机琳琅满目，但绝大多数钢管多功能加工机的主要结构、加工方式等都相似，通常大都采用外形、容积(搅拌容积或汁液杯的容积)和电机功率进行分类。按外形分，主要有座式、台式和手提式三种，目前以座式和台式钢管多功能加工机为主流机种，其实这两类钢管多功能加工机的外形比较相似，习惯称为台式钢管多功能加工机。按容积分，常见有0．5、0.6、0．7、0．8升等，容积大，一次可榨取的汁液多，但所需的电机功率也大，价格自然就较高。按电机功率分，主要有200W 、230W 、250W 、300W 、350W 等多种规格，普通座式和台式钢管多功能加工机常用200—300W 的串激电机。

2.2 钢管多功能加工机的现状分析

果汁工业化加工在国外已有百年的发展历史，已形成较完备的生产工艺，并开发有多种生产规模大、加工手段先进、产品质量优良的成套加工设备。

果汁生产的核心工序是加工工序，而钢管多功能加工机是加工工序的关键设备，钢管多功能加工机性能的优劣直接影响和决定着产品的质量、成本和加工企业的经济效益，其作用至关重要。因此，应客观、准确了解各种钢管多功能加工机的工作特点，以便做到正确、合理地选用，满足生产要求，以便尽快提高我国钢管多功能加工机的应用水平和制造水平,带动果汁加工业的发展,彻底解决种植业的原料加工问题。

以下是常用的几款钢管多功能加工机：

1）双锥盘钢管多功能加工机双锥盘钢管多功能加工机的钢管多功能加工机理是利用两个母线重合的伞状锥体的啮合滚动，使进入啮合区域的果糊受压，果汁通过伞状锥体表面的滤孔排出。但双锥盘钢管多功能加工机压榨时作用时间短，对浆状物料的夹持性能差，排汁面积相对较小，排汁孔大，因此不适用于家庭水果加工。

2）带式钢管多功能加工机? ? 带式钢管多功能加工机的工作原理是利用两条张紧的环状网带夹持果糊后绕过多级直径不等的榨辊，使得绕于榨辊上的外层网带对夹于两带间的果糊产生压榨力，从而使果汁穿过网带排出。带式钢管多功能加工机具有结构简单、工作连续、生产率高、通用性好、造价适中等特点，但带式钢管多功能加工机的主要缺点是加工作业开放进行，果汁易氧化褐变，卫生条件差；排汁不畅；网带孔隙易堵。

3）压板式钢管多功能加工机? ? 压板式钢管多功能加工机配置一个工作时旋转的圆柱形机筒，机筒的柱面上开有长缝用于汁液透过，机筒轴心装有一双向丝杠，丝杠上的转动带动机筒两端的圆形压板相向移动。压榨时物料用泵充入机筒内，压板由两端向中间移动挤压机筒内的物料，汁液通过机筒壁上的长缝排出，压榨结束渣从机筒中部的开口排出。但压板式钢管多功能加工机的压榨力较小，汁液的透过面积较低[5]。

2.3 对新型钢管多功能加工机设计的一般要求

目前我国的钢管多功能加工机普遍存在着出汁率低、出汁不清等问题，迫切需要进行结构改进和技术提高。?因此，新型钢管多功能加工机设计必须建立在提高工作效率，增加出汁率，提高果汁质量的基础上对原钢管多功能加工机在先前技术上的改进。同时还要尽可能使操作简单满足不同年龄段的消费者，并保证操作的安全性。在经济合理的前提下考虑能够实现综合利用，一机多用。与其他钢管多功能加工机产品相比，要求做到坚固耐用，安全可靠，使用维修方便。在满足设计技术要求的前提下，尽可能提高产品和零部件的标准化、系列化和通用化程度。

2.4 钢管多功能加工机的发展前景

同咖啡机、面包机、煮蛋器这些西式小家电一样，钢管多功能加工机相对传统的生活必需品而言，更多的价值体现在人们对精致生活的追求上。据了解到，目前钢管多功能加工机的消费群体主要有两类：一类是有孩子或老人的家庭，孩子容易挑食而老人牙齿不好，自己榨果汁可以满足他们摄入足够的营养；另一类是追求时尚及生活品位的年轻人，钢管多功能加工机满足了他们崇尚个性口味的需求。随着生活质量的提高，消费者的心态由最基本的生活需要开始向营养健康的品味生活过渡，这为钢管多功能加工机更加普及提供了可能。

据国家统计局资料，全国食品工业总产值1995年已上升为全国各行业之首。食品工业的可持续发展必然带动食品机械行业的发展，据统计1999年，全国专业食品加工机械约有2300多种已成机械工业的十大产业之一[4]。

据业内专家预测，中国小家电市场前景广阔，随着人们生活水平的提高，中国钢管多功能加工机市场会有很大的市场空间。

3 离心式钢管多功能加工机的总体设计方案

本次设计的是一种集智能化，自动化、高效化、小型化、简单化、环保化为一体的较先进的离心式钢管多功能加工机。整个装置的动力源采用一个250W的单相串激式电动机，空载转速是19000r/min。

3.1 钢管多功能加工机的基本结构

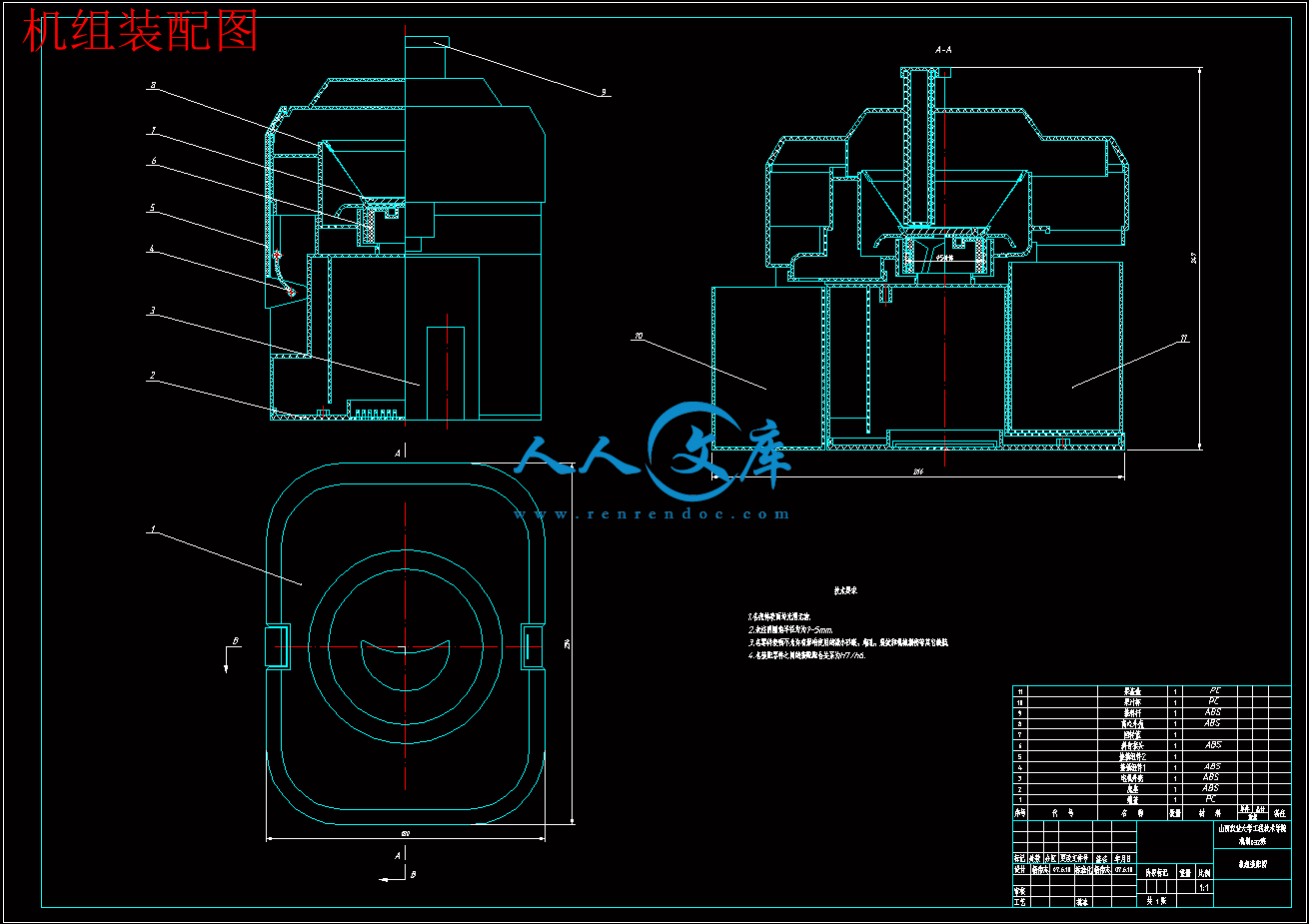

整机由钢管多功能加工机壳体、加工部件和电动部件三大部分组成。

3.1.1钢管多功能加工机壳体

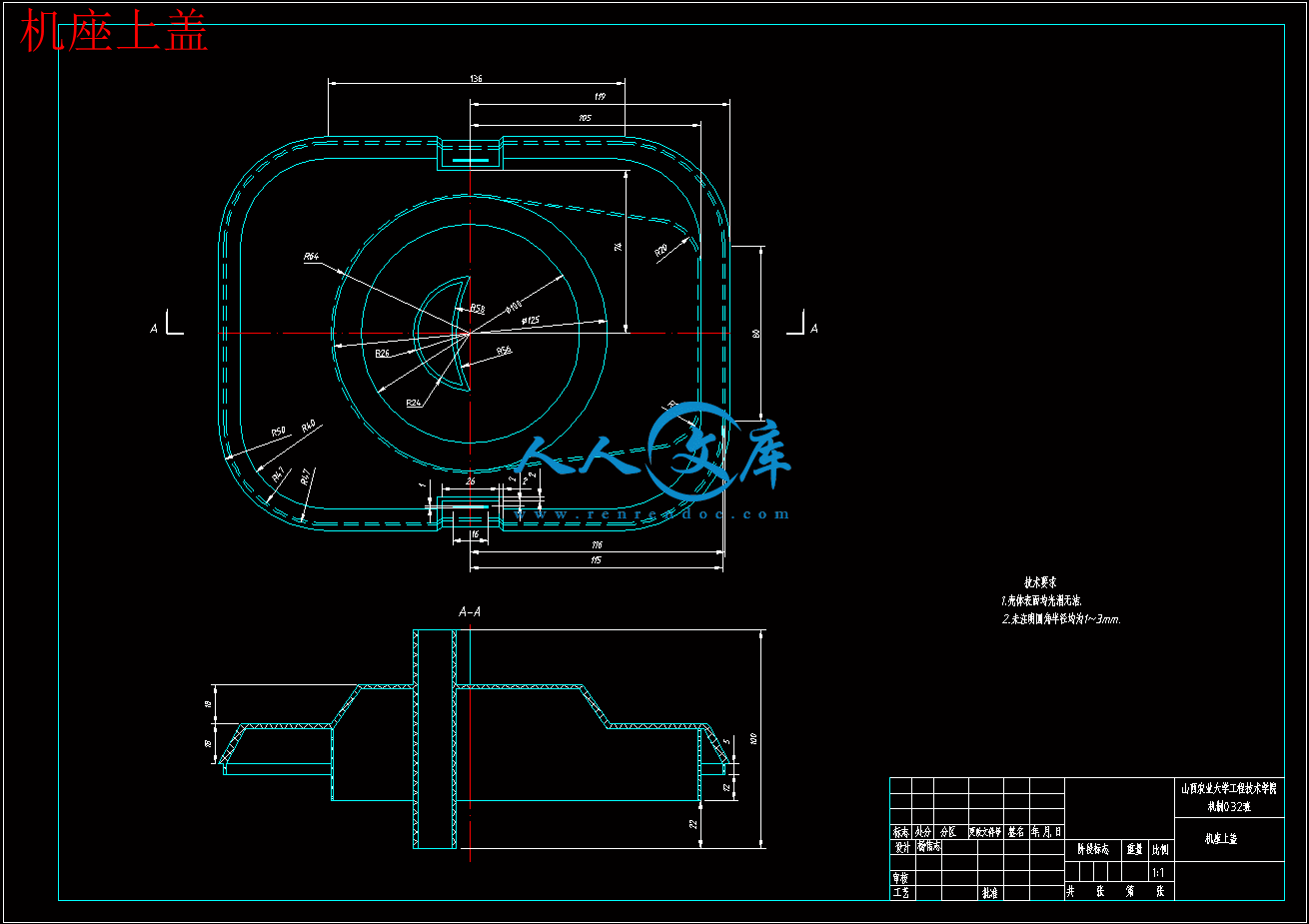

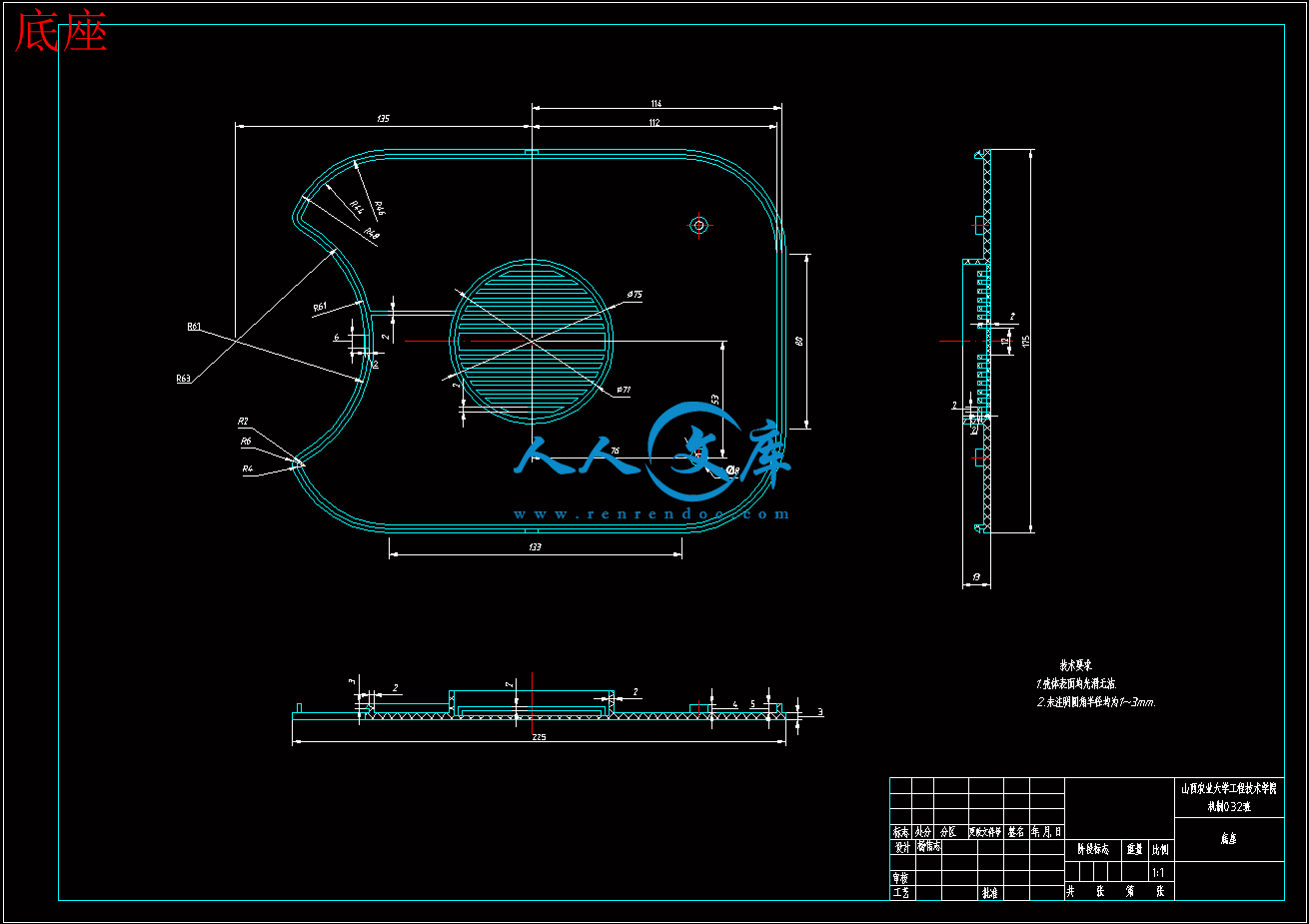

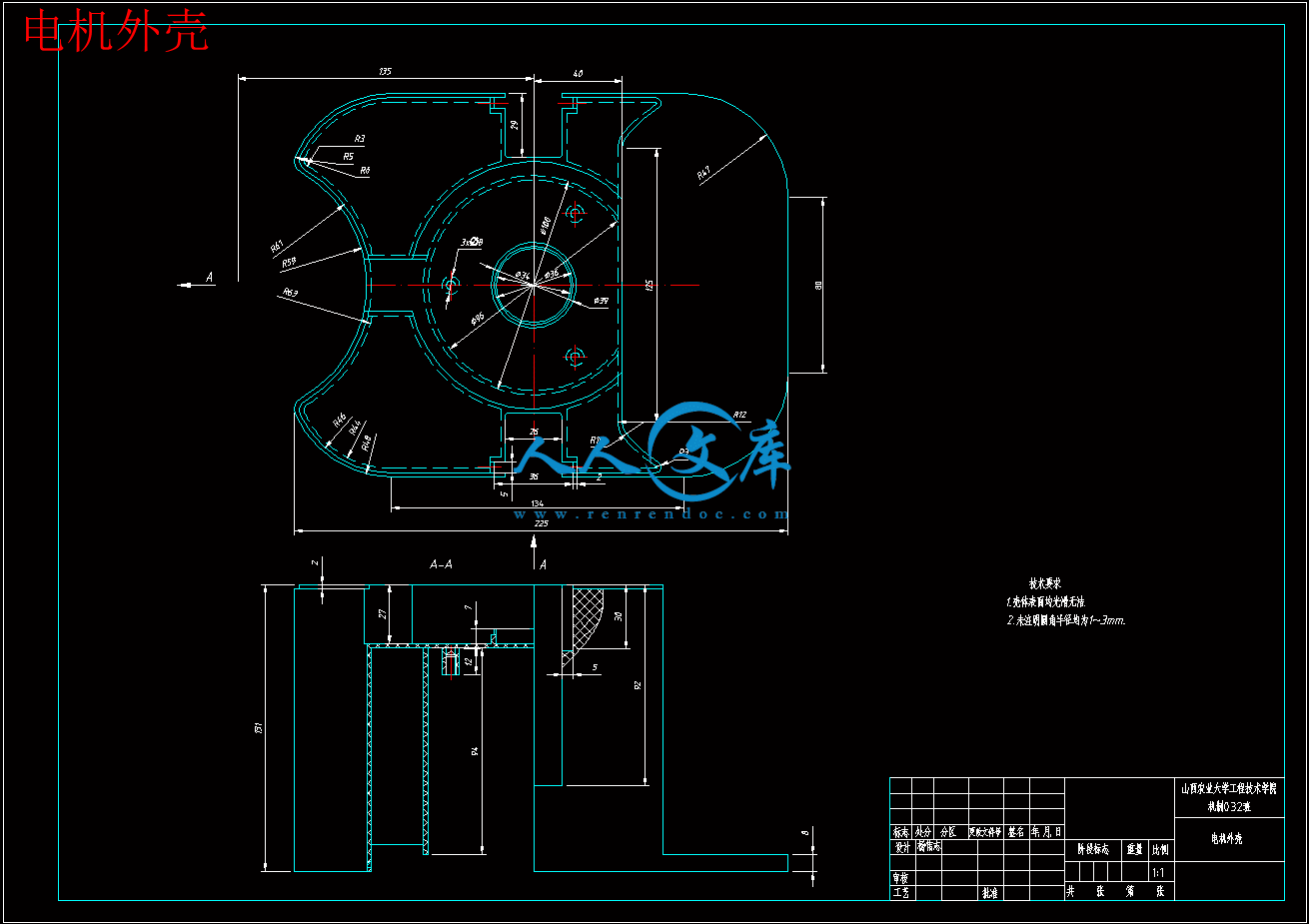

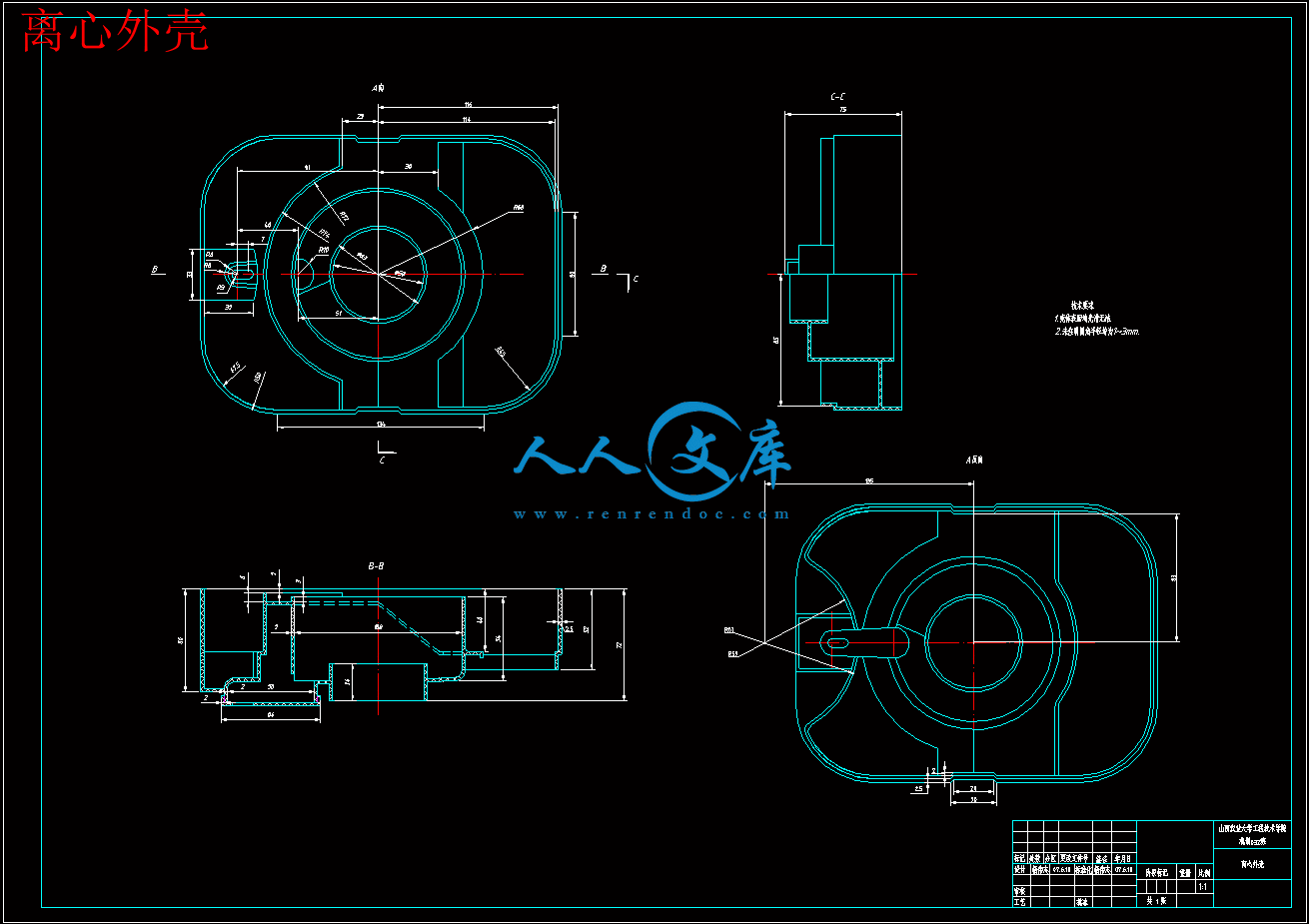

钢管多功能加工机壳体由端盖、离心外壳、电机外壳、底座、果汁杯、果渣盒等组成。端盖、果汁杯、果渣盒均由透明聚碳酸酯塑料制成具有强度高、耐冲击、不易碎等特点。离心外壳、电机外壳、底座则由工程塑料ABS制成，其特点是无毒、无臭、坚韧、质硬、刚性好。叶片加工刀安装在加工杯中央，用高铬不锈钢制成，刀轴下端装有斜齿轮轴伸，与电动机输出轴连接。

3.1.2加工部件

加工部件由粉碎刀片、金属过滤网等组成。刀片内有锋利的刀孔，经实验证明这种刀片能够更好地削碎水果。刀片由高铬不锈钢制成，采用斜齿轮轴伸与输出轴连接。

3.1.3电动部件

电动部件主要是为钢管多功能加工机提供动力，有250W单相交流串激式电机、输出轴、电机外壳、底座和电源开关等组成。串激式电机的结构如图1所示。整机由转轴、定子、定子绕组、转子、转子绕组、换向器和炭刷等组成。串激式电机的典型的特点是功率大、效率高、转速随负载力矩变化而变化，当负载减小时，串激式电机转速增加，最高可达19000r/min左右。为避免转速过高造成电机烧坏，一般不允许空载起动，同时也不宜加入太多水果，以免使电机超载而温升过高[8]。

3.2 离心式钢管多功能加工机的工作原理

? 离心式汁机可对果糊产生很高的离心力，可更好地完成水果和蔬菜的加工作业。离心钢管多功能加工机的主要工作原理是先利用刀片将水果片粉碎，然后利用高速旋转产生强大的离心力来分离果汁和果渣，果汁透过回转篮的金属网而流入果汁杯，果渣则被离心力甩出回转篮而进入果渣盒，它的工作流程是原料→选果→清洗→加工→破碎→离心→过滤→果汁和果渣。 3.3 总体设计要点

电动机的选择

加工部件的设计

?钢管多功能加工机壳体的设计

电机的选择

4.1 电动机的选择要求

合理的选择电动机是正确使用的先决条件。选择恰当，电动机就能安全、经济、可靠地运行；选择得不合适，轻者造成浪费，重者烧毁电动机。选择电动机的内容包括很多，例如电压、频率、功率、转速、启动转矩、防护形式、结构形式等，但是结合钢管多功能加工机的具体情况，需要选择的通常只是功率、转速、等几项比较重要的内容，因此在这里介绍一下电动机的选择要求。

电动机类型的选择要从负载的要求出发，考虑工作条件，负载性质、生产工艺、供电情况等，尽量满足下述各方面的要求：

1）机械特性

由电动机类型决定的电动机的机械特性与工作机械特性配合要适当，机组稳定工作；电动机的起动转矩、最大转矩、牵入转矩等性能均能满足工作机械的要求。

2）功率

电动机的功率，应根据生产机械所需要的功率来选择，尽量使电动机在额定负载下运行。避免出现“小马拉大车”现象或“大马拉小车”现象造成不必要的损失和浪费。

3）转速

电动机的转速满足工作机械要求，其最高转速、转速变化率、稳速、调速、变速等性能均能适应工作机械运行要求。

4）运行经济性

从降低整个电动机驱动系统的能耗及电动机的综合成本来考虑选择电动机类型，针对使用情况选择不同效率水平的电动机类型；对一些使用时间很短、年使用时数也不高的机械，电动机效率低些也不会使总能耗产生较大的变化，所以并不注重电动机的效率：但另一类年利用小时较高的机械，如空调设备、循环泵、冰箱压缩机等，就需要选用效率高的电动机以降低总能耗[7]。

5）价格低廉

在满足工作机械运行要求的前提下，尽可能选用结构简单、运行可靠、造价低廉的电动机。

4.2 电动机类型的选择
