人人文库网 > 图纸下载 > 毕业设计 > 小型自动分离大豆磨浆机的设计【优秀磨浆机机械设计+1张CAD图纸】

磨浆机装配图.dwg

小型自动分离大豆磨浆机的设计【优秀磨浆机机械设计+1张CAD图纸】

资源目录

小型自动分离大豆磨浆机的设计【优秀磨浆机机械设计+1张CAD图纸】.rar

磨浆机装配图.dwg---(点击预览)

小型自分离磨浆机的设计正文.doc---(点击预览)

小型自分离磨浆机的设计【副本】.doc---(点击预览)

【译文】工程机械搅拌设备用称重传感器的选型.doc---(点击预览)

【外文原文】Mechanical mixing equipment works with the selection of load cell.doc---(点击预览)

压缩包内文档预览：

编号：395895 类型：共享资源大小：1.21MB 格式：RAR 上传时间：2015-01-15 上传人：QQ14****9609 IP属地：陕西

25
积分

版权申诉 word格式文档无特别注明外均可编辑修改；预览文档经过压缩，下载后原文更清晰！ 立即下载

关键词：: 分离机大豆磨浆机机械设计小型自动分离大豆磨浆机的设计磨浆机机械设计

资源描述：

小型自动分离大豆磨浆机的设计

小型自分离磨浆机的设计

大豆磨浆机的设计

磨浆机的设计

小型自动分离大豆磨浆机的设计【优秀豆磨浆机机械设计+1张CAD图纸】

【带外文翻译+48页@正文17800字】【详情如下】【需要咨询购买全套设计请加QQ1459919609 】.bat

【外文原文】Mechanical mixing equipment works with the selection of load cell.doc

【译文】工程机械搅拌设备用称重传感器的选型.doc

小型自分离磨浆机的设计【副本】.doc

小型自分离磨浆机的设计正文.doc

磨浆机装配图.dwg

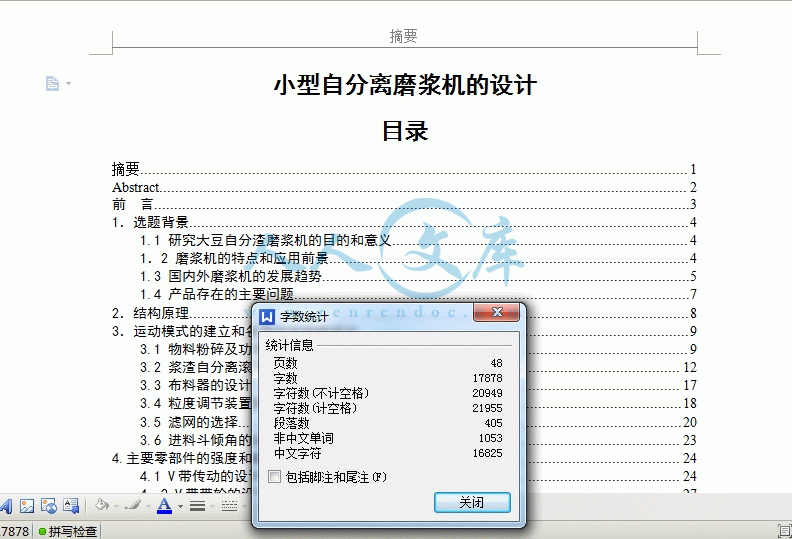

小型自分离磨浆机的设计

摘要1

Abstract2

前言3

1．选题背景4

1.1 研究大豆自分渣磨浆机的目的和意义4

1．2 磨浆机的特点和应用前景4

1.3 国内外磨浆机的发展趋势5

1.4 产品存在的主要问题7

2．结构原理8

3．运动模式的建立和各部件的结构设计9

3.1 物料粉碎及功率的计算9

3.2 浆渣自分离滚筒的设计12

3.3 布料器的设计17

3.4 粒度调节装置的设计18

3.5 滤网的选择20

3.6 进料斗倾角的设计23

4.主要零部件的强度和疲劳校核24

4.1 V带传动的设计与校核24

4．2 V带带轮的设计27

4.3 工作时两磨片间相对扭矩的计算30

4.4 磨片套的校核30

4.5 止推轴承的选择31

4.6 轴瓦的设计与选择31

4.7 确定轴承间隙选择相应的配合33

4.8 选择润滑剂与润滑方式33

4.9 螺钉的校核34

4.10 传动轴的设计35

5.常见故障及其排除方法37

6．试验方法和检验规则37

7. 标志、包装、运输、贮存38

结束语39

参考文献39

摘要

本课程主要是设计通用小型自动大豆磨浆机，国内的用户大多使用ML-125立式或MW-125卧式两种磨浆机加工豆浆，磨浆机产品作为食用制浆机械，其接触食品材料，如：料斗、拨料器、砂轮、出料口等均应采用无毒材料。随着同国际标准的接轨，国家卫生安全标准也将逐步提高。目前所使用的镀锌板等材料必将被淘汰，替代材料的选用应引起企业的高度重视。设计一种自动性能的磨机有着巨大的社会和经济效益，以及如何进一步改善其性能和扩大其应用范围，使小型大豆自分渣磨浆机能得到更好的发展，能更好为生产和生活服务。在产品的结构以及关键部件设计开发上，各企业需进一步加强技术理论研究和技术开发工作，目前磨浆机产品设计与制造，大多企业存在相互仿制情况，缺乏对产品进一步研究和开发。因此，设计一种新型高性能的磨浆机迫在眉睫。

【关键字】：磨浆机自动分离分渣卧式

Abstract

The course is primarily designed for universal small automatic soybeanmilling machine, Most domestic users to use ML-125 vertical or MW-125 Refiningtwo horizontal machining soya milk, Refiner products as food pulping machinery,food contact materials, such as : hopper, feeder allocated, Wheel, Discharging themouths of non-toxic materials shall be used. Along with the same internationalstandards of practice and national health safety standards will also gradually improve.Presently use the material such as galvanized sheet will be eliminated, the choice ofalternative materials enterprises should pay close attention. Design ahigh-performance mill has tremendous social and economic benefits, and on how tofurther improve their performance and widen its scope of application. Since the smallhours of soybean residue Refining function better development, better production andliving standards. In terms of product structure and the design and development of keycomponents, enterprises need to further strengthen technological theoretical researchand technological development work, and Refining Product Design andManufacturing, Most enterprises have mutual imitation, the lack of further researchand product development. Therefore, the design of a new type of high-performancemilling machine imminent.

【KeyworS】: Refiner Automatic Separation Jardine pm Horizontal

前言

大豆在我国被广泛种植，建国初期和国的大豆种植面积和产量均居世界第一位。2000年种植面积接近1.8亿亩，由此可见对大豆的综合开发利用有巨大的市场和经济价值。大豆类食品的营养极其丰富，其蛋白质含量为45%左右，脂肪含量是20%左右，碳水化合物含量是30%左右，它还含有丰富的矿物质和维生素等。大量的豆制品如：豆腐、腐竹等，越来越多的上了我们的餐桌。其豆浆被誉为东方牛奶，一杯豆浆和一根油条被称为中国人经典早餐。此外，人体所摄入蛋白质中的氨基酸，须有一定的比值。大豆蛋白质的氨基酸比值，比较接近人体的需要。它的赖氨酸含量高，蛋白质含量低，大豆配面食用，可大大提高膳食蛋白质的营养价值。大豆脂肪的不饱和脂肪酸含量高达85%以上，有很好的降血脂、保护心、脑血管的作用。新近美国一项分析表明，每人每天摄入30^50克大豆能显著降低血脂蛋白胆固醇、三酞甘油水平，而不影响高密度脂蛋白胆固醇水平。大豆脂肪中含有1.8%^-3.2%的磷脂，能降低血液中胆固醇含量和血液粘度，促进脂肪吸收，有助于防止脂肪肝和控制体重，并且有溶解老年斑、促进腺体分泌等多种功能。大豆神奇的降脂作用还与血脂水平高低有关，血脂水平越高，大豆I*0作用越显著。食用大豆，需要合理地加工和烹调，方能提高其消化吸收率。据分析，大豆中粗纤维含量为4.8%,多聚树胶糖、多聚半乳糖和半乳糖醛酸结合形成的半纤维素含量约10%左右，它们存在于大豆的细胞膜中，影响人体消化系统对大豆营养的吸收消化。但若对大豆进行加工，如磨成豆浆或做成豆腐等，则它的粗纤维及半纤维素构成的细胞膜被破坏，消化吸收率就可以大大提高。其加工设备也由传统的人力石磨发展到机械的钢磨和砂轮磨，其分渣模式也由混合式分渣发展到现在自分渣，大大提高了其工作效率。目前，国内的用户大多使用ML-125立式或MW-125卧式两种磨浆机加工豆浆，这两种磨浆机的共同点是：1、只能将膨润的豆料磨成豆糊状，然后再人工滤浆，劳动强度大，工作效率低；2,遇到少数泡不涨的硬芯或沙粒时，电机负荷增大易磨损磨浆机的磨片。因此，设计一种高性能的磨机有着巨大的社会和经济效益，下面这种CD-200卧式自分渣磨浆机的不仅能很好的解决上述问题且结构紧凑，适应强，使用方便。

参考文献

[1] 西北工业大学机械原理及机械零件教研室编，纪名刚主编．机械设计．第六版．北京：高等教育出版社，1996

[2] 邱宣怀主编．机械设计．第四版．北京：高等教育出版社，1997

[3] （美）希格利J E,米切尔L D著．机械工程设计．余永见、余长庚等译．北京：高等教育出版社，1988

[4] 郑林庆．摩擦学原理．北京：高等教育出版社，1994

[5] 章日晋等编．机械零件的结构设计．北京：机械工业出版社，1987

[6] 唐增宝，何永然，刘安俊，机械设计课程设计（第二版），华中科技大学出版社，1995.3

[7] 席伟光，杨光，李波，机械设计课程设计，高等教育出版社，2003.2

[8] 毛广卿，刘玉兰，王志山，吴建章，粮食输送机械与应用，科学出版社，2003.8

[9] 北京农业工程大学主编，农业机械学，中国农业出版社，2002.1

[10] 濮良贵，纪名刚，机械设计（第六版），高等教育出版社，1996

[11] 吴克坚，于晓红，钱瑞明，机械设计，高等教育出版社，2002.3

[12」李宝筏，农业机械学，中国农业出版社，2003.2

[13] 刘鸿文，材料力学（第四版），高等教育出版社，2004.1

[14] 王树蓉，新型豆类原料选洗机，农牧渔食品机械，1993年第五期

[15] 成大先，机械设计手册（第四版），化学工业出版社，2002

[16] 《现代机械传动手册》编辑委员会编，现代机械传动手册，机械工业出版社，1995

[17] 朱龙根，机械系统设计，机械工业出版社（第二版），机械工出版社，2001

[18] 厄尔德曼，桑尔多著，机构设计，装细荣等译，高等教育出版社，1992

[19] 扎布隆斯基著，机械零件，余梦生，欧宗瑛，吴宗泽译，高等教育出版社，1990

[20] 垄桂义，机械设计课程设计图册，高等教育出版社，1996

[21] 张裕中，食品加工技术装备，中国轻工业出版社，2000.3

[22] 李贵轩，设计方法学，世界图书出版社，1989.7

[23] 陆震傣，陆守道，食品机械原理与设计，中国轻工业出版社。1995.5

[24] 覃小斌，王士虎，张卉，许永年，工程制图，中央广播电视大学出版社，1997.7

[25] 钟志华，周彦伟，现代设计方法，武汉理工大学出版社，2001.8

[26] SMC Pneumatics(UK)Ltd.Pneumatic Technology.London.1991

[27] R.keith Mobley. Fluid Power Dynamics,Copyright c 2000 by utterworth-Heinemann.

[28] James L.Johnson.Introduction to Fluid POWer,DELMAR THOMSON LEARNING

[29] William W. Reeves.Technology of Fluid Power,Delmar Publishers.

[30] Anthony Esposito. Fluid Power with Applications. 6th Edition. New Jersey.2003




内容简介：: Mechanical mixing equipment works with the selection of load cell This paper engineering machinery mixing equipment weighing system and the basic requirements for special requirements, proposed construction machinery mixing equipment weighing system used to be considered when the sensor several issues, the focus of sensor protective structure on the construction machinery mixing equipment reliability of operation, pointing out that the code generation IP Table protective levels can not cover mechanical mixing equipment works full protection of the sensor requirements. Recommendations different types of mixing equipment selection of different defensive capabilities of the sensor. Weighing System sensors normally used in the weighing system to consider the amount of limited accuracy, sensor installation space, the environment may affect the sensor, load and the type of sensor, such as the life span of various factors. Engineering machinery mixing equipment weighing system is no exception. The weighing system is different because of different demands, different working conditions, to be considered by focusing on different issues only. Engineering machinery mixing concrete mixing equipment usually include floor (stations), the asphalt mixing plant, stabilized soil mixing concrete mixing plants and ships at sea, mixing them with concrete floor (stations) the most typical. Below the concrete mixing plant (stations) as an example for analysis. 1 concrete mixing plant (station) on the basic requirements Weighing System 1.1 accurate weighing error on the strength of concrete is strongly influenced, in particular water-cement ratio measurement precision, because strength and water-cement ratio is linear. The relevant national standards, cement, water, additives, the admixture of dynamic measurement accuracy of 1%, sand, stone dynamic measurement accuracy of 2%. 1.2 Quick meet mixing station duty cycle requirements. 1.3 variety that money to the type of pre-selection, to facilitate the transformation to adapt to a variety of different ratio and capacity requirements. 1.4 simple structure weighing devices to simple structure, solid and reliable, stable performance, easy operation. Clearly, the use of electronic weighing system sensor machinery weighing more than meet the requirements. Therefore, the load cell floor in the concrete mixing stations to be more widely used. However, objectively speaking, compared with the mechanical lever scales in the solid and reliable, stable performance, as a sensor electronic weighing system has much work to do. 2 concrete mixing stations floor in the load cell operating conditions For commerce and the general measurement of electronic scales a great difference is, in concrete mixing stations floor load cell in a very adverse operating conditions, stress environment is very complex, and the general electronic products compared to the operating environment, a greater randomness. 2.1 ambient temperature and humidity Concrete mixing station is normally open floor installation, sensor may be subject to the sun and rain, temperature dramatic changes. And many construction projects are in very bad natural conditions in the mountains or remote areas. Therefore, we must consider greater temperature range and higher humidity conditions. Concrete in the production process needs water. In the delivery of water and weighing process and also have a lot of water in the gas, in some form within relatively small humid environment. Stir in the temperature control in the House, there are high-temperature and low-temperature conditions of the different requirements of condition. Running in the summer when low-temperature condition to the zero-below cold wind and加冰stirring, then building a condensed water will be well demonstrated high humidity building. 2.2 dust Concrete in the production process requires a large amount of cement, coal ash and the appropriate amount of admixture. These were in the transportation and powder weighing process will produce dust. Even the aggregate, in the course of transmission have also dust. Some of these dust sensor will be attached to the surface. The dust and water vapor in the common role, the sensor will be more serious corrosion. Therefore, the damage powder weighing sensors usually weigh than the other sensors more frequently. 2.3 Shock and Vibration In the feed process, the impact of aggregate will have. Sensors should be able to bear 5 g acceleration. Stir in the process, will have sustained vibration, and vibration would have fatigue damage. 2.4 man-made environment Man-made environment is the product reliability design one of the factors that must be considered. Concrete Mixing floor installed at the construction site in general. Large-scale use of temporary workers on site, of which a considerable number of temporary low level of education, lack of the necessary skills. In terms of facilities, such as the maintenance and cleaning work, the sensor may be in the high-pressure water sputtering, misoperation caused overload, and so on. Clearly, the sensor should be in such an environment and a long-term reliable under the conditions of the operation is to carry out some special design. These basic requirements and operating conditions can be used as concrete mixing plant (stations) by the load cell selection basis. Three concrete mixing plant (stations) to use when weighing sensor to be considered by the Selection Problems 3.1 weighing sensor payload capacity determination Weighing sensor payload capacity usually Hopper sensor rated load = + rated themselves that weight (0.6 0.7) only a few sensors In fact people in the choice of sensor integrated capacity even when they consider the size and impact load selected safety factor. Safety factor with the choice of sensor sensitivity closely related. Domestic and foreign common strain load sensor sensitivity majority of 2 mV / V, but there are 1 mV / V, such as column sensor; Also 3 mV / V, as some cantilever sensor and sensor plate Central; Twisted ring sensor usually 2.85 mV / V. Stir upstairs in the use of sensors are basically 2 mV / V. 3.2 weighing the choice of sensor accuracy The choice of sensor accuracy of the weighing system to meet the accuracy requirements, is not one-sided pursuit of the high level sensor accuracy. In multi-sensor combination used only when its integrated error r = / n Where, only a single sensor accuracy, the use of combinations of n is only a few sensors. Currently stirring upstairs popular S-type sensor, the cantilever sensor, the sensor plate ring, linear, hysteresis, repeatability, and temperature sensitivity effects of creep, and other key indicators vast majority of manufacturers are is better than 0.05%, the majority of manufacturers better than 0.03%, some manufacturers better than 0.02%. Its integrated single sensor error of close to or better than 0.1%. Multi-sensor combination only after its integrated error even smaller. It can be said that the general load cell manufacturers of products to meet the requirements. Previously, many manufacturers stirring floor, its provisions static accuracy of the weighing system, respectively 0.1% and 0.3% respectively. Thus, the use of single-sensor weighing only, individual indicators of 0.05% of the sensor will satisfy 0.3% precision weighing requirements. The use of three over the weigh-sensor, single indicators 0.05% sensors can also meet 0.1% accuracy requirements. It must be pointed out is that the accuracy of the weighing system is static precision, while the concrete is the national standards require dynamic accuracy, which is due to the constant weighing of raw materials for the material in the body of gravity weighing the impact of errors increased significantly. Above 0.1% and 0.3% respectively, the ability of static accuracy reached 1% and 2% of the dynamic accuracy for feeding system with the design. Now, many manufacturers provisions of the accuracy of its weighing system in the 0-rated weighing that money within the cement, water, additives 1%, sand, stone 2%. Notes, ready-mixed concrete national standards require that physical measurement accuracy, and general measurement instruments 0 20% of the relative error greater, or concrete mixing plant (station) provides the industry standard in the 20 100% of the weighting of the meet cement, water, additives 1%, sand, stone 2% of the more practical measures to allow some deviation. A more reasonable approach is the use of precision weighing instrument tagging industry terminology to express that as a cumulative hopper scales should be used in automatic weighing accuracy of the grading marks 1.0 and 2.0. Such scale test project in line with the purposes, including both materials testing (determining the accumulated error) also includes static test. Automatic Weighing at its maximum allowable error in Table 1. Criteria used in a static load test and non-automatic weighing, should meet the requirements in Table 2. Usually 1.0 weigh design for the 1000 points, 2.0 Balance of design for 500 points. We can see that the range in the high-1.0 scale error is 0.15%, 2.0 Balance of error is 0.3%, not manufacturers than before provisions of 0.1% and 0.3% static high accuracy. But in the low range of accuracy is indeed increased. Under such circumstances the need to confirm the selection in the low range of the sensor can also meet the requirements. According to weigh the degree of choice of the simplest sensor is 1,000 points method of selection of 1000 at the weigh-in sensors, 500 hours of the weigh-selection 500 points of the sensors. National standards in weighing sensor accuracy is to use the degree to express, but because of various reasons, most production plants that still use single indicator sensor accuracy. According to individual users to calculate indicators integrated precision error. Choose up trouble point. The concrete mixing of foreign developed countries floor general with precision weighing system to the degree that, in the 1000 Indexing. They may be related to the use of high-performance concrete high proportion of the. As the economy and the continuous development of technology, ultra-high-rise building, long bridges, large-scale water conservancy projects, as well as other exposed to the harsh environment in the construction of concrete performance raised higher and higher demands, concrete technology has also entered the high-tech age, the proportion of high-performance concrete continuous improvement. In addition to producing high-performance concrete correct selection of raw materials, determine a reasonable process parameters, the construction technology of control is also very important. Stir ingredients in the concrete floor, the accuracy of the system is important. 3.3 sensor structure forms of choice Commonly used a pull-type S-shaped sensors, the plate center ring and ring cruciate tendons, such as plate. Cross center ring reinforcement plate high accuracy sensors, anti - partial contains excellent performance, but higher prices are normally only used in high-precision measurement occasions. Mixing upstairs is commonly used S-type sensors and sensor plate Central. S-type sensor which its high accuracy, anti - partial-carrying capacity, at the same time can bring overload protection, the wide range of use of the advantages of the largest. Popular pressure sensor of a cantilever beam, Spoke, column, bridge, such as ring-twisting. Considered accuracy, range of installation, price and other factors, the vast majority of production plants to choose stirring floor of the cantilever. 3.4 load type of consideration Concrete production mainly uses sand, gravel, cement and water, additives, admixture. Several materials weigh the impact of a few stone as the greatest. In the large family of electronic scales, such is not the greatest impact, the sensor can generally bear overload situation. From the author of the survey, the sensor overload and damage due to the situation from time to time. For example, a control system fault, causing heavy material disposal and the next, causing overload. Also the use of human factors during the overload, especially the small range sensor for the operator stampede Scale Frame and overload damage things happen from time to time. Therefore sensor, sensors whether Weighing System Overload Protection for the reliable operation of a certain influence. Sensor performance indicators have two with this, first allowing overload, first limit overload. Allow overload refers to shed the load, sensor performance indicators unchanged. Limit overload refers to the load sensor does not produce harmful permanent mechanical deformation. General overload sensor allows for 150%, and overload limit in 200% 300%. Some of the sensor with overload protection are likely to exceed the scope of one. Sensors such as Putian factory CFCKN-1 - because of their special sensor design, allowing the load as high as 500%. Such frequent overload sensor in the case can reliably work. 3.5 sensor protection rating Sensor IP protection levels that are usually used. General sensor manufacturers said their products have reached IP67 level, a small number of manufacturers of some products to IP68 level. We know that the IP code is expressed by not more than 72.5 kV voltage electrical products protective shell of grading. National standards GB4208-93 shell protection levels, IP67 means the product can dust, and against short-term immersion; IP68 means the product can dust, and against continued diving impact. It must be pointed out is that such protection does not include mechanical damage, corrosion, or external influences such as humid environmental conditions. Usually involving such protection provided by the relevant product standards. Weighing sensors and general electrical products and secondary products of different instruments, it is also a force component in the operation of constantly being produced and the role of deformation. There is also likely to be shock, impact or impact such a mechanical damage, dust and water vapor to the more common under severe corrosion and in extremely humid conditions running. This is GB4208-93 under the test conditions are quite different. Have encountered such a situation: a weigh-ore mines on selected imports sensor, a large steel ladle weigh on the selection of an internationally renowned brands sensors, are welded, sealed and very beautiful, to IP68 level. But in actual life very short scene. In the last resort circumstances, the trial of Putian sensor plant products. The accident came as the result of their service life in excess of imports sensor. One in a large steel ladle weigh on the sensor has been in operation for seven years, are still running. In these two examples, the fact is the protection of distinction. First, there were still no shell casing; Second, weld design. Third, sealing materials. Generally speaking, the design is better than no shell casing design; The design of the weld seam should be avoided as far as possible by force. In the unavoidable circumstances, will have to check weld strength, in particular the fatigue strength. Fatigue cracks are caused minor tidal lead entry, the important reasons for sensor failure. The aforementioned welding of a world-renowned brand sensor at the scene sealed the reasons for the short life of excessive reliance on the welding is sealed, the internal strain tablets only a thin plastic seal level, once weld cracks, moisture sensor on the role in the rapid failure. In sealing materials need to be reminded that, through IP67 half-hour soaking test sensors may not be able to know, sensor-standard damp heat in the 12-cycle test. Subject to the impact of price competition, many canceled sensor plant protection frames, pull-type sensor is even worse. The current domestic production of S-type sensor, the sensor plate Central almost canceled shell. Indeed, on many occasions there is nothing wrong with doing so. However, in such a concrete mixing plant environmental conditions, may not be the best choice. I plant for the design of the Three Gorges Project mixing plant production CFCKN-1 Case closure welding sensor service life up to 10 years. We
