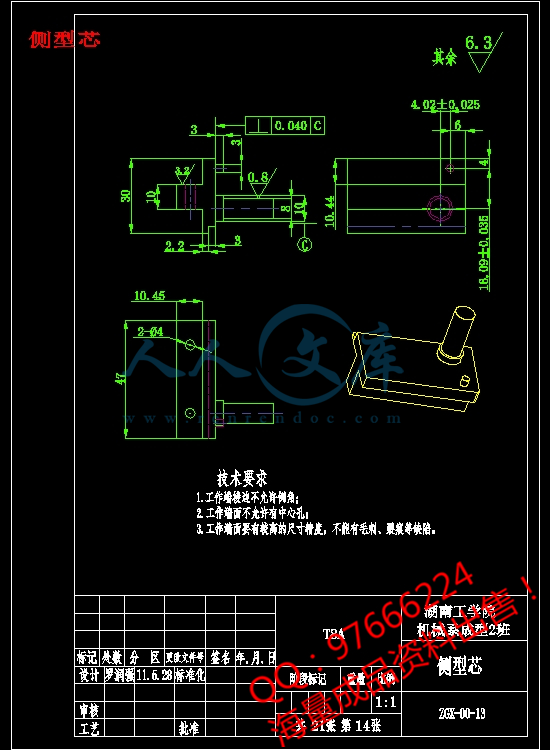

侧型芯.dwg
动模仁.dwg
动模座板.dwg
垫块.dwg
复位杆.dwg
定位圈.dwg
定模座板.dwg
导柱.dwg
拉料杆.dwg
推杆.dwg
推板.dwg
推板固定板.dwg
推板导柱.dwg
支承板.dwg
斜导柱固定板.dwg
斜滑杆.dwg

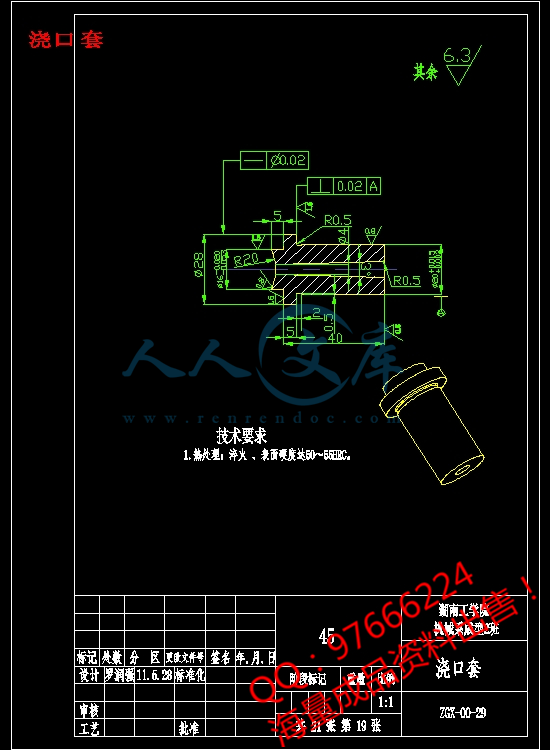

浇口套.dwg

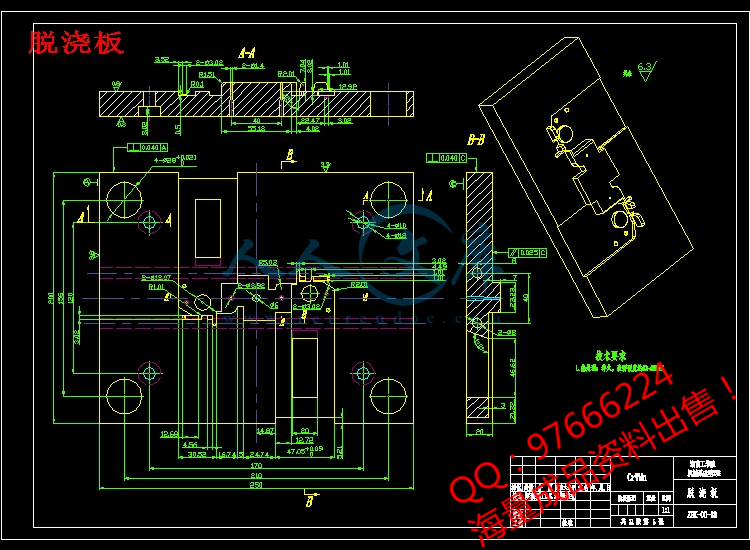

脱浇板.dwg
装配图.dwg
镶块1.dwg
零件图.dwg
压缩包内文档预览:

资源预览需要最新版本的Flash Player支持。
您尚未安装或版本过低,建议您

!【详情如下】【注塑塑料模具课题】CAD图纸+word设计说明书.doc21000字,53页【需要咨询购买全套设计请加QQ97666224】.bat侧型芯.dwg动模仁.dwg动模座板.dwg垫块.dwg复位杆.dwg定位圈.dwg定模座板.dwg导柱.dwg拉料杆.dwg推杆.dwg推板.dwg推板固定板.dwg推板导柱.dwg支承板.dwg斜导柱固定板.dwg斜滑杆.dwg浇口套.dwg翻译设计说明书.doc21000字,53页脱浇板.dwg装配图.dwg镶块1.dwg零件图.dwg目 录1   前言12  绪论22.1概述22.2我国塑料模现状22.3 我国塑料模的发展趋势33 塑件成型工艺分析53.1 塑件图53.2 塑件工艺分析53.2.1 精度等级53.2.2 脱模斜度53.2.3 塑件圆角63.3 ABS塑料性能特性与工艺参数63.3.1 ABS化学与物理特性63.3.2 ABS塑料的成型条件74 拟定模具结构形式84.1 型腔数目的确定84.2 分型面的选择95注塑机型号的确定115.1 注塑容量的计算115.2锁模力的计算115.3 注塑机的选用125.4 有关参数的校核135.4.1由注塑机料筒速率校核模具的型腔数135.4.2 注射压力的校核135.4.3 锁模力的校核135.4.4 开模行程的校核146 浇注系统的设计146.1 主流道的设计156.2 分流道的设计176.3 冷料穴的设计196.4 浇口的设计206.4.1浇口类型的选择206.4.2 浇口尺寸的确定226.4.3 浇口剪切速率的校核236.5 排气系统的设计237 成型零件设计237.1 成型零件的结构设计247.2 成型零件钢材的选用257.3 成型零件工件尺寸的计算267.4 型腔壁厚和底板厚度的计算297.4.1 侧壁厚度计算297.4.2 底板厚度计算308 模架的确定329 导向机构的确定3210 脱模机构的设计3410.1 脱模力的计算3410.2 脱模机构的结构设计3511 侧向抽芯的设计3711.1 抽芯距与抽芯力的计算3711.2 斜导柱圆形截面直径的计算4011.3 斜导柱圆长度的计算4011.4 斜滑杆的设计4112 模温调节系统的设计4212.1 冷却系统的设计4213 数控程序的编制4714 设计小结49参考文献50致    谢511   前言模具是工业生产的基础工艺装备,被称为工业之母。75%的粗加工工业产品零件、50%的精加工零件由模具成型,绝大部分塑料制品也由模具成型。作为国民经济的基础工业,模具涉及机械、汽车、轻工、电子、化工、冶金、建材等各个行业,应用范围十分广泛模具技术水平已成为衡量一个国家制造业水平的重要指标。现代工业需要先进的模具设备和高技术人才。 目前国内模具技术人员短缺,要解决这样的问题,关键在于职业培训。我们作为踏入社会的当代学生,就应该掌握扎实的专业基础,现在学好理论基础。本设计是以适应企业技术的发展,能体现出在学校所学,能体现先进性和前瞻性,所涉及到的知识包括注塑成型基本原理、注塑工艺方案的确定、工艺规程编制、模具结构设计、模具材料的选择、压力机的选择、模具制造方法等。希望通过对这些知识的学习,能使自己掌握模具加工的核心技术,了解周边技术和跟踪前沿技术。希望能通过这次设计,能掌握模具设计的基本方法和基本理论。本次设计得到了张蓉副教授的指导,同时也非常感谢湖南工学院的各位老师的教诲。    由于学生的理论学习和实践经验有限,设计中存在的不足之处和错误还肯请各位教授、专家批评指正。谢谢!
编号:479254    类型:共享资源    大小:2.15MB    格式:ZIP    上传时间:2015-10-07 上传人:小*** IP属地:福建
45
积分
关 键 词:
壳体 侧抽芯 注塑 设计 优秀 优良 21 cad 图纸 塑料模具 全套 毕业设计
资源描述:

!【详情如下】【注塑塑料模具课题】CAD图纸+word设计说明书.doc[21000字,53页]【需要咨询购买全套设计请加QQ97666224】.bat

侧型芯.dwg

动模仁.dwg

动模座板.dwg

垫块.dwg

复位杆.dwg

定位圈.dwg

定模座板.dwg

导柱.dwg

拉料杆.dwg

推杆.dwg

推板.dwg

推板固定板.dwg

推板导柱.dwg

支承板.dwg

斜导柱固定板.dwg

斜滑杆.dwg

浇口套.dwg

翻译

设计说明书.doc[21000字,53页]

脱浇板.dwg

装配图.dwg

镶块1.dwg

零件图.dwg

目 录


1   前言1

2  绪论2

2.1概述2

2.2我国塑料模现状2

2.3 我国塑料模的发展趋势3

3 塑件成型工艺分析5

3.1 塑件图5

3.2 塑件工艺分析5

3.2.1 精度等级5

3.2.2 脱模斜度5

3.2.3 塑件圆角6

3.3 ABS塑料性能特性与工艺参数6

3.3.1 ABS化学与物理特性6

3.3.2 ABS塑料的成型条件7

4 拟定模具结构形式8

4.1 型腔数目的确定8

4.2 分型面的选择9

5注塑机型号的确定11

5.1 注塑容量的计算11

5.2锁模力的计算11

5.3 注塑机的选用12

5.4 有关参数的校核13

5.4.1由注塑机料筒速率校核模具的型腔数13

5.4.2 注射压力的校核13

5.4.3 锁模力的校核13

5.4.4 开模行程的校核14

6 浇注系统的设计14

6.1 主流道的设计15

6.2 分流道的设计17

6.3 冷料穴的设计19

6.4 浇口的设计20

6.4.1浇口类型的选择20

6.4.2 浇口尺寸的确定22

6.4.3 浇口剪切速率的校核23

6.5 排气系统的设计23

7 成型零件设计23

7.1 成型零件的结构设计24

7.2 成型零件钢材的选用25

7.3 成型零件工件尺寸的计算26

7.4 型腔壁厚和底板厚度的计算29

7.4.1 侧壁厚度计算29

7.4.2 底板厚度计算30

8 模架的确定32

9 导向机构的确定32

10 脱模机构的设计34

10.1 脱模力的计算34

10.2 脱模机构的结构设计35

11 侧向抽芯的设计37

11.1 抽芯距与抽芯力的计算37

11.2 斜导柱圆形截面直径的计算40

11.3 斜导柱圆长度的计算40

11.4 斜滑杆的设计41

12 模温调节系统的设计42

12.1 冷却系统的设计42

13 数控程序的编制47

14 设计小结49

参考文献50

致    谢51



1   前言


模具是工业生产的基础工艺装备,被称为工业之母。75%的粗加工工业产品零件、50%的精加工零件由模具成型,绝大部分塑料制品也由模具成型。作为国民经济的基础工业,模具涉及机械、汽车、轻工、电子、化工、冶金、建材等各个行业,应用范围十分广泛

模具技术水平已成为衡量一个国家制造业水平的重要指标。现代工业需要先进的模具设备和高技术人才。

目前国内模具技术人员短缺,要解决这样的问题,关键在于职业培训。我们作为踏入社会的当代学生,就应该掌握扎实的专业基础,现在学好理论基础。本设计是以适应企业技术的发展,能体现出在学校所学,能体现先进性和前瞻性,所涉及到的知识包括注塑成型基本原理、注塑工艺方案的确定、工艺规程编制、模具结构设计、模具材料的选择、压力机的选择、模具制造方法等。希望通过对这些知识的学习,能使自己掌握模具加工的核心技术,了解周边技术和跟踪前沿技术。希望能通过这次设计,能掌握模具设计的基本方法和基本理论。

本次设计得到了张蓉副教授的指导,同时也非常感谢湖南工学院的各位老师的教诲。

   由于学生的理论学习和实践经验有限,设计中存在的不足之处和错误还肯请各位教授、专家批评指正。谢谢!


内容简介:
