UVLED light source curing system

1、UV-LED光源照射系统 HTLD-4 UV-LED light source curing system HTLD-4 深圳市海特奈德光电科技有限公司成立于2011年6月，由几个从事紫外固化多年的专家组成，国内较早生产、销售 LED式紫外线照射机系统,有着丰富的产品开发和应用经验。Shenzhen Height-led tech Co.,LTD founded at June 2011,has a very professional expert team,proud of long term experience of design ,application,sales in the LE

2、D UV irradiation equipment industry.本UV-LED点光源照射机设备采用LED发光方式，可选择365nm、385nm、395nm、405nm波长的不同功率的LED，对应不同UV胶水、UV油墨、UV光油、UV油漆等，同时对应不同材质要求。This equipment is designed with LED emitting from 365nm to 405nm, every 10nm a LED,corresponding different UV glue,UV ink,UV gloss oil, UV paint,can meet different r

3、equest for different material. 紫外线LED光源照射机，高纯度照射，没有热辐射和深度紫外光的影响，使用寿命长，且采用电缆输出，为您减少设备耗材成本，同比UV-LAMP功率消耗低，不含汞物质，是一款节能环保的新型产品，让产品的UV固化更快速、更高效、更绿色、更安全、更环保。Long-term service life, output by cable, just need less supplies cost of equipment, is a new energy-saving products. Its small volume design, conveni

4、ent to integrate production, make the illumination safer, more efficient and environment-friendly.主要特性：Main features: NEW ！ 新 ！ 通用设计，液晶显示，操作直观 Standardized design, Liquid crystal display, simply operation固定功率，阶梯功率，完美体现 Fixed power, ladder power,easily understand脚踏控制，人工自动，轻松掌控Pedal control, manual au

5、tomatic,easily operationI O信号，配合PLC自动化生产流程 IO signal, cooperate with automatic produce 直接COM，方便外围通信Direct COM, make signal communicate available照射功率时间倒计时数字显示，直观方便了解照射进程 Irradiation time count down display, make it easy to understand the irradiation status界面参数设置锁定，防止错按造成不良 Lock option for the paramet

6、er input interface, avoid miss operation自动检索，更有出错报警提示 Automatic check,error alarm is equipped with照射过程中轻松查询通道UV照射进程 You can easily understand the irradiation status within the irradiation process 热辐射小,照射机采用发光部件UV-LED电功率，光谱波长为365nm，无红外光发出，所以被照射产品的表面没有温度的升高 Small thermal radiation, electric power for

7、UV-LED light-emitting part is 3W, the wave crest is 365nm, no infrared light issued, so the surface of the irradiated product have no temperature rise. 发出高能量高纯度紫外光，采用最新的高能量紫外线LED, 快速完成紫外线胶水的固化, 大幅度提高生产效率 issue of high-energy UV light with high purity, using the latest high-energy UV LED, UV glue cur

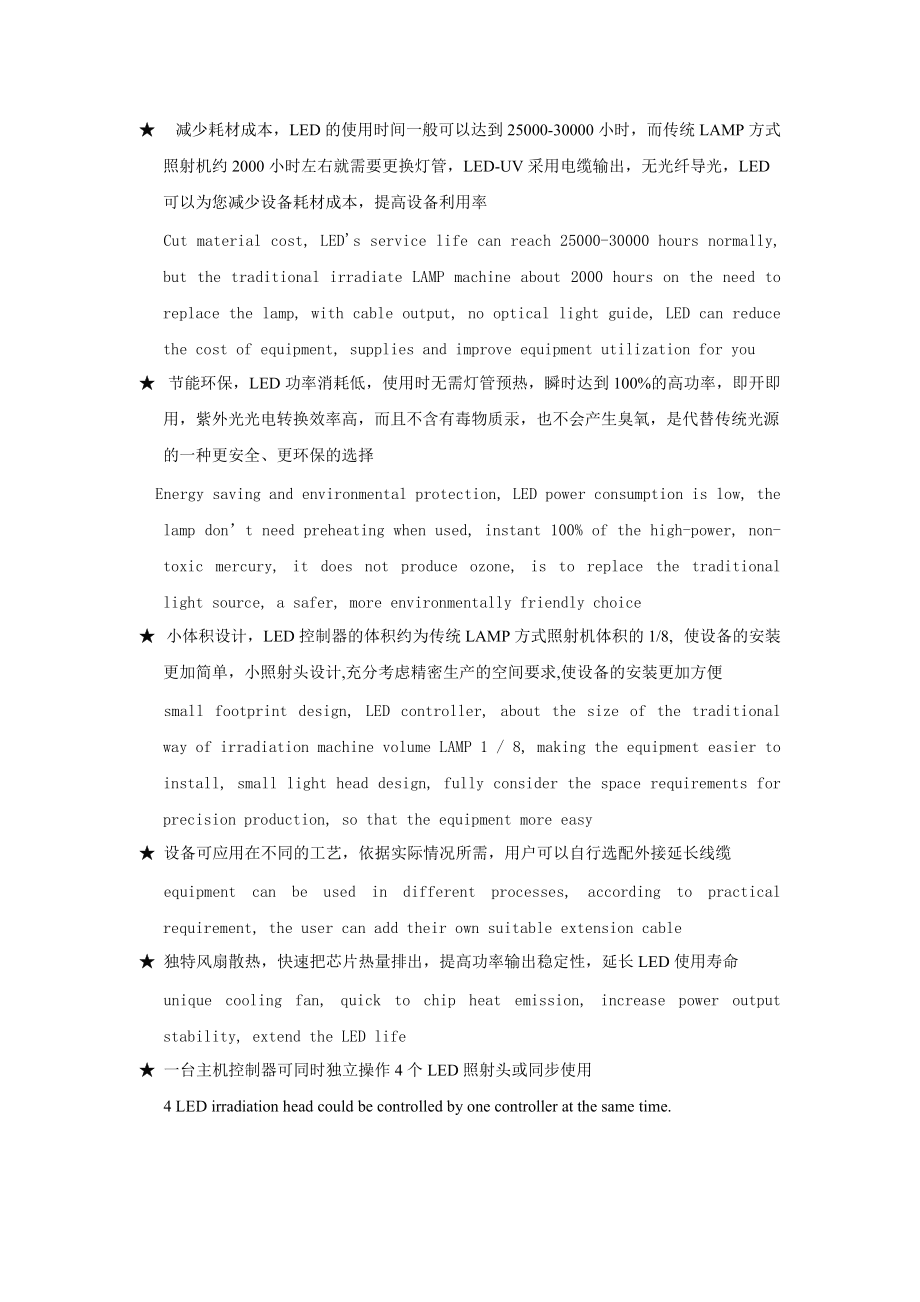

8、ing quickly and significantly improve production efficiency 减少耗材成本，LED的使用时间一般可以达到25000-30000小时，而传统LAMP方式照射机约2000小时左右就需要更换灯管，LED-UV采用电缆输出，无光纤导光，LED可以为您减少设备耗材成本，提高设备利用率 Cut material cost, LED's service life can reach 25000-30000 hours normally, but the traditional irradiate LAMP machine about 2000

9、 hours on the need to replace the lamp, with cable output, no optical light guide, LED can reduce the cost of equipment, supplies and improve equipment utilization for you 节能环保，LED功率消耗低，使用时无需灯管预热，瞬时达到100%的高功率，即开即用，紫外光光电转换效率高，而且不含有毒物质汞，也不会产生臭氧，是代替传统光源的一种更安全、更环保的选择 Energy saving and environmental prot

10、ection, LED power consumption is low, the lamp dont need preheating when used, instant 100% of the high-power, non-toxic mercury, it does not produce ozone, is to replace the traditional light source, a safer, more environmentally friendly choice 小体积设计，LED控制器的体积约为传统LAMP方式照射机体积的1/8, 使设备的安装更加简单，小照射头设计

11、,充分考虑精密生产的空间要求,使设备的安装更加方便 small footprint design, LED controller, about the size of the traditional way of irradiation machine volume LAMP 1 / 8, making the equipment easier to install, small light head design, fully consider the space requirements for precision production, so that the equipment mor

12、e easy 设备可应用在不同的工艺，依据实际情况所需，用户可以自行选配外接延长线缆 equipment can be used in different processes, according to practical requirement, the user can add their own suitable extension cable 独特风扇散热，快速把芯片热量排出，提高功率输出稳定性，延长LED使用寿命 unique cooling fan, quick to chip heat emission, increase power output stability, exte

13、nd the LED life 一台主机控制器可同时独立操作4个LED照射头或同步使用 4 LED irradiation head could be controlled by one controller at the same time.UV-LED光谱分布图UV-LED spectral distribution UV-LED能量衰减示意图UV-LED attenuation diagramUV-LED光源照射机控制器技术规格TypeHTLD-4UV radiation heads Four（4 LEDs）The size of controller168cmL*100cmW*145m

14、mHTerminal I/OInputPedal switch & serial RS-232 communication signalsOutputserial RS-232 communication signalsCooling method of controllerSemiconductor coolingPower supply voltageAC100240V±10%（50/60HZ）Environmental temperature、humidity-1050 25%85%RHRadiation methodGeneral radiationconstant

15、power radiationMode radiationStep power radiationPedal modePedal controlUV-LED点光源光头规格 UV-LED point lamp-house head specification365nm3W310mwApplicable lens SPOTdiameter3mm4mm6mm8mm10mmIrradiation intensity(mW/cm2) 27,0006,0002,5001,400720Irradiation distance10mm12mm20mm25mm30mmCable length 2m、5m、10m

16、 optionLamp-houseRank 3B LED productionExpectation life of lamp house25,000hours(when the temperature inside the head over 50 degree)Applicable temperature/ humidity range -10502585%RH(No condense brume under25)Cooling methodFan cooling, natural cooling独特风扇散热照射头，适合长时间工作，而温度仅上升几度，单次照射光功率输出更稳定Unique c

17、ooling fan for irradiation head,more competent for long time working,even after long time working, the temperature only go up several degree, single irradiation light power output is more stable. 另有不同波长、不同面积、不同光功率密度的线光源、面光源，特别可定制，更有高功率的UV-LED亟待您的需求召唤。We have line lamp-house,face lamp-house with diff

18、erent wavelength,different area,different light power density. Besides, we have high power UV-LED special for your order made.UV-LED光源照射机主要应用：Application for UV-LED lamp-house irradiation equipment: hard drive head assembly (read-write head of the packaging, gold wire fixed, bearings, coils, chip bo

19、nding, etc.) motors and components assembly (wires, coil fixed, the end of the fixed coil, PTC / NTC component adhesive, to protect transformer core) DVD / digital camera (lenses, lens paste, circuit board reinforcement) sensor production (gas sensors, photoelectric sensors, fiber sensors, optical e
